SKU: FYTB40WF-SKF
SKF FYTB40WF Oval Cast Housing with Grub Screw 40mm Insert
SKF FYTB40WF Oval Cast Housing with Grub Screw 40mm Insert
Regular price
CHF 95.00
ex VAT
Regular price
Sale price
CHF 95.00
ex VAT
In stock
Price Break
10+
CHF 75.04
20+
CHF 70.82
30+
CHF 69.98
40+
CHF 69.14
50+
CHF 68.29
75+
CHF 67.45
100+
CHF 63.24
200+
CHF 62.39
250+
CHF 61.55
500+
CHF 60.71
1000+
CHF 59.02
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Style:
- FYTB
- Bolt Hole Centres:
- 143.5mm

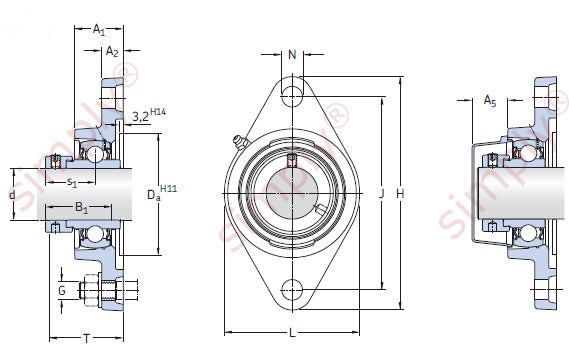

Technical
Technical
| d | 40mm |
|---|---|
| A1 | 38.5mm |
| A2 | 14mm |
| B1 | 56.3mm |
| Da | 88.9mm |
| H | 171.5mm |
| J | 143.5mm |
| L | 102mm |
| N | 14mm |
| G | 12mm |
| s1 | 34.9mm |
| T | 58.9mm |
| Static load Cr | 19 kN |
| Dynamic load Cor | 30.7 kN |
| Fatigue load limit Pu | 0.8 kN |
| Limiting speed | 4800 rpm |
| A5 | 23.5mm |
| Weight | 1.8 kg |
| Compatible end cover closed | ECY208 |
