SKU: FYTB45FM-SKF

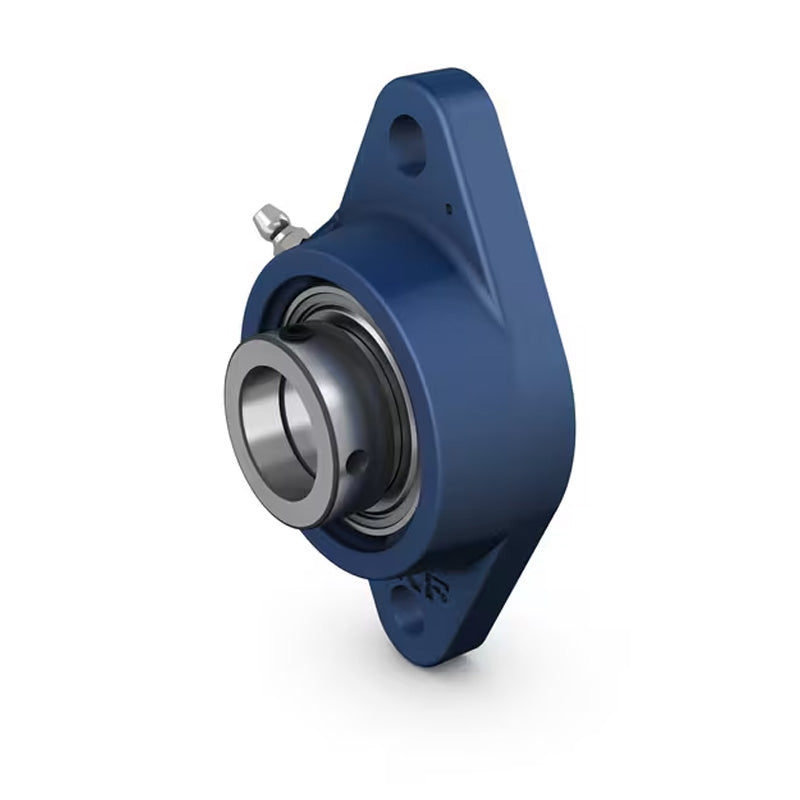

SKF FYTB45FM Oval Cast Housing with Grub Screw 45mm Insert
SKF FYTB45FM Oval Cast Housing with Grub Screw 45mm Insert
Regular price
CHF 97.41
ex VAT
Regular price
Sale price
CHF 97.41
ex VAT
In stock
Price Break
10+
CHF 86.69
19+
CHF 81.82
29+
CHF 80.85
39+
CHF 79.88
49+
CHF 78.90
74+
CHF 77.93
99+
CHF 73.06
199+
CHF 72.08
249+
CHF 71.11
499+
CHF 70.14
999+
CHF 68.19
Couldn't load pickup availability
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Style:
- FYTB
- Bolt Hole Centres:
- 148.5mm
Technical
Technical
| d | 45mm |
|---|---|
| A1 | 39mm |
| A2 | 14mm |
| B1 | 43.7mm |
| Da | 98.4mm |
| H | 178.5mm |
| J | 148.5mm |
| L | 111mm |
| N | 16mm |
| G | 14mm |
| s1 | 32.7mm |
| T | 56.7mm |
| Static load Cr | 21.6 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit Pu | 0.915 kN |
| Limiting speed | 4300 rpm |
| A5 | 23mm |
| Weight | 1.85 kg |
| Compatible end cover closed | ECY209 |
