SKU: FYTB50WF-SKF

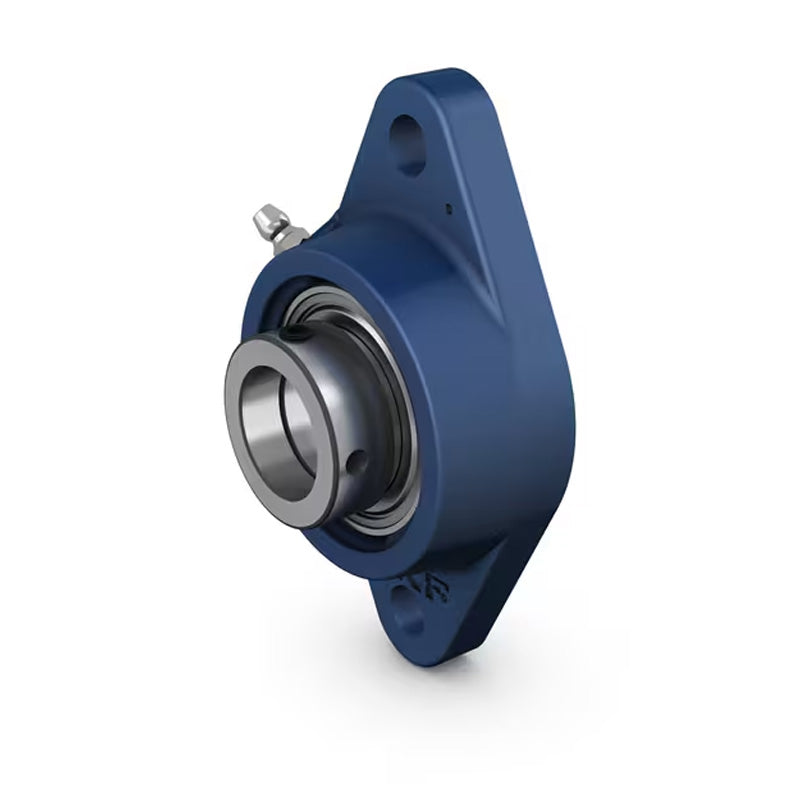

SKF FYTB50WF Oval Cast Housing with Grub Screw 50mm Insert
SKF FYTB50WF Oval Cast Housing with Grub Screw 50mm Insert
Regular price
CHF 126.00
ex VAT
Regular price
Sale price
CHF 126.00
ex VAT
In stock
Price Break
10+
CHF 100.22
20+
CHF 94.59
30+
CHF 93.47
40+
CHF 92.34
50+
CHF 91.21
75+
CHF 90.09
100+
CHF 84.46
200+
CHF 83.33
250+
CHF 82.20
500+
CHF 81.08
1000+
CHF 78.83
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Style:
- FYTB
- Bolt Hole Centres:
- 157mm
Technical
Technical
| d | 50mm |
|---|---|
| A1 | 43mm |
| A2 | 15mm |
| B1 | 62.7mm |
| Da | 101.6mm |
| H | 189mm |
| J | 157mm |
| L | 116mm |
| N | 18mm |
| G | 16mm |
| s1 | 38.1mm |
| T | 66.1mm |
| Static load Cr | 23.2 kN |
| Dynamic load Cor | 35.1 kN |
| Fatigue load limit Pu | 0.98 kN |
| Limiting speed | 4000 rpm |
| A5 | 29.5mm |
| Weight | 2.35 kg |
| Compatible end cover closed | ECY210 |
