SKU: FYTBK20TF-SKF

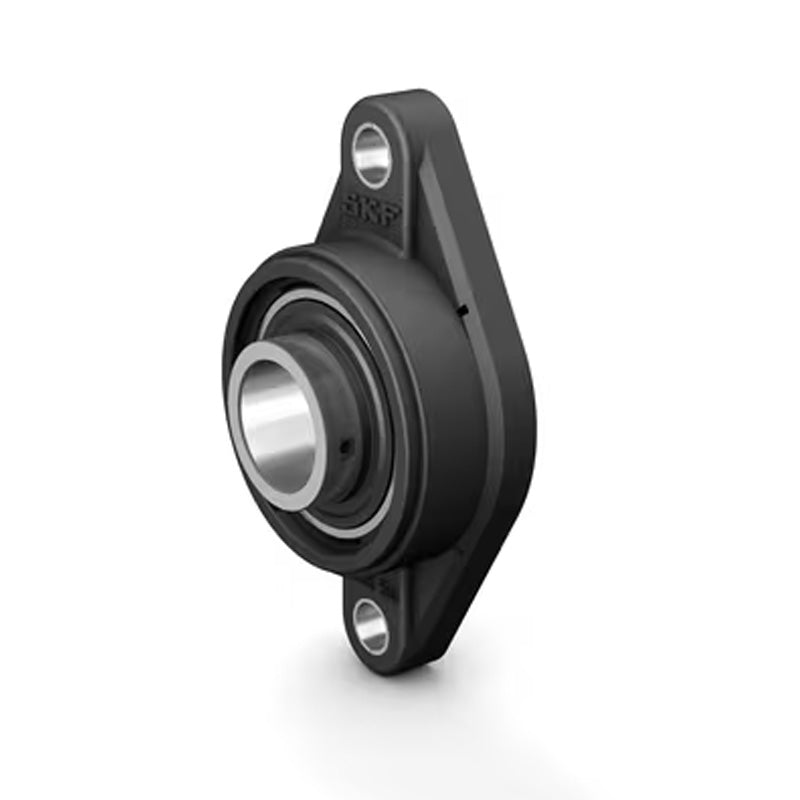

SKF FYTBK20TF Composite Oval Housing with Grub Screw 20mm Insert
SKF FYTBK20TF Composite Oval Housing with Grub Screw 20mm Insert
Regular price
CHF 37.00
ex VAT
Regular price
Sale price
CHF 37.00
ex VAT
In stock
Price Break
10+
CHF 29.18
20+
CHF 27.55
30+
CHF 27.22
40+
CHF 26.89
50+
CHF 26.56
75+
CHF 26.23
100+
CHF 24.59
200+
CHF 24.27
250+
CHF 23.94
500+
CHF 23.61
1000+
CHF 22.95
Description
Description
| SKF Oval Flanged Y-TECH Units with Grub Screws: These units have housings made of composite material. They were developed for bearing arrangements that must operate reliably in difficult environments for extended periods of time without maintenance. This unit has an oval flange and two bolt holes. The FYK series units are fitted with Y-bearings in the YAR 2-2F series where the unit designation has the TF suffix, and YAR 2-2RF series where the unit designation has the TR suffix. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Style:
- FYTBK
- Bolt Hole Centres:
- 90mm
Technical
Technical
| d | 20mm |
|---|---|
| A1 | 29.5mm |
| A2 | 15mm |
| B | 31mm |
| Da | 50.8mm |
| H | 112mm |
| J | 90mm |
| L | 60.5mm |
| N | 12mm |
| G | 10mm |
| s1 | 18.3mm |
| T | 37.3mm |
| Static load Cr | 6.55 kN |
| Dynamic load Cor | 12.7 kN |
| Fatigue load limit Pu | 0.28 kN |
| Limiting speed | 8500 rpm |
| A5 | 18.5mm |
| Weight | 0.24 kg |
| Compatible end cover closed | ECY204 |
