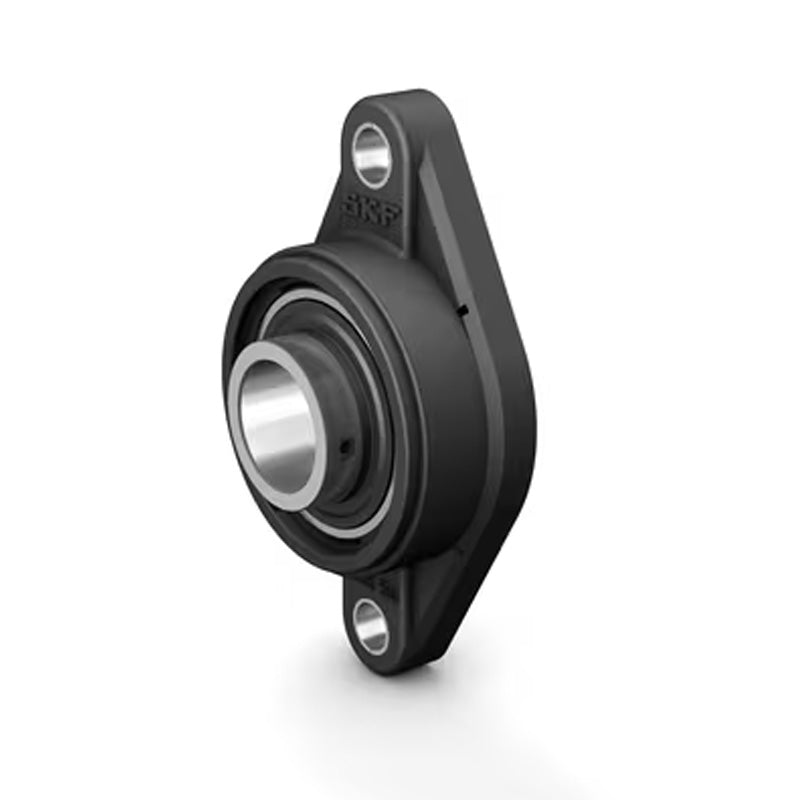

SKF FYTBK30TF Composite Oval Housing with Grub Screw 30mm Insert
SKF FYTBK30TF Composite Oval Housing with Grub Screw 30mm Insert
Regular price
CHF 53.00
ex VAT
Regular price
Sale price
CHF 53.00
ex VAT
In stock
Price Break
10+
CHF 41.62
20+
CHF 39.28
30+
CHF 38.82
40+
CHF 38.35
50+
CHF 37.88
75+
CHF 37.41
100+
CHF 35.08
200+
CHF 34.61
250+
CHF 34.14
500+
CHF 33.67
1000+
CHF 32.74
Description
Description
| SKF Oval Flanged Y-TECH Units with Grub Screws: These units have housings made of composite material. They were developed for bearing arrangements that must operate reliably in difficult environments for extended periods of time without maintenance. This unit has an oval flange and two bolt holes. The FYK series units are fitted with Y-bearings in the YAR 2-2F series where the unit designation has the TF suffix, and YAR 2-2RF series where the unit designation has the TR suffix. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Style:
- FYTBK
- Bolt Hole Centres:
- 116.5mm
Technical
Technical

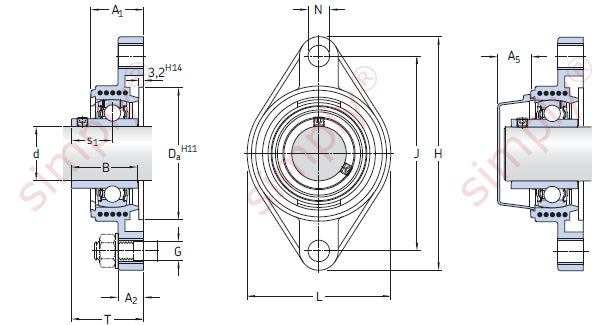

| d | 30mm |
|---|---|
| A1 | 33mm |
| A2 | 15mm |
| B | 38.1mm |
| Da | 76.2mm |
| H | 142.5mm |
| J | 116.5mm |
| L | 83mm |
| N | 12mm |
| G | 10mm |
| s1 | 22.2mm |
| T | 42.2mm |
| Static load Cr | 11.2 kN |
| Dynamic load Cor | 19.5 kN |
| Fatigue load limit Pu | 0.475 kN |
| Limiting speed | 6300 rpm |
| A5 | 20mm |
| Weight | 0.44 kg |
| Compatible end cover closed | ECY206 |
