SKU: FYTJ25KF-SKF

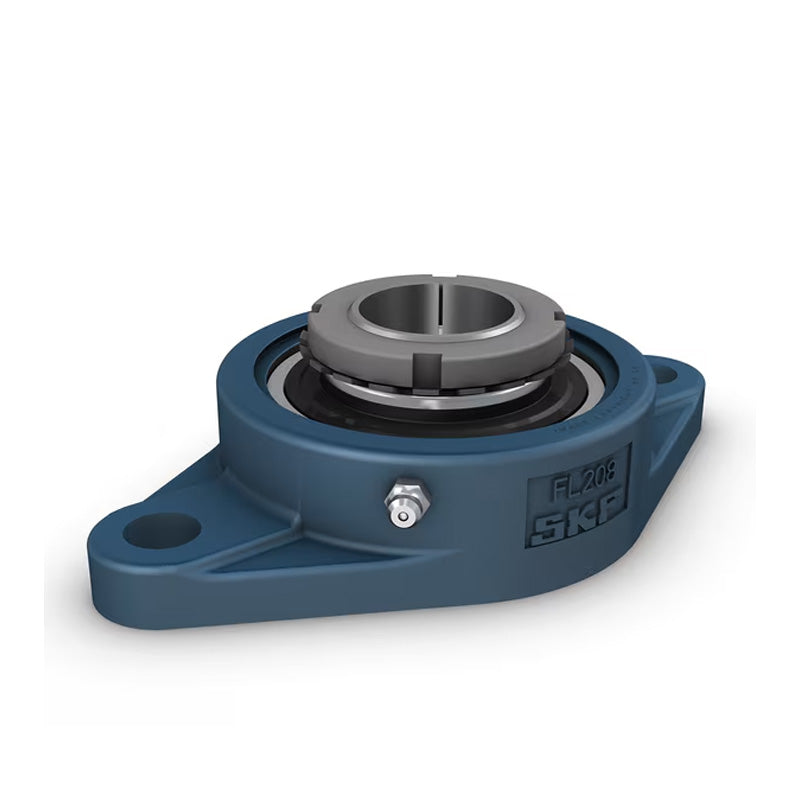

SKF FYTJ25KF Flanged Unit with an Oval Cast Housing with 20mm Insert
SKF FYTJ25KF Flanged Unit with an Oval Cast Housing with 20mm Insert
Regular price
CHF 54.98
ex VAT
Regular price
Sale price
CHF 54.98
ex VAT
In stock
Price Break
10+
CHF 48.93
19+
CHF 46.18
29+
CHF 45.63
39+
CHF 45.08
49+
CHF 44.53
74+
CHF 43.98
99+
CHF 41.24
199+
CHF 40.69
249+
CHF 40.14
499+
CHF 39.59
999+
CHF 38.49
Couldn't load pickup availability
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Adapter Sleeve: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Note: The appropriate adapter sleeve is not part of the bearing and must be ordered separately. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Style:
- FYTJ
- Bolt Hole Centres:
- 99mm

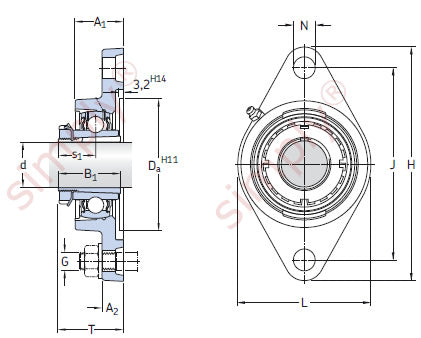

Technical
Technical
| d | 20mm |
|---|---|
| A1 | 27mm |
| A2 | 14mm |
| B1 | 35mm |
| Da | 63.5mm |
| H | 130mm |
| J | 99mm |
| L | 68mm |
| N | 16mm |
| G | 14mm |
| s1 | 20mm |
| T | 36mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit Pu | 0.335 kN |
| Limiting speed | 7000 rpm |
| Weight | 0.72 kg |
