SKU: FYTJ25TF-SKF

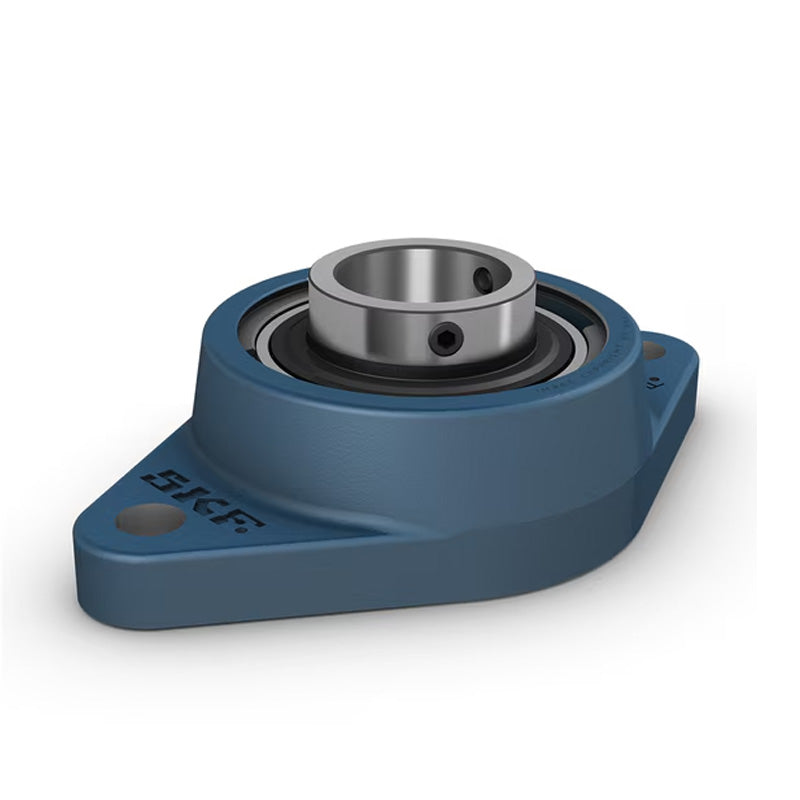

SKF FYTJ25TF Oval Cast Housing with Grub Screw 25mm Insert
SKF FYTJ25TF Oval Cast Housing with Grub Screw 25mm Insert
Regular price
CHF 47.61
ex VAT
Regular price
Sale price
CHF 47.61
ex VAT
In stock
Price Break
10+
CHF 42.37
19+
CHF 39.99
29+
CHF 39.52
39+
CHF 39.04
49+
CHF 38.56
74+
CHF 38.09
99+
CHF 35.71
199+
CHF 35.23
249+
CHF 34.76
499+
CHF 34.28
999+
CHF 33.33
Couldn't load pickup availability
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Style:
- FYTJ
- Bolt Hole Centres:
- 99mm
Technical
Technical
| d | 25mm |
|---|---|
| A1 | 27mm |
| A2 | 14mm |
| B | 34.1mm |
| Da | 63.5mm |
| H | 130mm |
| J | 99mm |
| L | 68mm |
| N | 16mm |
| G | 14mm |
| s1 | 19.8mm |
| T | 35.8mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit Pu | 0.335 kN |
| Limiting speed | 7000 rpm |
| Weight | 0.58 kg |
