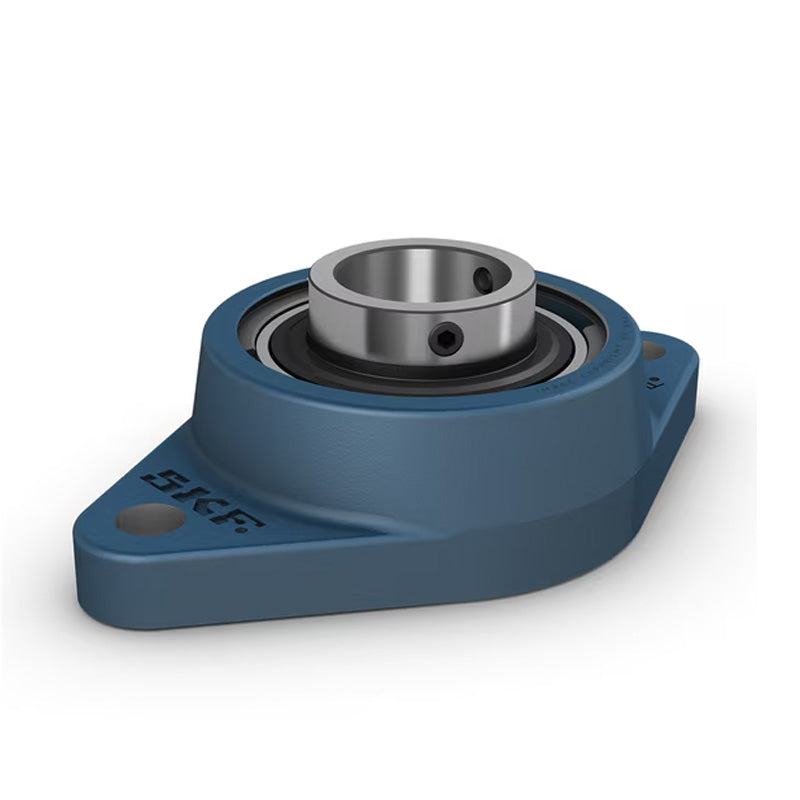

• SKF FYTJ35TF Oval Cast Housing with Grub Screw 35mm Insert
1 1

SKU: FYTJ35TF-SKF

SKF FYTJ35TF Oval Cast Housing with Grub Screw 35mm Insert

SKF FYTJ35TF Oval Cast Housing with Grub Screw 35mm Insert
CHF 69.00 ex VAT
CHF 69.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 54.97
20+ CHF 51.89
30+ CHF 51.27
40+ CHF 50.65
50+ CHF 50.03
75+ CHF 49.42
100+ CHF 46.33
200+ CHF 45.71
250+ CHF 45.09
500+ CHF 44.47
1000+ CHF 43.24
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Oval Flanged Y-bearing Units with Cast Housing: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads.
Benefits: Grease fitting allows re-lubrication
Brand / Quality:
SKF - High Quality
Inside Diameter:
35mm
Style:
FYTJ
Bolt Hole Centres:
130mm
Technical
d 35mm
A1 34mm
A2 16mm
B 42.9mm
Da 88.9mm
H 161mm
J 130mm
L 96mm
N 16mm
G 14mm
s1 25.4mm
T 44.4mm
Static load Cr 15.3 kN
Dynamic load Cor 25.5 kN
Fatigue load limit Pu 0.655 kN
Limiting speed 5300 rpm
Weight 1.15 kg
