SKU: FYTJ40KF-SKF

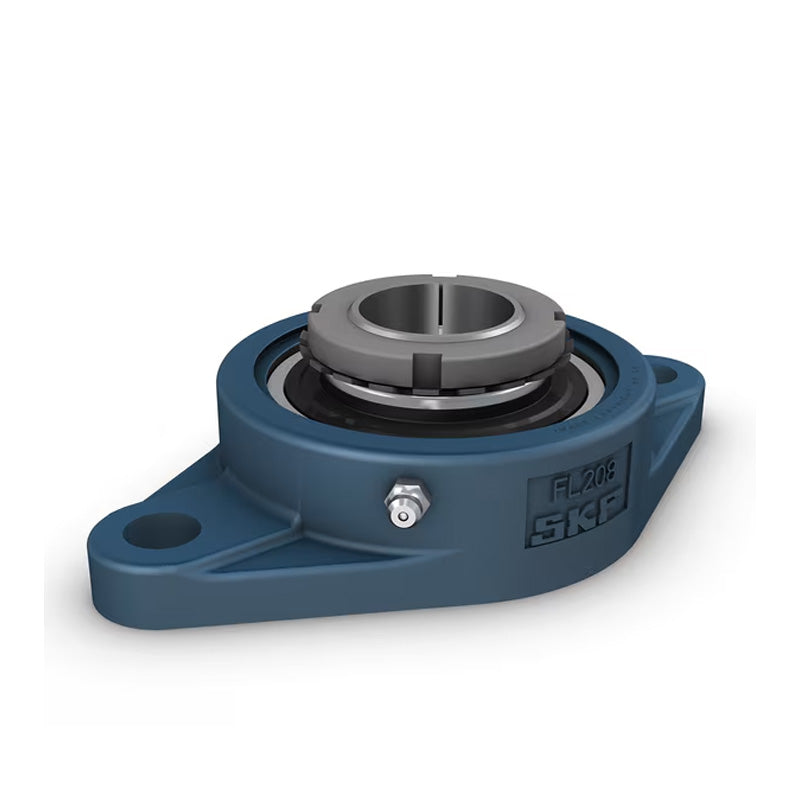

SKF FYTJ40KF Flanged Unit with an Oval Cast Housing with 35mm Insert
SKF FYTJ40KF Flanged Unit with an Oval Cast Housing with 35mm Insert
Regular price
CHF 89.00
ex VAT
Regular price
Sale price
CHF 89.00
ex VAT
In stock
Price Break
10+
CHF 70.86
20+
CHF 66.88
30+
CHF 66.08
40+
CHF 65.29
50+
CHF 64.49
75+
CHF 63.70
100+
CHF 59.72
200+
CHF 58.92
250+
CHF 58.12
500+
CHF 57.33
1000+
CHF 55.73
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Adapter Sleeve: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Note: The appropriate adapter sleeve is not part of the bearing and must be ordered separately. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Style:
- FYTJ
- Bolt Hole Centres:
- 144mm
Technical
Technical
| d | 35mm |
|---|---|
| A1 | 36mm |
| A2 | 16mm |
| B1 | 46mm |
| Da | 88.9mm |
| H | 175mm |
| J | 144mm |
| L | 100mm |
| N | 16mm |
| G | 14mm |
| s1 | 27mm |
| T | 48mm |
| Static load Cr | 19 kN |
| Dynamic load Cor | 30.7 kN |
| Fatigue load limit Pu | 0.8 kN |
| Limiting speed | 4800 rpm |
| Weight | 1.65 kg |
