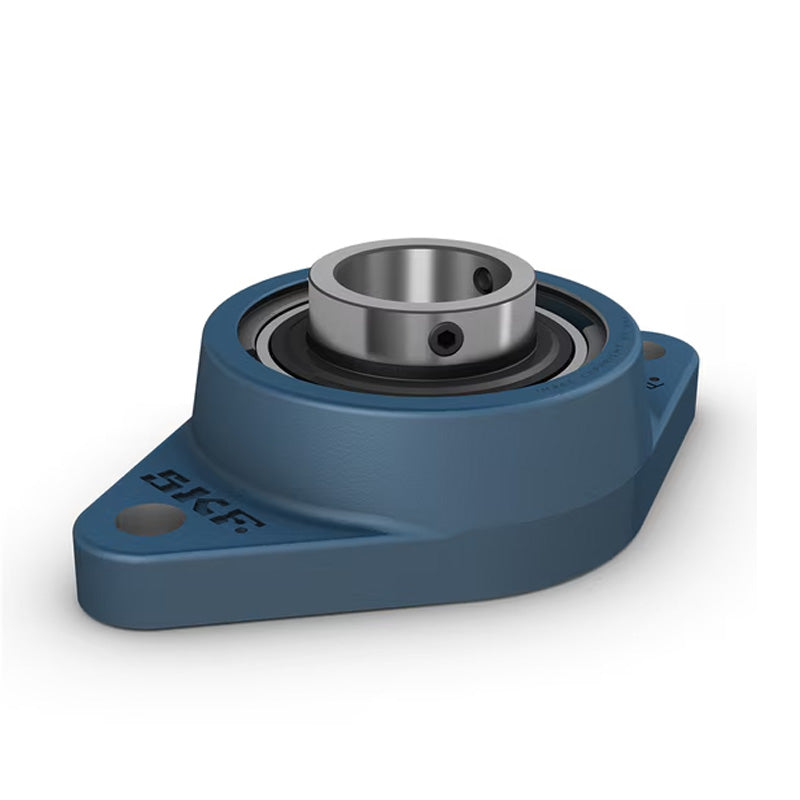

• SKF FYTJ50TF Oval Cast Housing with Grub Screw 50mm Insert
1 1

SKU: FYTJ50TF-SKF

SKF FYTJ50TF Oval Cast Housing with Grub Screw 50mm Insert

SKF FYTJ50TF Oval Cast Housing with Grub Screw 50mm Insert
CHF 61.00 ex VAT
CHF 61.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 48.30
20+ CHF 45.59
30+ CHF 45.04
40+ CHF 44.50
50+ CHF 43.96
75+ CHF 43.42
100+ CHF 40.70
200+ CHF 40.16
250+ CHF 39.62
500+ CHF 39.07
1000+ CHF 37.99
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Oval Flanged Y-bearing Units with Cast Housing: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads.
Benefits: Grease fitting allows re-lubrication
Brand / Quality:
SKF - High Quality
Inside Diameter:
50mm
Style:
FYTJ
Bolt Hole Centres:
157mm

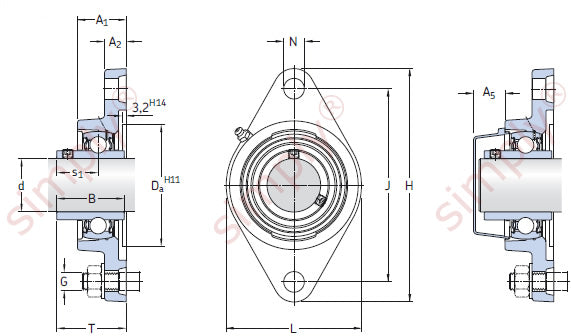

Technical
d 50mm
A1 40mm
A2 18mm
B 51.6mm
Da 101.6mm
H 195mm
J 157mm
L 115mm
N 19mm
G 16mm
s1 32.6mm
T 54.6mm
Static load Cr 23.2 kN
Dynamic load Cor 35.1 kN
Fatigue load limit Pu 0.98 kN
Limiting speed 4000 rpm
Weight 3.1 kg
