SKU: FYTWK25YTH-SKF

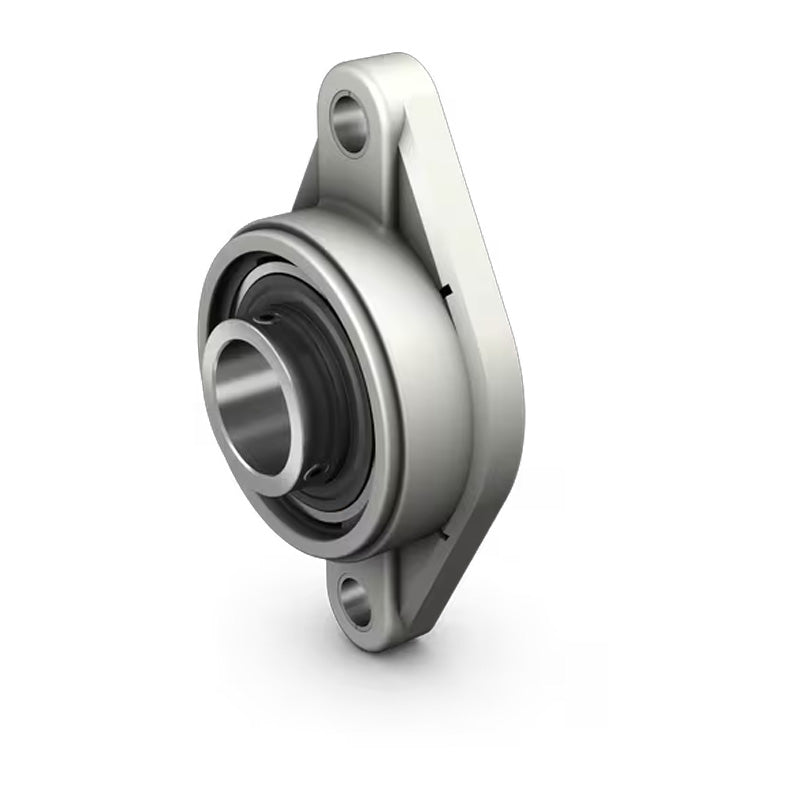

SKF FYTWK25YTH Composite Oval Housing with Grub Screw 25mm Insert
SKF FYTWK25YTH Composite Oval Housing with Grub Screw 25mm Insert
Regular price
CHF 123.00
ex VAT
Regular price
Sale price
CHF 123.00
ex VAT
In stock
Price Break
4+
CHF 97.32
9+
CHF 91.85
19+
CHF 90.76
29+
CHF 89.66
39+
CHF 88.57
49+
CHF 87.48
59+
CHF 82.01
69+
CHF 80.92
79+
CHF 79.82
89+
CHF 78.73
99+
CHF 76.54
Share this product
Description
Description
SKF Oval Flanged Y-bearing Units for the Food Industry: The housing of this unit is made of a chemical and corrosion resistant composite material which is designed to withstand frequent washdowns. The non-porous surface resists the accumulation of bacteria-forming food particles and the light-grey colour makes visual inspection easy.
Benefits: Designed for the food industry, lubricated with food-grade grease, optimised for handling shock loads and high vibration levels.
Benefits: Designed for the food industry, lubricated with food-grade grease, optimised for handling shock loads and high vibration levels.
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Style:
- FYTWK
- Bolt Hole Centres:
- 99mm
Technical
Technical

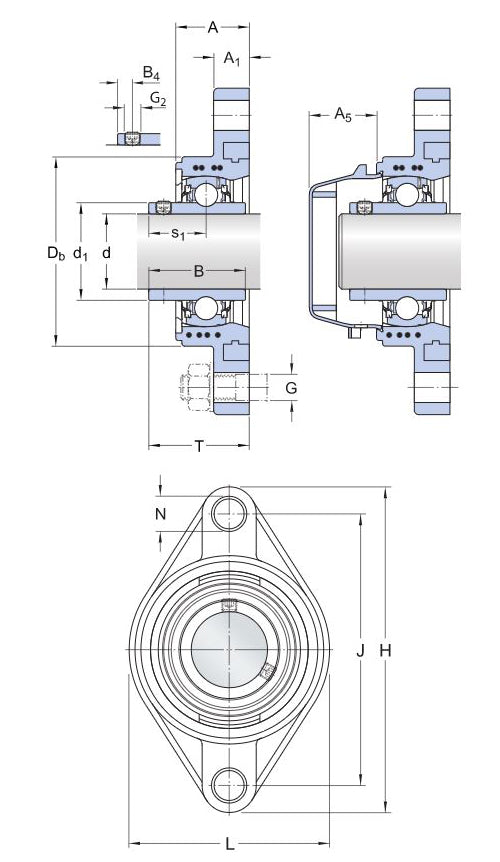

| d | 25mm |
|---|---|
| d1 | 33.74mm |
| A | 30mm |
| A1 | 15mm |
| A5 | 26mm |
| B | 34.1mm |
| B4 | 5mm |
| Db | 65mm |
| H | 124mm |
| J | 99mm |
| L | 70mm |
| N | 12.3mm |
| s1 | 19.8mm |
| T | 38.8mm |
| Basic Dynamic Load Rating | 11.9 kN |
| Basic Static Load Rating | 7.8 kN |
| Fatigue load limit | 0.335 kN |
| Limiting Speed | 4300 r/min |
| Weight | 0.3 kg |
