SKU: G1/8-KF

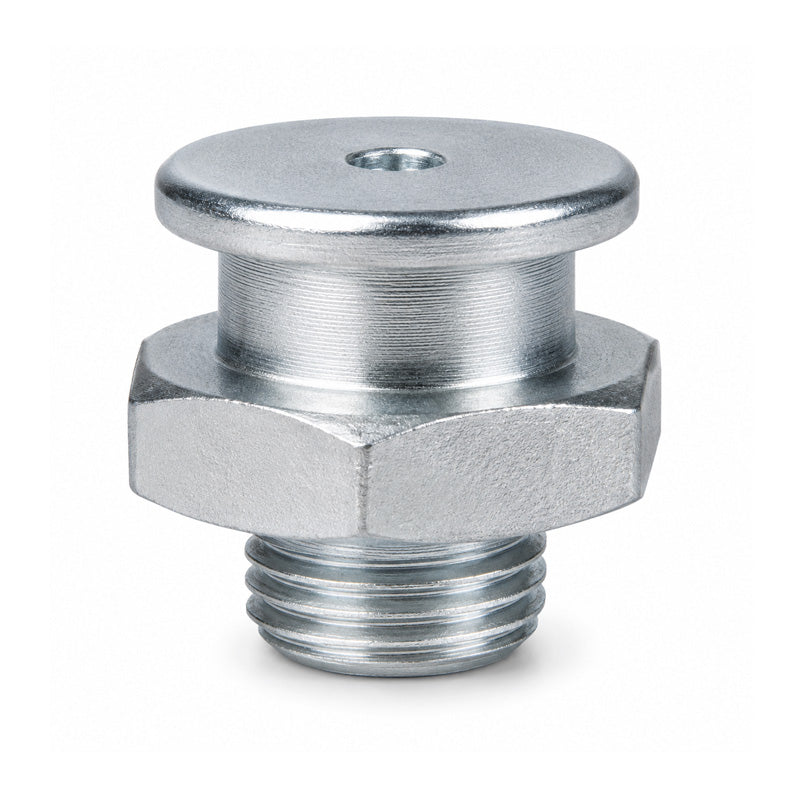

G1/8 BSP DIN 16mm Hardened Mild Steel Zinc Plated White Straight Button Head Grease Fittings - Pack of 500
G1/8 BSP DIN 16mm Hardened Mild Steel Zinc Plated White Straight Button Head Grease Fittings - Pack of 500
Regular price
CHF 231.00
ex VAT
Regular price
Sale price
CHF 231.00
ex VAT
In stock
Price Break
10+
CHF 183.89
19+
CHF 173.56
29+
CHF 171.49
39+
CHF 169.43
49+
CHF 167.36
74+
CHF 165.29
99+
CHF 154.96
199+
CHF 152.90
249+
CHF 150.83
499+
CHF 148.76
999+
CHF 144.63
Description
Description
Button Head Grease Fittings: Kingfisher superior button head fittings are manufactured from a high quality mild steel and are case hardened to prevent wear on the head profile. Amongst our range of button head fittings there are fittings of different sizes and also thread types.
Benefits: Corrosion resistance, large range available, cost effective.
Benefits: Corrosion resistance, large range available, cost effective.
- Brand / Quality:
- Kingfisher - High Quality
- Thread Size:
- BSP G1/8
- Thread Length:
- 5.84mm = 0.23 inch
- Length:
- 16.76mm = 0.66 inch
- Angle:
- Straight
Technical
Technical
| --- | BSP Thread (British Standard Pipe) |
|---|---|
| Recommended To Fit | BSP G1/8 |
| Total Length A | 16.76mm = 0.66 inch |
| Thread Length B | 5.84mm = 0.23 inch |
| Nipple Angle | Straight |
| Required Tool Size (Hex Size) | 17mm |
| Colour | White |
| Weight | 0.018 kg |
