SKU: GA12-FLURO

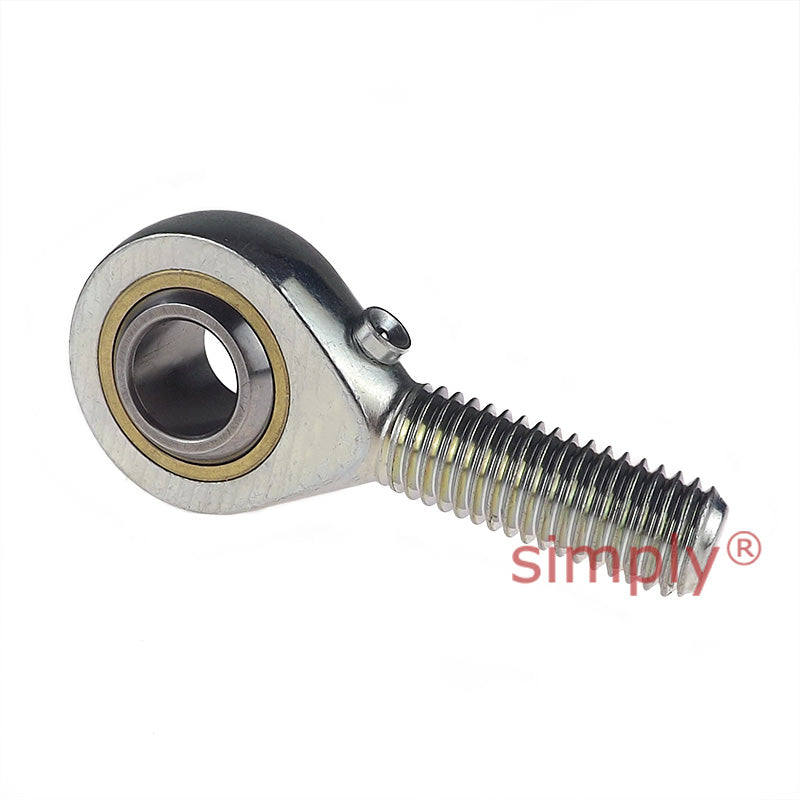

Fluro GA12 Right Hand Steel / Brass Male Plain Rod End M12 Thread
Fluro GA12 Right Hand Steel / Brass Male Plain Rod End M12 Thread
Regular price
CHF 22.11
ex VAT
Regular price
Sale price
CHF 22.11
ex VAT
In stock
Price Break
10+
CHF 19.68
19+
CHF 18.57
29+
CHF 18.35
39+
CHF 18.13
49+
CHF 17.91
74+
CHF 17.69
99+
CHF 16.58
199+
CHF 16.36
249+
CHF 16.14
499+
CHF 15.92
999+
CHF 15.48
Couldn't load pickup availability
Description
Description
Fluro GA Series Steel / Brass Maintenance Required Male Plain Rod Ends: Rod Ends with male thread made from free-cutting or heat-treated steel. Zinc plated and fitted with a grease nipple. Especially suited for axial loads.
Benefits: Grease nipple for easy re-greasing
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M12
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Thread Length:
- 12mm
- Inside Diameter:
- 12mm
- Material:
- Steel / Brass
Technical
Technical
| Bore Size D | 12mm |
|---|---|
| B | 16mm |
| M | 12mm |
| A | 32mm |
| F | 57mm |
| L | 70mm |
| O | 15.4mm |
| Thread Size G | M12 |
| GL | 32mm |
| Static Load Co | 25.5kN |
| Dynamic Load | 10kN |
| Limiting Speed | 450rev/min |
| Approx weight | 0.087kg |
