SKU: GAS12-FLURO

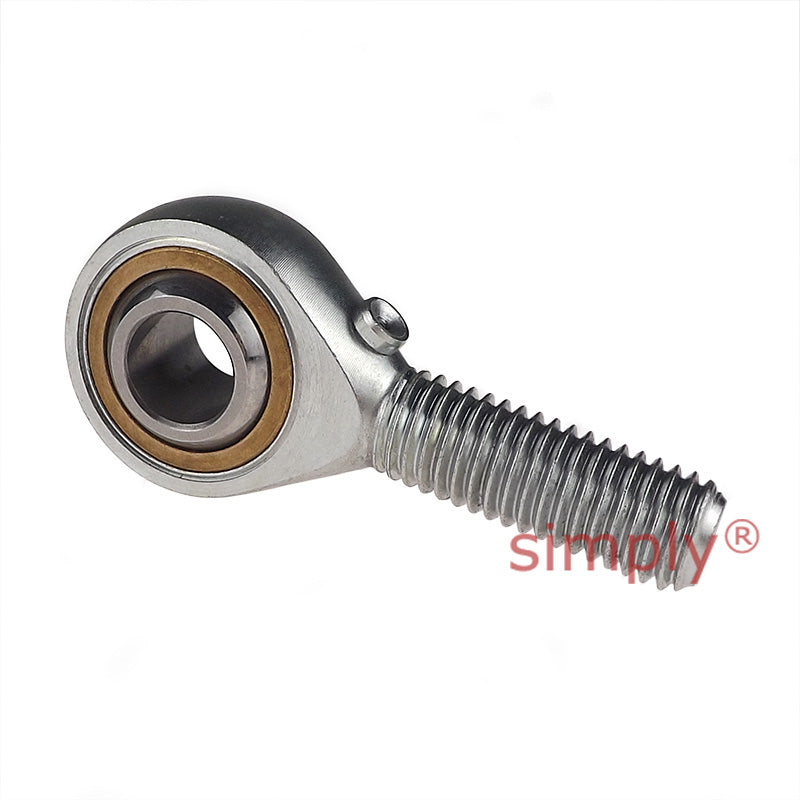

Fluro GAS12 Right Hand Steel / Bronze Male Plain Rod End M12 Thread
Fluro GAS12 Right Hand Steel / Bronze Male Plain Rod End M12 Thread
Regular price
CHF 31.24
ex VAT
Regular price
Sale price
CHF 31.24
ex VAT
In stock
Price Break
10+
CHF 27.80
19+
CHF 26.24
29+
CHF 25.93
39+
CHF 25.62
49+
CHF 25.30
74+
CHF 24.99
99+
CHF 23.43
199+
CHF 23.12
249+
CHF 22.81
499+
CHF 22.49
999+
CHF 21.87
Couldn't load pickup availability
Description
Description
Fluro GAS Series Steel / Bronze Maintenance Required Male Plain Rod Ends: Rod Ends with male thread made from free-cutting or heat-treated steel, zinc plated and fitted with a grease nipple. Especially suited for high speed applications.
Benefits: Grease nipple for easy re-greasing
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M12
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Thread Length:
- 12mm
- Inside Diameter:
- 12mm
- Material:
- Steel / Bronze
Technical
Technical
| Bore Size D | 12mm |
|---|---|
| B | 16mm |
| M | 12mm |
| A | 32mm |
| F | 54mm |
| L | 70mm |
| O | 15.4mm |
| Thread Size G | M12 |
| GL | 32mm |
| Static Load Co | 23.5kN |
| Dynamic Load | 13.5kN |
| Limiting Speed | 860rev/min |
| Approx weight | 0.087kg |
