SKU: GE100ES-2RS-SKF
SKF GE100ES2RS Double Sealed Spherical Plain Bearing 100x150x55x70mm
SKF GE100ES2RS Double Sealed Spherical Plain Bearing 100x150x55x70mm
Regular price
CHF 304.00
ex VAT
Regular price
Sale price
CHF 304.00
ex VAT
In stock
Price Break
10+
CHF 241.86
19+
CHF 228.28
29+
CHF 225.56
39+
CHF 222.84
49+
CHF 220.12
74+
CHF 217.41
99+
CHF 203.82
199+
CHF 201.10
249+
CHF 198.38
499+
CHF 195.67
999+
CHF 190.23
Description
Description
|

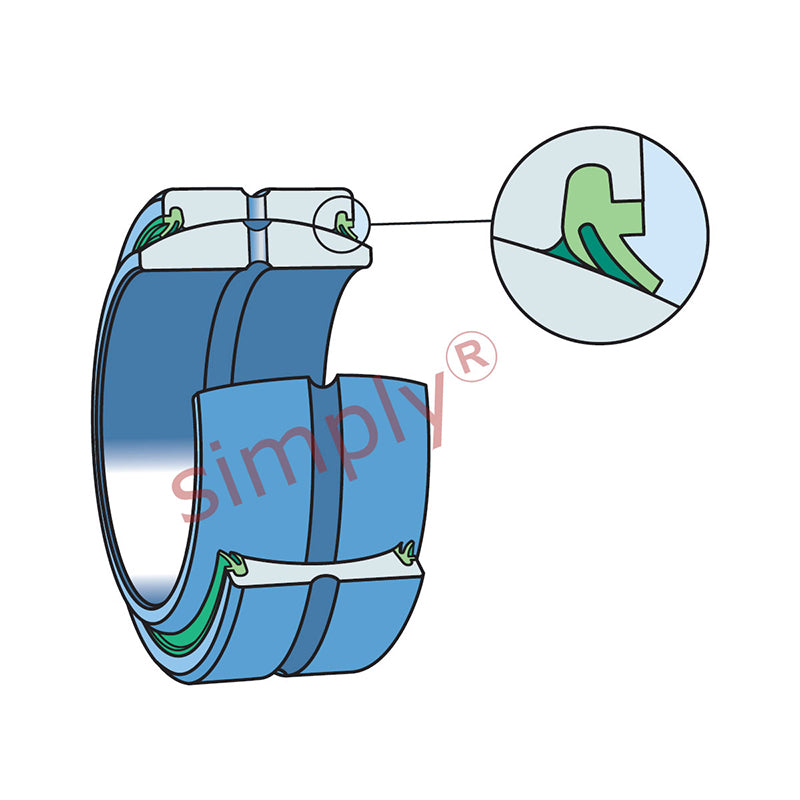

SKF GE..ES-2RS Series Spherical Plain Bearings: This series is classed as radial spherical plain bearings requiring maintenance. Comprising of sliding contact surfaces of steel against steel these spherical plain bearings are double lip sealed to prevent ingress of dirt and moisture and require maintenance from time to time in the form of re-lubrication via an annular lubrication groove around its outer and inner rings. Dependent on installation design the lubricant may be passed through the housing or spindle directly into the bearing at any point around the groove which has small holes to direct the lubricant onto the mating surfaces. These are metric sized spherical plain bearings. The bearings are manganese phosphated and the sliding contact surface is then treated with a running-in lubricant. This reduces friction and wear during the running-in period. Application: Suitable for heavy static, shock or alternating loads. A characteristic of SKF steel / steel spherical plain bearings is the intentionally fractured outer ring enabling it to be sprung apart to insert the ball, thus care needs to be taken when mounting spherical plain bearings with a fractured or split outer ring, it is essential that the joint is positioned at 90 degrees to the direction of load Benefits: Re-lubricate-able, double sealed. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 150mm
- Width:
- 70mm
Technical
Technical
| d | 100mm |
|---|---|
| D | 150mm |
| B | 70mm |
| C | 55mm |
| Max misalignment angle | 7 degrees |
| Dynamic load | 607 kN |
| Static load | 3030 kN |
| dk | 130mm |
| b | 11.3mm |
| b1 | 11.3mm |
| M | 5mm |
| r1 min | 1mm |
| r2 min | 1mm |
| da min | 118mm |
| da max | 121mm |
| Da max | 153mm |
| Da min | 133mm |
| ra max | 1mm |
| rb max | 1mm |
| Weight | 4.45 kg |
