SKU: GE15ES.EU

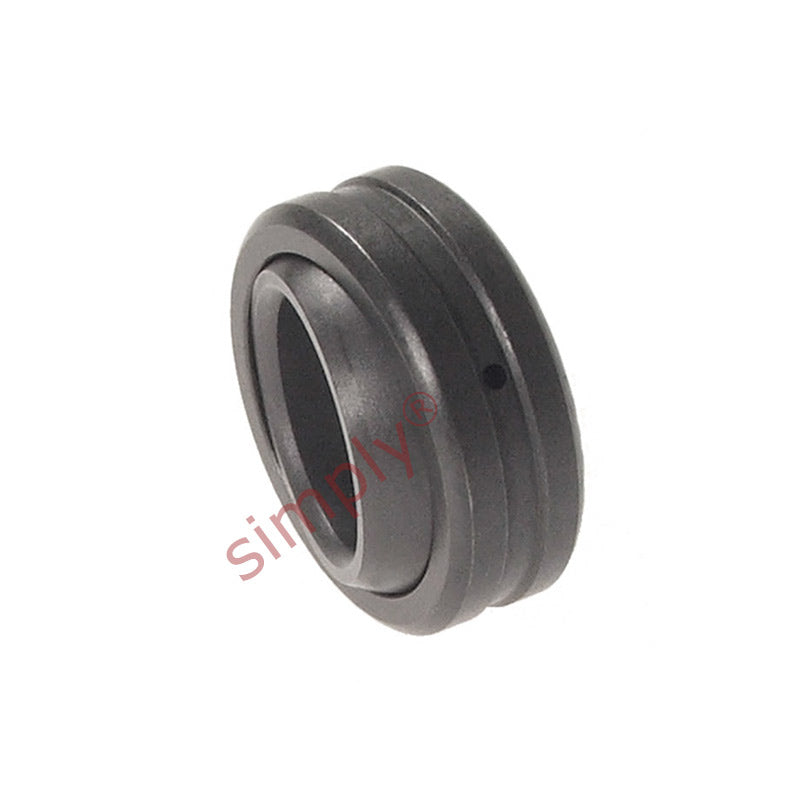

GE15ES Spherical Plain Bearing 15x26x12x9mm
GE15ES Spherical Plain Bearing 15x26x12x9mm
Regular price
CHF 7.00
ex VAT
Regular price
Sale price
CHF 7.00
ex VAT
In stock
Price Break
10+
CHF 5.23
19+
CHF 4.94
29+
CHF 4.88
39+
CHF 4.82
49+
CHF 4.76
74+
CHF 4.71
99+
CHF 4.41
199+
CHF 4.35
249+
CHF 4.29
499+
CHF 4.23
999+
CHF 4.12
Description
Description
|
Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel Note: The outer raceway may have as part of the manufacturing process a split or crack |
- Brand / Quality:
- Simply Spherical Plain - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 26mm
- Width:
- 12mm
Technical
Technical
| d | 15mm |
|---|---|
| D | 26mm |
| B | 12mm |
| C | 9mm |
| dk | 22mm |
| rs min | 0.3mm |
| r1s min | 0.3mm |
| Angle α | 8° |
| Dynamic load Co | 16 kN |
| Static load Cor | 84 kN |
| Weight | 0.027 kg |
