SKU: GE160ES.EU

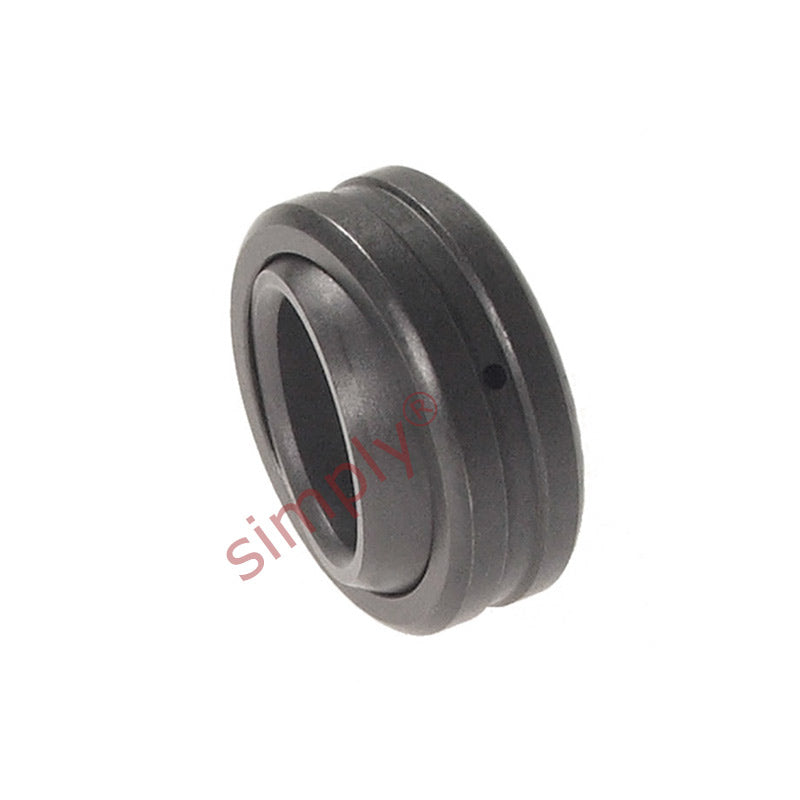

GE160ES Spherical Plain Bearing 160x230x105x80mm
GE160ES Spherical Plain Bearing 160x230x105x80mm
Regular price
CHF 543.21
ex VAT
Regular price
Sale price
CHF 543.21
ex VAT
In stock
Price Break
10+
CHF 483.46
19+
CHF 456.30
29+
CHF 450.86
39+
CHF 445.43
49+
CHF 440.00
74+
CHF 434.57
99+
CHF 407.41
199+
CHF 401.98
249+
CHF 396.54
499+
CHF 391.11
999+
CHF 380.25
Couldn't load pickup availability
Description
Description
|
Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel Note: The outer raceway may have as part of the manufacturing process a split or crack |
- Brand / Quality:
- Simply Spherical Plain - Economy Quality
- Inside Diameter:
- 160mm
- Outside Diameter:
- 230mm
- Width:
- 105mm
Technical
Technical
| d | 160mm |
|---|---|
| D | 230mm |
| B | 105mm |
| C | 80mm |
| dk | 200mm |
| rs min | 1mm |
| r1s min | 1mm |
| Angle α | 8° |
| Dynamic load Co | 1360 kN |
| Static load Cor | 6800 kN |
| Weight | 14.01 kg |
