SKU: GE20-KLL-B-INA

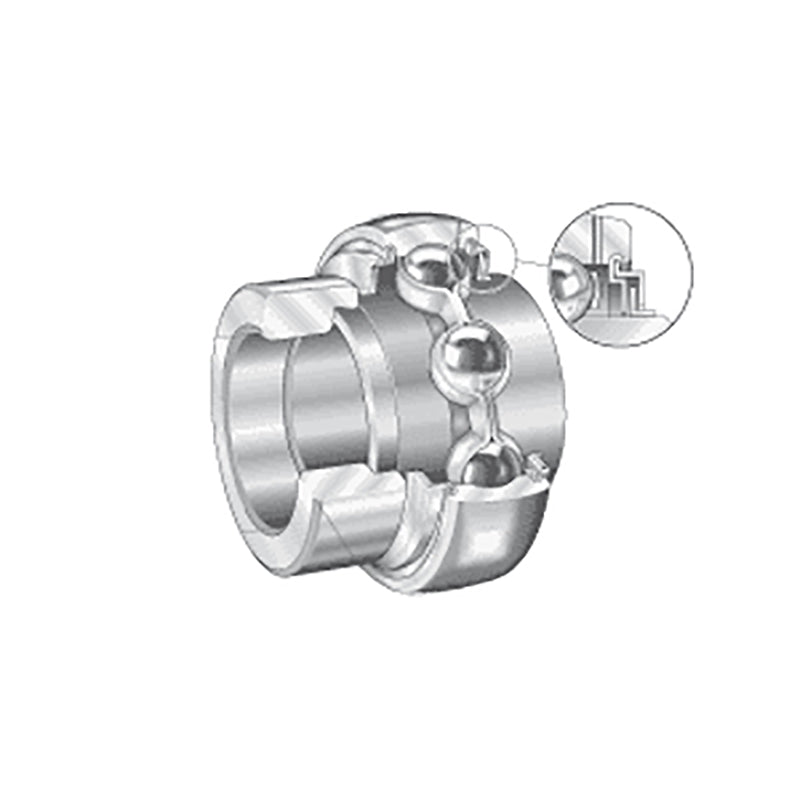

INA GE20XLKLLB Metric Spherical Outer Bearing Insert with L Seals and Eccentric Collar 20x47x43.7mm
INA GE20XLKLLB Metric Spherical Outer Bearing Insert with L Seals and Eccentric Collar 20x47x43.7mm
Regular price
CHF 35.00
ex VAT
Regular price
Sale price
CHF 35.00
ex VAT
In stock
Price Break
3+
CHF 27.37
5+
CHF 25.83
10+
CHF 25.52
15+
CHF 25.22
20+
CHF 24.91
30+
CHF 24.60
40+
CHF 23.06
50+
CHF 22.76
60+
CHF 22.45
75+
CHF 22.14
100+
CHF 21.53
Description
Description
|
INA GE..KLL-B Series Inserts: Bearing insert with spherical outer race, L seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -40 deg C to +180 deg C. Benefits: Can be re-lubricated, compensation of misalignment, wide temperature range. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 43.7mm
Technical
Technical
| d | 20mm |
|---|---|
| Dsp | 47mm |
| B1 | 43.7mm |
| B | 34.1mm |
| C | 14mm |
| C2 | 16.6mm |
| Ca | 4mm |
| D1 | 37.4mm |
| d1 | 27.6mm |
| d3 max | 33mm |
| S | 17.1mm |
| W | 3mm |
| Dynamic load Cr | 12800 N |
| Static load C0r | 6600 N |
| Weight | 0.2 kg |
