SKU: GE20ES.EU

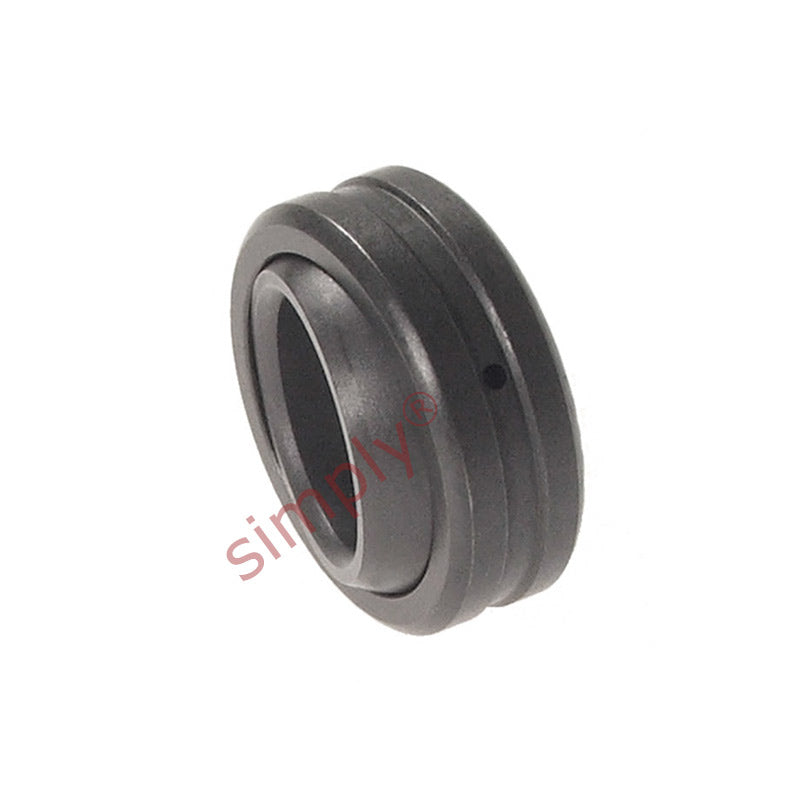

GE20ES Spherical Plain Bearing 20x35x16x12mm
GE20ES Spherical Plain Bearing 20x35x16x12mm
Regular price
CHF 6.60
ex VAT
Regular price
Sale price
CHF 6.60
ex VAT
In stock
Price Break
10+
CHF 5.87
19+
CHF 5.54
29+
CHF 5.48
39+
CHF 5.41
49+
CHF 5.35
74+
CHF 5.28
99+
CHF 4.95
199+
CHF 4.88
249+
CHF 4.82
499+
CHF 4.75
999+
CHF 4.62
Couldn't load pickup availability
Description
Description
|
Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel Note: The outer raceway may have as part of the manufacturing process a split or crack |
- Brand / Quality:
- Simply Spherical Plain - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 35mm
- Width:
- 16mm
Technical
Technical
| d | 20mm |
|---|---|
| D | 35mm |
| B | 16mm |
| C | 12mm |
| dk | 29mm |
| rs min | 0.3mm |
| r1s min | 0.3mm |
| Angle α | 9° |
| Dynamic load Co | 30 kN |
| Static load Cor | 146 kN |
| Weight | 0.066 kg |
