SKU: GE20TXE-2LS-SKF

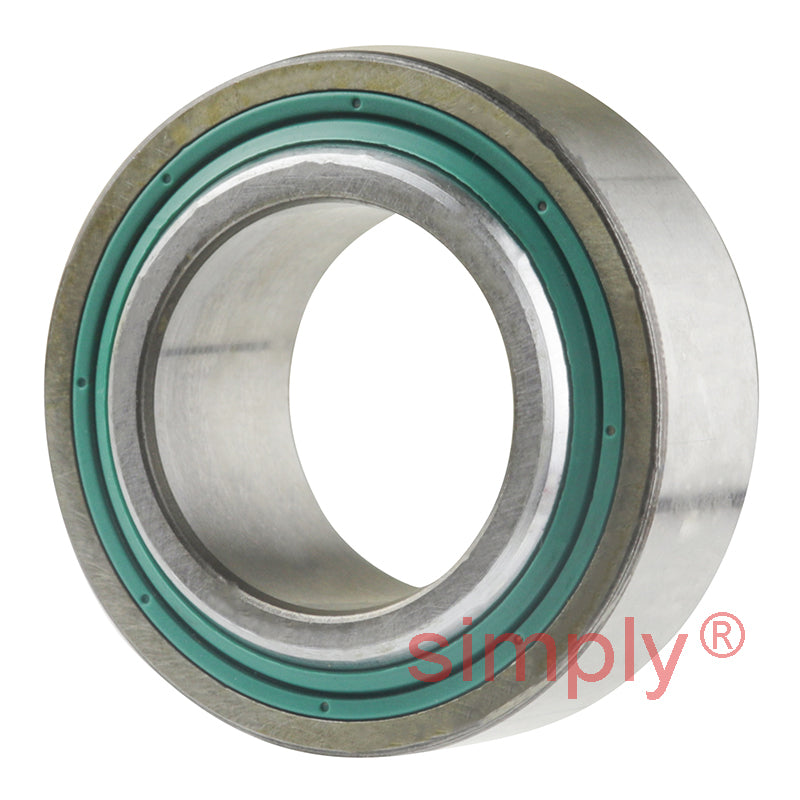

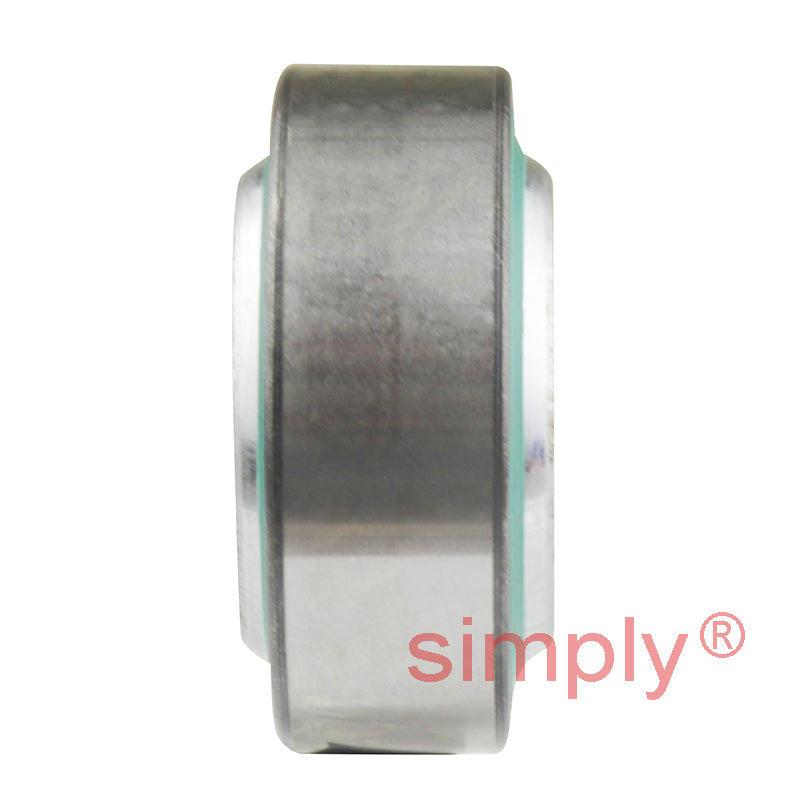

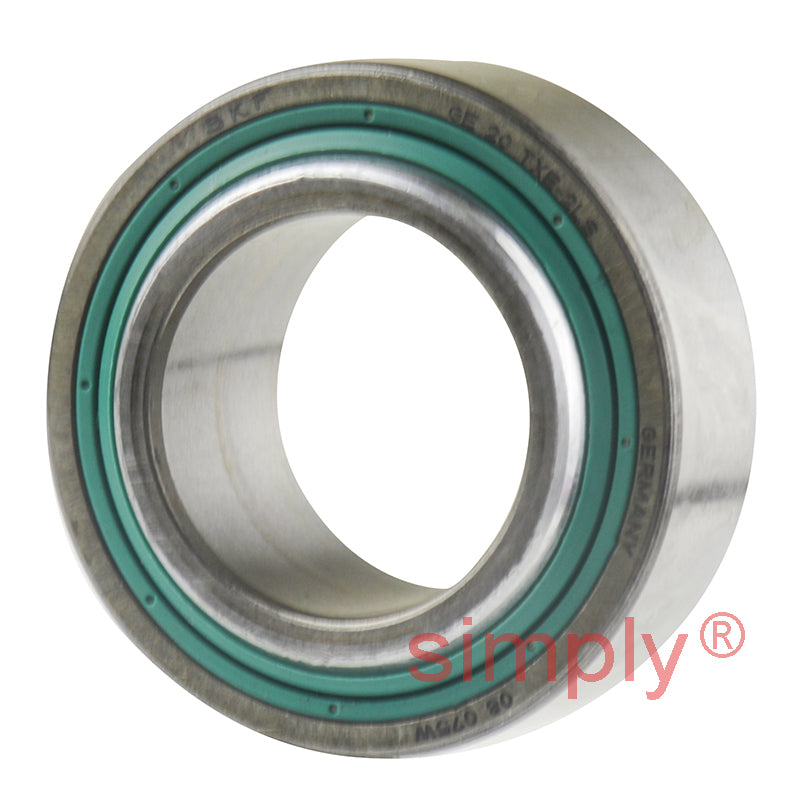

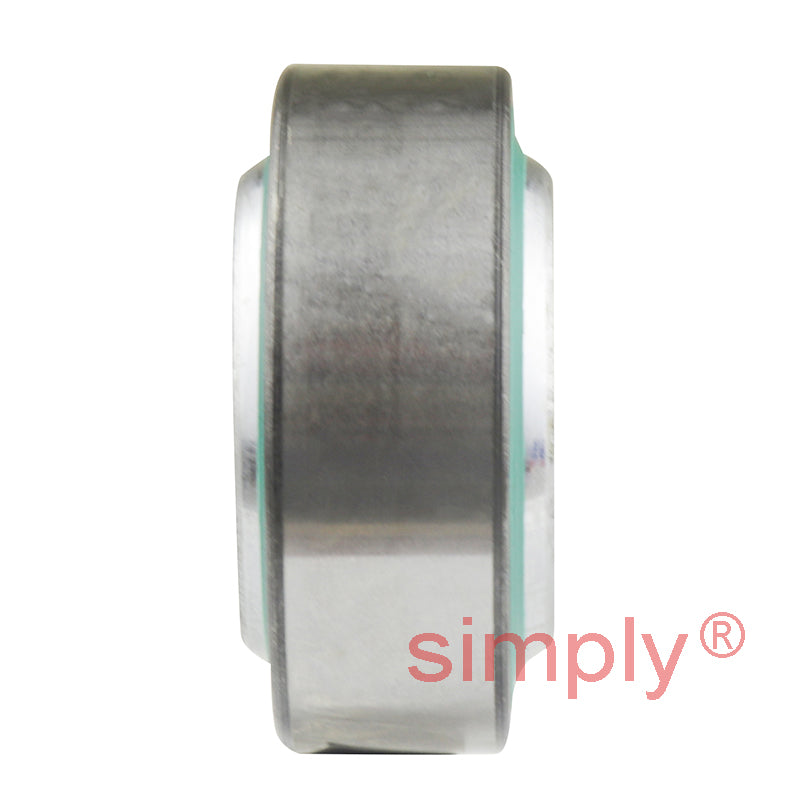

SKF GE20TXE2LS Maintenance Free Spherical Plain Bearing Steel / PTFE Fabric 20x35x16x12mm
SKF GE20TXE2LS Maintenance Free Spherical Plain Bearing Steel / PTFE Fabric 20x35x16x12mm
Regular price
CHF 54.00
ex VAT
Regular price
Sale price
CHF 54.00
ex VAT
In stock
Price Break
10+
CHF 42.59
19+
CHF 40.19
29+
CHF 39.72
39+
CHF 39.24
49+
CHF 38.76
74+
CHF 38.28
99+
CHF 35.89
199+
CHF 35.41
249+
CHF 34.93
499+
CHF 34.45
999+
CHF 33.50
Description
Description
|
SKF GE..TXE..2LS Series Spherical Plain Bearing: This series is classed as maintenance free radial spherical plain bearings. Comprising of sliding contact surfaces of hard chromium plated through hardened bearing steel against PTFE impregnated fabric these spherical plain bearings are fitted with heavy duty triple seals and require no maintenance. Application: Suitable for very heavy, constant direction loads, where low friction is required; limited suitability for alternating loads, shock loads. A characteristic of SKF steel / against PTFE impregnated fabric spherical plain bearings is the intentionally fractured outer ring enabling it to be sprung apart to insert the ball, thus care needs to be taken when mounting spherical plain bearings with a fractured or split outer ring, it is essential that the joint is positioned at 90 degrees to the direction of load. Benefits: Maintenance free operation. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 35mm
- Width:
- 16mm
Technical
Technical
| d | 20mm |
|---|---|
| D | 35mm |
| B | 16mm |
| C | 12mm |
| Max misalignment angle | 9 degrees |
| Dynamic load | 83 kN |
| Static load | 140 kN |
| dk | 29mm |
| r1 min | 0.3mm |
| r2 min | 0.3mm |
| da min | 22.1mm |
| da max | 24.2mm |
| Da max | 33.2mm |
| Da min | 27.6mm |
| ra max | 0.3mm |
| rb max | 0.3mm |
| Weight | 0.06 kg |
