SKU: GE220ES2RS.EU

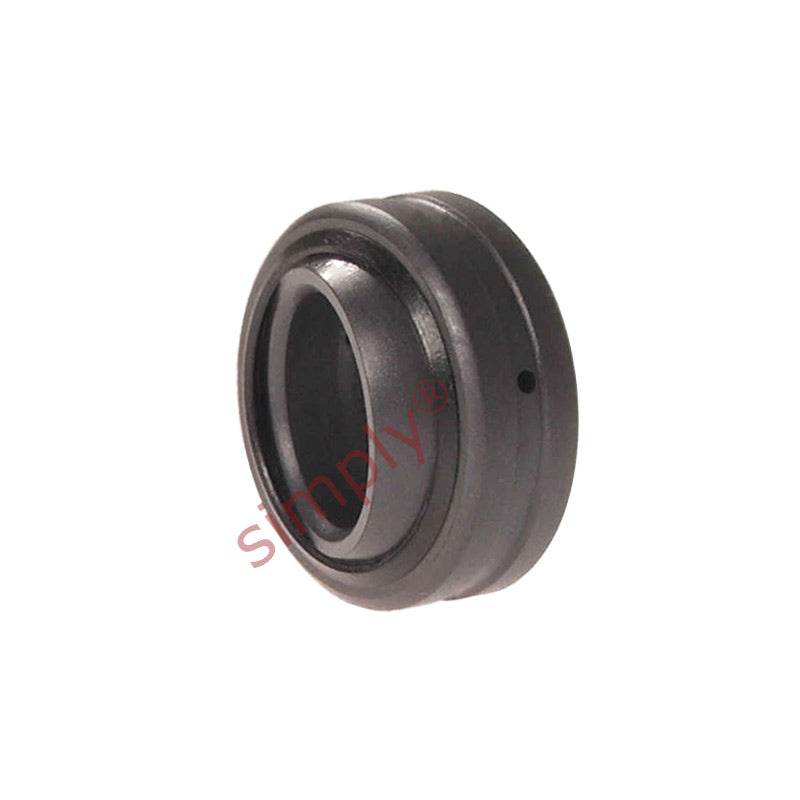

GE220ES2RS Rubber Sealed Spherical Plain Bearing 220x320x135x100mm
GE220ES2RS Rubber Sealed Spherical Plain Bearing 220x320x135x100mm
Regular price
CHF 1,694.00
ex VAT
Regular price
Sale price
CHF 1,694.00
ex VAT
In stock
Price Break
10+
CHF 1,349.24
19+
CHF 1,273.44
29+
CHF 1,258.28
39+
CHF 1,243.12
49+
CHF 1,227.96
74+
CHF 1,212.80
99+
CHF 1,137.00
199+
CHF 1,121.84
249+
CHF 1,106.68
499+
CHF 1,091.52
999+
CHF 1,061.20
Description
Description
|
Rubber Sealed Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel, rubber seals Note: The outer raceway may have as part of the manufacturing process a split or crack |
- Brand / Quality:
- Simply Spherical Plain - Economy Quality
- Inside Diameter:
- 220mm
- Outside Diameter:
- 320mm
- Width:
- 135mm
Technical
Technical
| d | 220mm |
|---|---|
| D | 320mm |
| B | 135mm |
| C | 100mm |
| dk | 275mm |
| rs min | 1.1mm |
| r1s min | 1.1mm |
| Angle α | 8° |
| Dynamic load Co | 2320 kN |
| Static load Cor | 11600 kN |
| Weight | 35.51 kg |
