SKU: GE25-KLL-B-INA

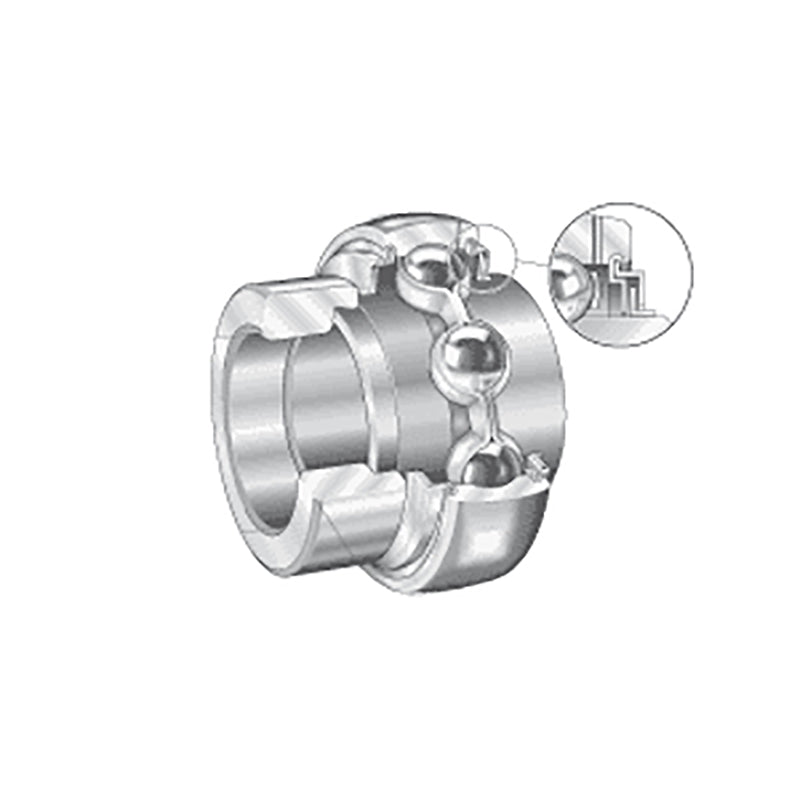

INA GE25XLKLLB Metric Spherical Outer Bearing Insert with L Seals and Eccentric Collar 25x52x44.5mm
INA GE25XLKLLB Metric Spherical Outer Bearing Insert with L Seals and Eccentric Collar 25x52x44.5mm
Regular price
CHF 36.29
ex VAT
Regular price
Sale price
CHF 36.29
ex VAT
In stock
Price Break
10+
CHF 32.30
19+
CHF 30.48
29+
CHF 30.12
39+
CHF 29.76
49+
CHF 29.39
74+
CHF 29.03
99+
CHF 27.22
199+
CHF 26.85
249+
CHF 26.49
499+
CHF 26.13
999+
CHF 25.40
Couldn't load pickup availability
Description
Description
|
INA GE..KLL-B Series Inserts: Bearing insert with spherical outer race, L seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -40 deg C to +180 deg C. Benefits: Can be re-lubricated, compensation of misalignment, wide temperature range. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 44.5mm
- Type:
- Spherical Outer
Technical
Technical
| d | 25mm |
|---|---|
| Dsp | 52mm |
| B1 | 44.5mm |
| B | 34.9mm |
| C | 15mm |
| C2 | 20.2mm |
| Ca | 3.9mm |
| D1 | 42.5mm |
| d1 | 33.8mm |
| d3 max | 37.5mm |
| S | 17.5mm |
| W | 3mm |
| Dynamic load Cr | 14000 N |
| Static load C0r | 7800 N |
| Weight | 0.25 kg |
