SKU: GE25TXG3E-2LS-SKF

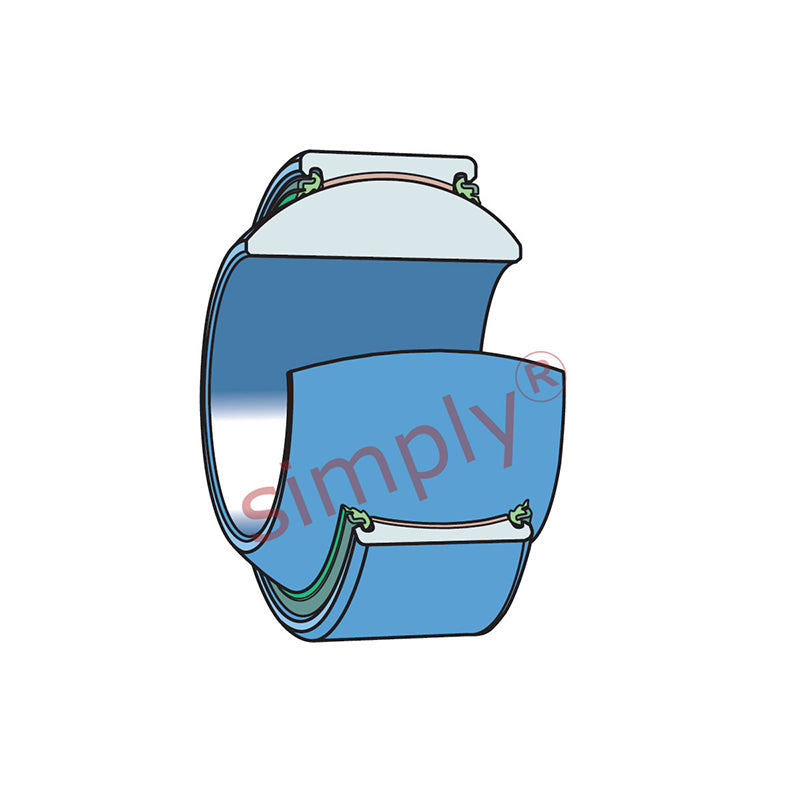

SKF GE25TXG3E2LS Maintenance Free Spherical Plain Bearing Stainless Steel / PTFE Fabric 25x42x20x16mm
SKF GE25TXG3E2LS Maintenance Free Spherical Plain Bearing Stainless Steel / PTFE Fabric 25x42x20x16mm
Regular price
CHF 222.79
ex VAT
Regular price
Sale price
CHF 222.79
ex VAT
In stock
Price Break
10+
CHF 198.28
19+
CHF 187.14
29+
CHF 184.92
39+
CHF 182.69
49+
CHF 180.46
74+
CHF 178.23
99+
CHF 167.09
199+
CHF 164.86
249+
CHF 162.64
499+
CHF 160.41
999+
CHF 155.95
Couldn't load pickup availability
Description
Description
|
SKF GE..TXG3E..2LS Series Spherical Plain Bearing: This series is classed as maintenance free radial spherical plain bearings. Comprising of sliding contact surfaces of X46 Cr13/1.4034 stainless steel against PTFE impregnated fabric these spherical plain bearings are fitted with heavy duty triple seals and require no maintenance. Application: Designed for use in corrosive environments and are suitable for very heavy, constant direction loads, where low friction is required; limited suitability for alternating loads, shock loads. A characteristic of SKF steel / against PTFE impregnated fabric spherical plain bearings is the intentionally fractured outer ring enabling it to be sprung apart to insert the ball, thus care needs to be taken when mounting spherical plain bearings with a fractured or split outer ring, it is essential that the joint is positioned at 90 degrees to the direction of load. Benefits: Maintenance free operation. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 42mm
- Width:
- 20mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 42mm |
| B | 20mm |
| C | 16mm |
| Max misalignment angle | 7 degrees |
| Dynamic load | 137 kN |
| Static load | 228 kN |
| dk | 35.5mm |
| r1 min | 0.6mm |
| r2 min | 0.6mm |
| da min | 28.2mm |
| da max | 29.3mm |
| Da max | 39.2mm |
| Da min | 36.9mm |
| ra max | 0.6mm |
| rb max | 0.6mm |
| Weight | 0.12 kg |
