SKU: GE30-KLL-B-INA
INA GE30XLKLLB Metric Spherical Outer Bearing Insert with L Seals and Eccentric Collar 30x62x48.5mm
INA GE30XLKLLB Metric Spherical Outer Bearing Insert with L Seals and Eccentric Collar 30x62x48.5mm
Regular price
CHF 45.00
ex VAT
Regular price
Sale price
CHF 45.00
ex VAT
In stock
Price Break
3+
CHF 35.20
5+
CHF 33.22
10+
CHF 32.83
15+
CHF 32.43
20+
CHF 32.04
30+
CHF 31.64
40+
CHF 29.66
50+
CHF 29.27
60+
CHF 28.87
75+
CHF 28.48
100+
CHF 27.69
Description
Description
|

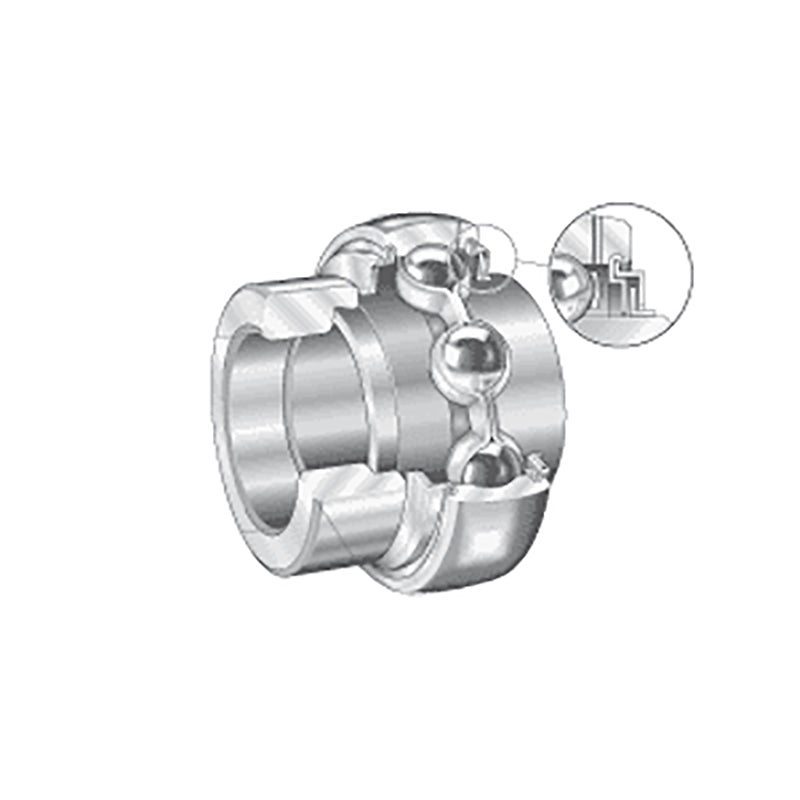

INA GE..KLL-B Series Inserts: Bearing insert with spherical outer race, L seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -40 deg C to +180 deg C. Benefits: Can be re-lubricated, compensation of misalignment, wide temperature range. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 48.5mm
Technical
Technical
| d | 30mm |
|---|---|
| Dsp | 62mm |
| B1 | 48.5mm |
| B | 36.5mm |
| C | 18mm |
| C2 | 20.6mm |
| Ca | 4.7mm |
| D1 | 52mm |
| d1 | 40.2mm |
| d3 max | 44mm |
| S | 18.3mm |
| W | 4mm |
| Dynamic load Cr | 19500 N |
| Static load C0r | 11300 N |
| Weight | 0.39 kg |
