SKU: GE30TXG3E-2LS-SKF

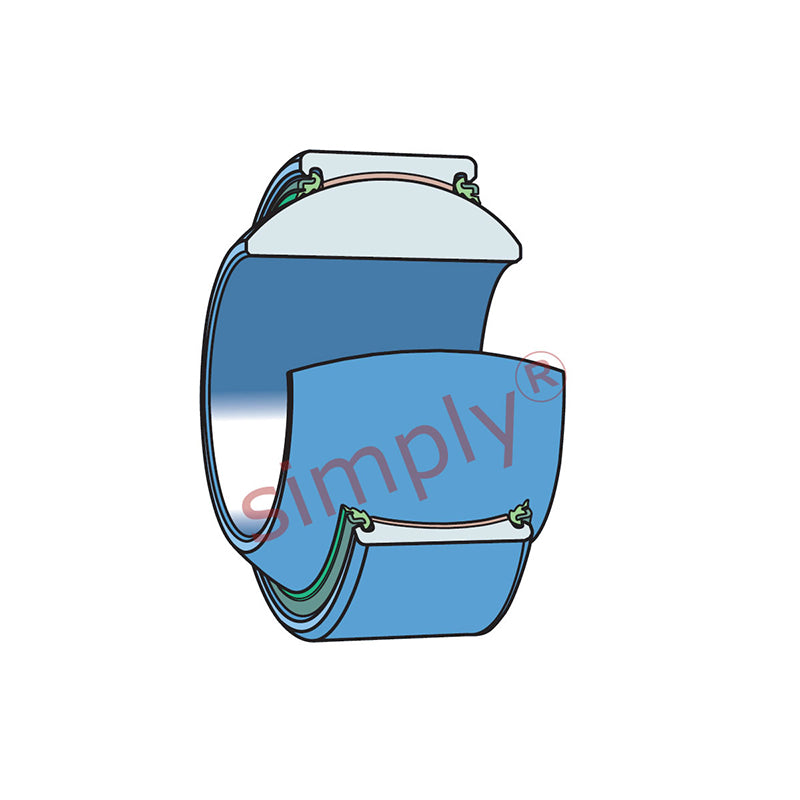

SKF GE30TXG3E2LS Maintenance Free Spherical Plain Bearing Stainless Steel / PTFE Fabric 30x47x22x18mm
SKF GE30TXG3E2LS Maintenance Free Spherical Plain Bearing Stainless Steel / PTFE Fabric 30x47x22x18mm
Regular price
CHF 139.15
ex VAT
Regular price
Sale price
CHF 139.15
ex VAT
In stock
Price Break
10+
CHF 123.84
19+
CHF 116.89
29+
CHF 115.49
39+
CHF 114.10
49+
CHF 112.71
74+
CHF 111.32
99+
CHF 104.36
199+
CHF 102.97
249+
CHF 101.58
499+
CHF 100.19
999+
CHF 97.41
Couldn't load pickup availability
Description
Description
|
SKF GE..TXG3E..2LS Series Spherical Plain Bearing: This series is classed as maintenance free radial spherical plain bearings. Comprising of sliding contact surfaces of X46 Cr13/1.4034 stainless steel against PTFE impregnated fabric these spherical plain bearings are fitted with heavy duty triple seals and require no maintenance. Application: Designed for use in corrosive environments and are suitable for very heavy, constant direction loads, where low friction is required; limited suitability for alternating loads, shock loads. A characteristic of SKF steel / against PTFE impregnated fabric spherical plain bearings is the intentionally fractured outer ring enabling it to be sprung apart to insert the ball, thus care needs to be taken when mounting spherical plain bearings with a fractured or split outer ring, it is essential that the joint is positioned at 90 degrees to the direction of load. Benefits: Maintenance free operation. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 47mm
- Width:
- 22mm
Technical
Technical
| d | 30mm |
|---|---|
| D | 47mm |
| B | 22mm |
| C | 18mm |
| Max misalignment angle | 6 degrees |
| Dynamic load | 176 kN |
| Static load | 290 kN |
| dk | 40.7mm |
| r1 min | 0.6mm |
| r2 min | 0.6mm |
| da min | 33.3mm |
| da max | 34.2mm |
| Da max | 44mm |
| Da min | 41.3mm |
| ra max | 0.6mm |
| rb max | 0.6mm |
| Weight | 0.16 kg |
