SKU: GE35CJ2-SKF

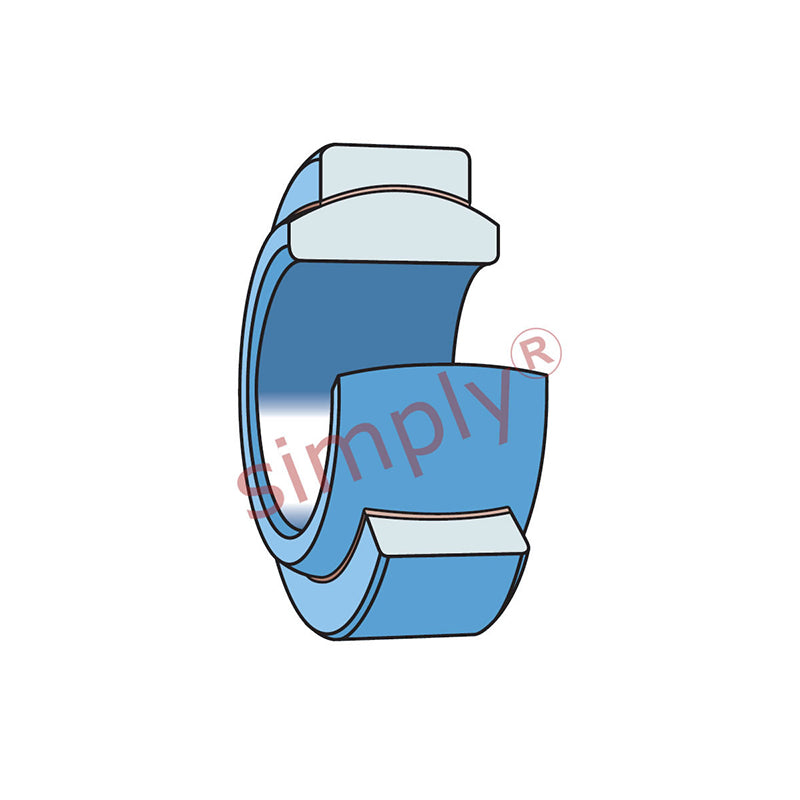

SKF GE35CJ2 Maintenance Free Spherical Plain Bearing Steel / Bronze 35x55x25x20mm
SKF GE35CJ2 Maintenance Free Spherical Plain Bearing Steel / Bronze 35x55x25x20mm
Regular price
CHF 91.00
ex VAT
Regular price
Sale price
CHF 91.00
ex VAT
In stock
Price Break
10+
CHF 72.12
19+
CHF 68.07
29+
CHF 67.26
39+
CHF 66.45
49+
CHF 65.64
74+
CHF 64.83
99+
CHF 60.78
199+
CHF 59.97
249+
CHF 59.15
499+
CHF 58.34
999+
CHF 56.72
Description
Description
|
SKF GE..CJ2 Series Spherical Plain Bearings: This series is classed as maintenance free radial spherical plain bearings. Comprising of sliding contact surfaces of steel against PTFE / sintered bronze these spherical plain bearings are unsealed and self lubricating but will require protection from external contaminants. The C design consists of a Steel backing with PTFE sintered bronze sleeve pressed around the inner ring, without a butt joint. Application: Suitable for heavy, constant direction loads, where low friction is required; limited suitability for alternating loads, shock loads. A characteristic of SKF steel / PTFE / sintered bronze spherical plain bearings is the intentionally fractured outer ring enabling it to be sprung apart to insert the ball, thus care needs to be taken when mounting spherical plain bearings with a fractured or split outer ring, it is essential that the joint is positioned at 90 degrees to the direction of load. Occasional re-lubrication can be beneficial to the service life of this component. Benefits: Re-lubricate-able, cleanable. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 55mm
- Width:
- 25mm
Technical
Technical

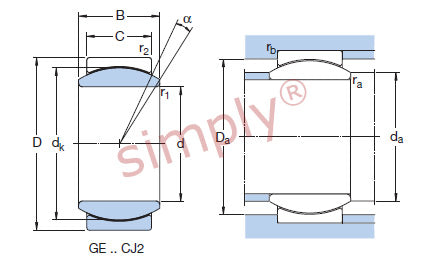

| d | 35mm |
|---|---|
| D | 55mm |
| B | 25mm |
| C | 20mm |
| Max misalignment angle | 6 degrees |
| Dynamic load | 80 kN |
| Static load | 200 kN |
| dk | 47mm |
| r1 min | 0.6mm |
| r2 min | 1mm |
| da min | 37.9mm |
| da max | 39.8mm |
| Da max | 51.4mm |
| Da min | 44.7mm |
| ra max | 0.6mm |
| rb max | 1mm |
| Weight | 0.23 kg |
