SKU: GE50-KTT-B-INA

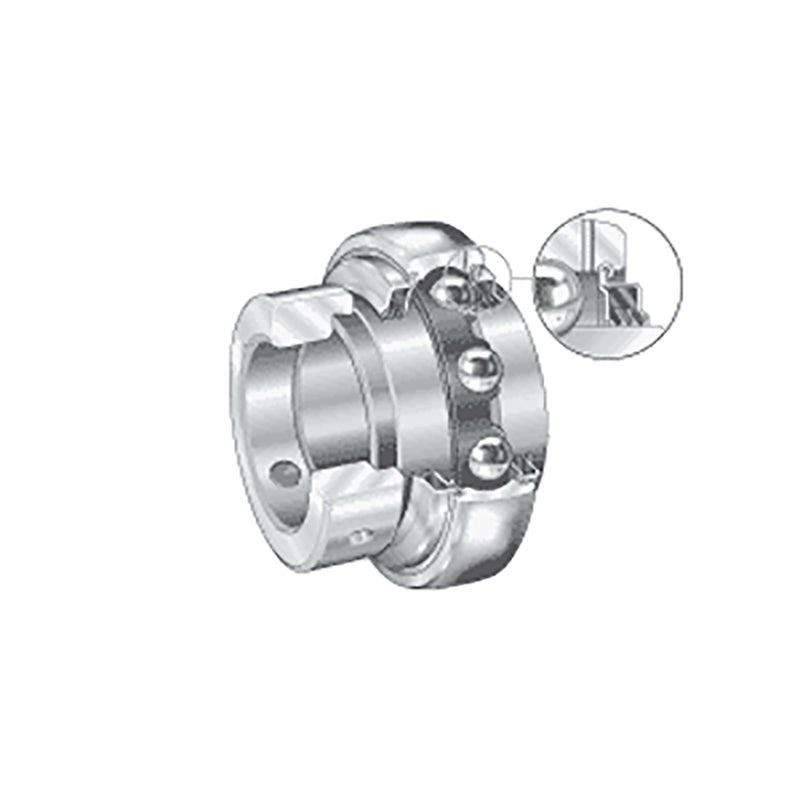

INA GE50XLKTTB Metric Spherical Outer Bearing Insert with T Seals and Eccentric Collar 50x90x62.8mm
INA GE50XLKTTB Metric Spherical Outer Bearing Insert with T Seals and Eccentric Collar 50x90x62.8mm
Regular price
CHF 80.00
ex VAT
Regular price
Sale price
CHF 80.00
ex VAT
In stock
Price Break
3+
CHF 63.45
5+
CHF 59.88
10+
CHF 59.17
15+
CHF 58.46
20+
CHF 57.74
30+
CHF 57.03
40+
CHF 53.47
50+
CHF 52.75
60+
CHF 52.04
75+
CHF 51.33
100+
CHF 49.90
Description
Description
|
INA GE..KTT-B Series Inserts: Bearing insert with spherical outer race, T seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings of the bearings up to 60mm inside diameter, and locking collar in general, have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Width:
- 62.8mm
Technical
Technical
| d | 50mm |
|---|---|
| Dsp | 90mm |
| B1 | 62.8mm |
| B | 49.2mm |
| C | 22mm |
| C2 | 26.4mm |
| Ca | 6.9mm |
| D1 | 77.3mm |
| d1 | 62.8mm |
| d3 max | 69mm |
| S | 24.6mm |
| W | 5mm |
| Dynamic load Cr | 35000 N |
| Static load C0r | 23200 N |
| Weight | 0.98 kg |
