SKU: GE50TXG3E-2LS-SKF

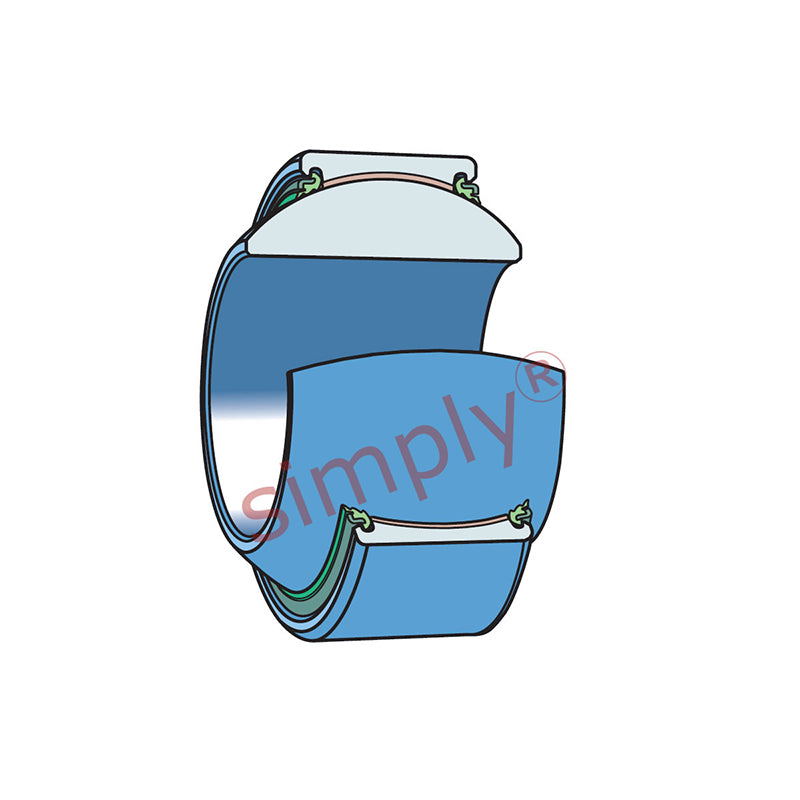

SKF GE50TXG3E2LS Maintenance Free Spherical Plain Bearing Stainless Steel / PTFE Fabric 50x75x35x28mm
SKF GE50TXG3E2LS Maintenance Free Spherical Plain Bearing Stainless Steel / PTFE Fabric 50x75x35x28mm
Regular price
CHF 357.00
ex VAT
Regular price
Sale price
CHF 357.00
ex VAT
In stock
Price Break
10+
CHF 283.66
19+
CHF 267.72
29+
CHF 264.54
39+
CHF 261.35
49+
CHF 258.16
74+
CHF 254.97
99+
CHF 239.04
199+
CHF 235.85
249+
CHF 232.66
499+
CHF 229.48
999+
CHF 223.10
Description
Description
|
SKF GE..TXG3E..2LS Series Spherical Plain Bearing: This series is classed as maintenance free radial spherical plain bearings. Comprising of sliding contact surfaces of X46 Cr13/1.4034 stainless steel against PTFE impregnated fabric these spherical plain bearings are fitted with heavy duty triple seals and require no maintenance. Application: Designed for use in corrosive environments and are suitable for very heavy, constant direction loads, where low friction is required; limited suitability for alternating loads, shock loads. A characteristic of SKF steel / against PTFE impregnated fabric spherical plain bearings is the intentionally fractured outer ring enabling it to be sprung apart to insert the ball, thus care needs to be taken when mounting spherical plain bearings with a fractured or split outer ring, it is essential that the joint is positioned at 90 degrees to the direction of load. Benefits: Maintenance free operation. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 75mm
- Width:
- 35mm
Technical
Technical
| d | 50mm |
|---|---|
| D | 75mm |
| B | 35mm |
| C | 28mm |
| Max misalignment angle | 6 degrees |
| Dynamic load | 440 kN |
| Static load | 735 kN |
| dk | 66mm |
| r1 min | 0.6mm |
| r2 min | 1mm |
| da min | 54.5mm |
| da max | 56mm |
| Da max | 70.5mm |
| Da min | 66.5mm |
| ra max | 0.6mm |
| rb max | 1mm |
| Weight | 0.56 kg |
