SKU: GE60-KTT-B-INA

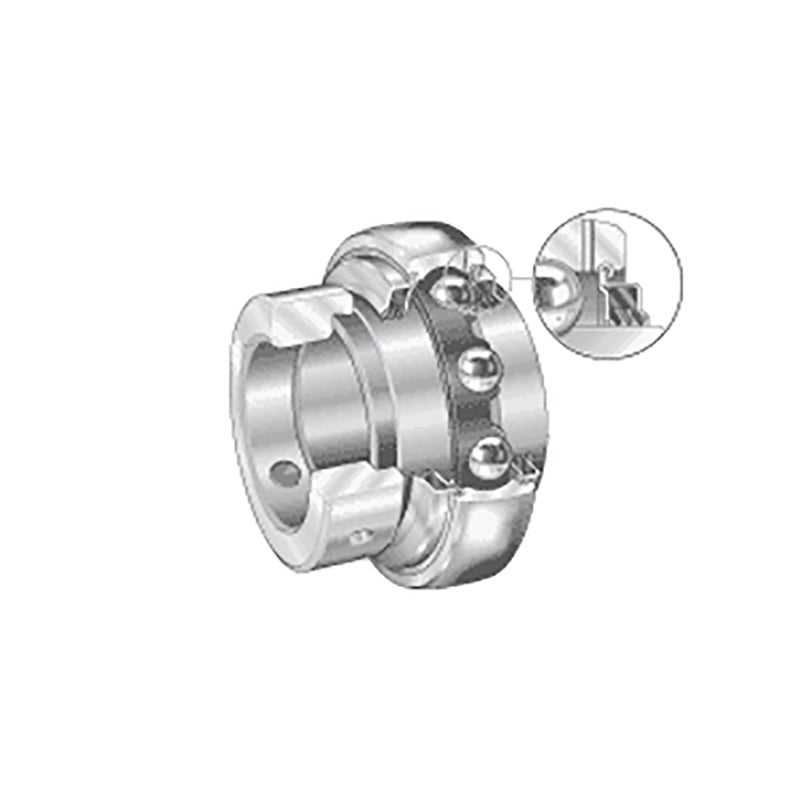

INA GE60XLKTTB Metric Spherical Outer Bearing Insert with T Seals and Eccentric Collar 60x110x77.9mm
INA GE60XLKTTB Metric Spherical Outer Bearing Insert with T Seals and Eccentric Collar 60x110x77.9mm
Regular price
CHF 140.00
ex VAT
Regular price
Sale price
CHF 140.00
ex VAT
In stock
Price Break
3+
CHF 111.01
5+
CHF 104.77
10+
CHF 103.53
15+
CHF 102.28
20+
CHF 101.03
30+
CHF 99.78
40+
CHF 93.55
50+
CHF 92.30
60+
CHF 91.05
75+
CHF 89.81
100+
CHF 87.31
Description
Description
|
INA GE..KTT-B Series Inserts: Bearing insert with spherical outer race, T seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings of the bearings up to 60mm inside diameter, and locking collar in general, have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Width:
- 77.9mm
Technical
Technical
| d | 60mm |
|---|---|
| Dsp | 110mm |
| B1 | 77.9mm |
| B | 61.9mm |
| C | 24mm |
| C2 | 29mm |
| Ca | 7.2mm |
| D1 | 94.5mm |
| d1 | 76.5mm |
| d3 max | 84mm |
| S | 31mm |
| W | 5mm |
| Dynamic load Cr | 52000 N |
| Static load C0r | 36000 N |
| Weight | 1.8 kg |
