SKU: GE60ES-2RS-SKF

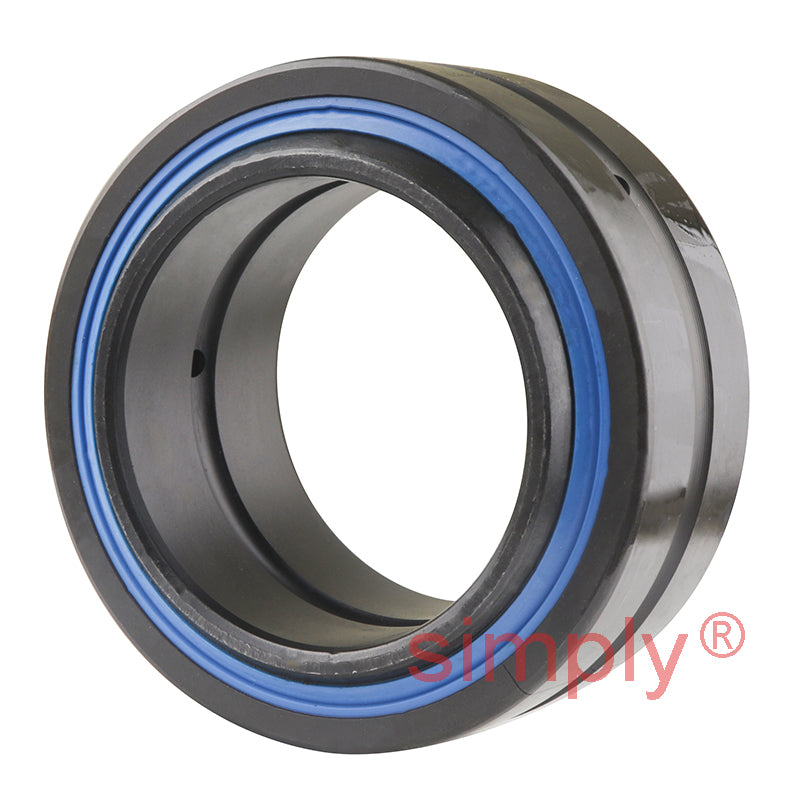

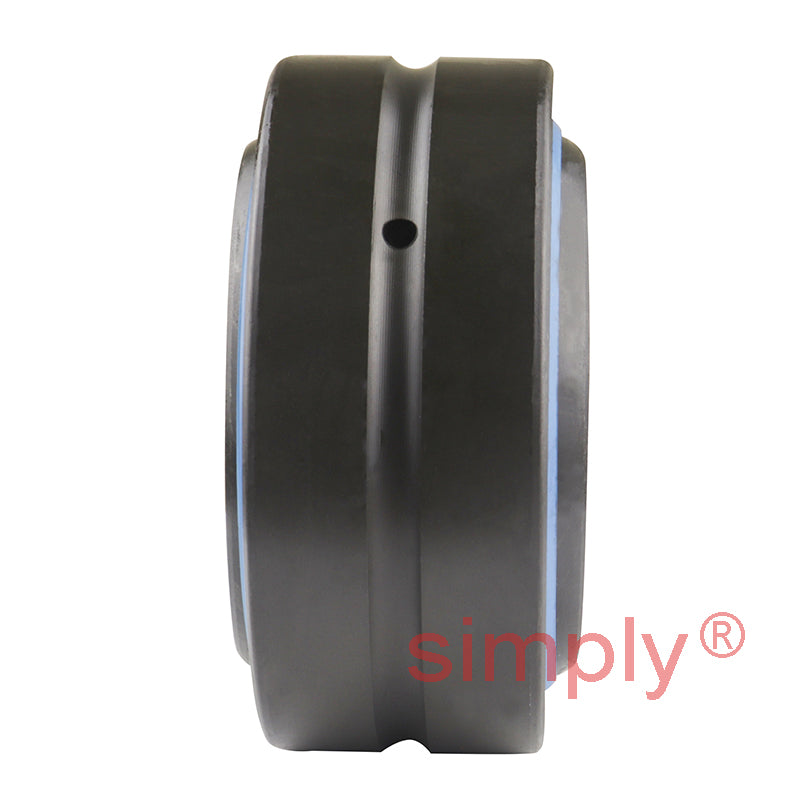

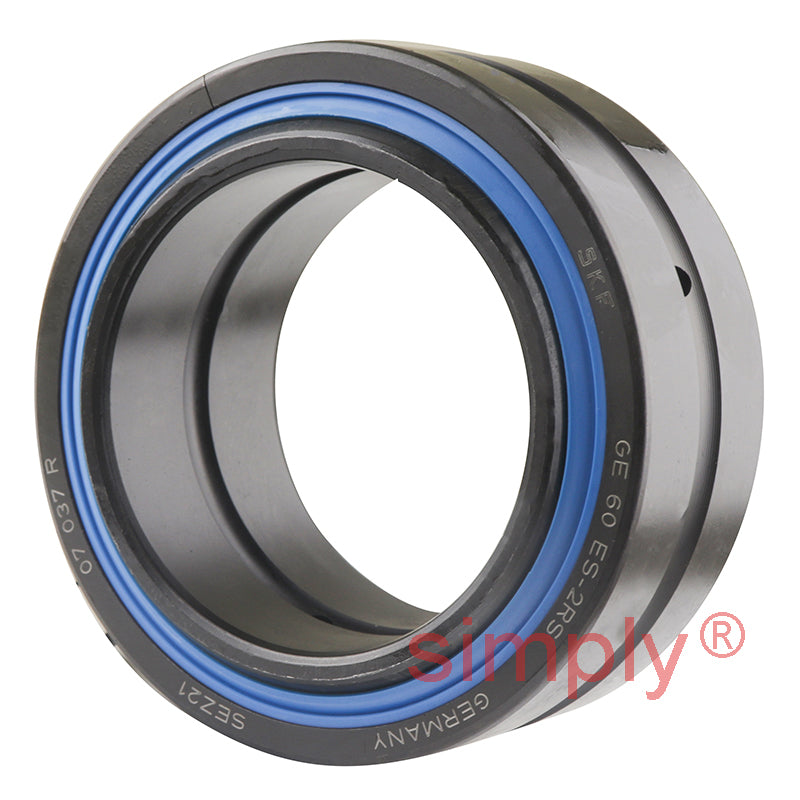

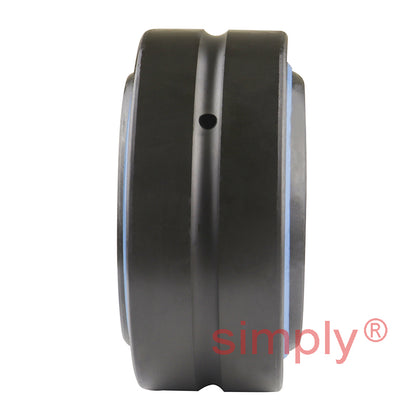

SKF GE60ES2RS Double Sealed Spherical Plain Bearing 60x90x36x44mm
SKF GE60ES2RS Double Sealed Spherical Plain Bearing 60x90x36x44mm
Regular price
CHF 136.00
ex VAT
Regular price
Sale price
CHF 136.00
ex VAT
In stock
Price Break
10+
CHF 107.74
19+
CHF 101.68
29+
CHF 100.47
39+
CHF 99.26
49+
CHF 98.05
74+
CHF 96.84
99+
CHF 90.79
199+
CHF 89.58
249+
CHF 88.37
499+
CHF 87.16
999+
CHF 84.74
Description
Description
|
SKF GE..ES-2RS Series Spherical Plain Bearings: This series is classed as radial spherical plain bearings requiring maintenance. Comprising of sliding contact surfaces of steel against steel these spherical plain bearings are double lip sealed to prevent ingress of dirt and moisture and require maintenance from time to time in the form of re-lubrication via an annular lubrication groove around its outer and inner rings. Dependent on installation design the lubricant may be passed through the housing or spindle directly into the bearing at any point around the groove which has small holes to direct the lubricant onto the mating surfaces. These are metric sized spherical plain bearings. The bearings are manganese phosphated and the sliding contact surface is then treated with a running-in lubricant. This reduces friction and wear during the running-in period. Application: Suitable for heavy static, shock or alternating loads. A characteristic of SKF steel / steel spherical plain bearings is the intentionally fractured outer ring enabling it to be sprung apart to insert the ball, thus care needs to be taken when mounting spherical plain bearings with a fractured or split outer ring, it is essential that the joint is positioned at 90 degrees to the direction of load Benefits: Re-lubricate-able, double sealed. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 90mm
- Width:
- 44mm
Technical
Technical
| d | 60mm |
|---|---|
| D | 90mm |
| B | 44mm |
| C | 36mm |
| Max misalignment angle | 6 degrees |
| Dynamic load | 245 kN |
| Static load | 1220 kN |
| dk | 80mm |
| b | 6.2mm |
| b1 | 6.2mm |
| M | 4mm |
| r1 min | 1mm |
| r2 min | 1mm |
| da min | 76.7mm |
| da max | 77.9mm |
| Da max | 99mm |
| Da min | 87.4mm |
| ra max | 1mm |
| rb max | 1mm |
| Weight | 1.04 kg |
