SKU: GE60TXG3E-2LS-SKF

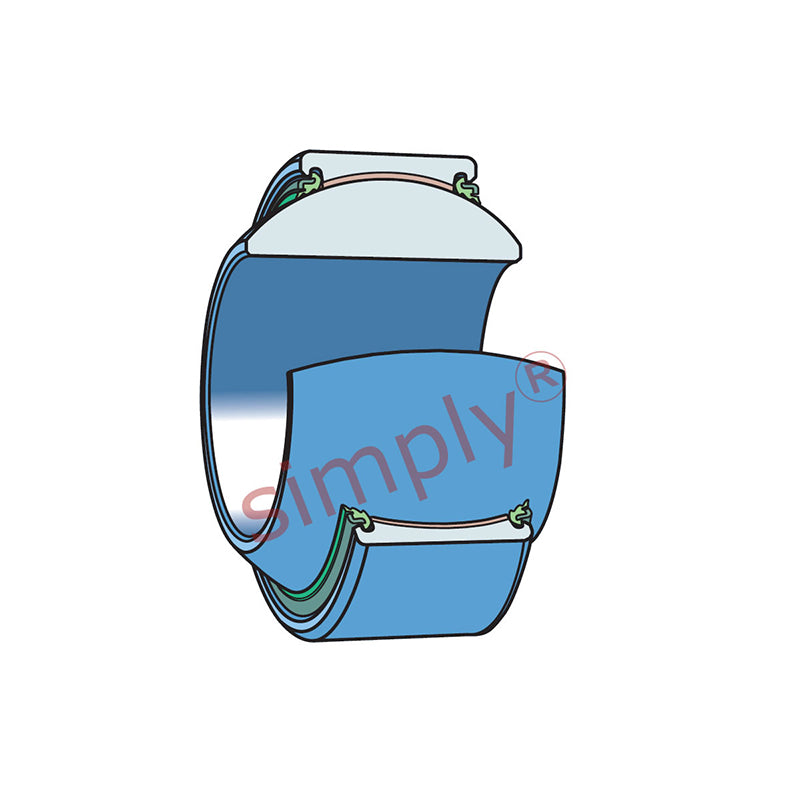

SKF GE60TXG3E2LS Maintenance Free Spherical Plain Bearing Stainless Steel / PTFE Fabric 60x90x44x36mm
SKF GE60TXG3E2LS Maintenance Free Spherical Plain Bearing Stainless Steel / PTFE Fabric 60x90x44x36mm
Regular price
CHF 515.00
ex VAT
Regular price
Sale price
CHF 515.00
ex VAT
In stock
Price Break
10+
CHF 409.27
19+
CHF 386.28
29+
CHF 381.68
39+
CHF 377.08
49+
CHF 372.48
74+
CHF 367.89
99+
CHF 344.89
199+
CHF 340.29
249+
CHF 335.70
499+
CHF 331.10
999+
CHF 321.90
Description
Description
|
SKF GE..TXG3E..2LS Series Spherical Plain Bearing: This series is classed as maintenance free radial spherical plain bearings. Comprising of sliding contact surfaces of X46 Cr13/1.4034 stainless steel against PTFE impregnated fabric these spherical plain bearings are fitted with heavy duty triple seals and require no maintenance. Application: Designed for use in corrosive environments and are suitable for very heavy, constant direction loads, where low friction is required; limited suitability for alternating loads, shock loads. A characteristic of SKF steel / against PTFE impregnated fabric spherical plain bearings is the intentionally fractured outer ring enabling it to be sprung apart to insert the ball, thus care needs to be taken when mounting spherical plain bearings with a fractured or split outer ring, it is essential that the joint is positioned at 90 degrees to the direction of load. Benefits: Maintenance free operation. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 90mm
- Width:
- 44mm
Technical
Technical
| d | 60mm |
|---|---|
| D | 90mm |
| B | 44mm |
| C | 36mm |
| Max misalignment angle | 6 degrees |
| Dynamic load | 695 kN |
| Static load | 1160 kN |
| dk | 80mm |
| r1 min | 1mm |
| r2 min | 1mm |
| da min | 66.5mm |
| da max | 66.8mm |
| Da max | 84mm |
| Da min | 80mm |
| ra max | 1mm |
| rb max | 1mm |
| Weight | 1.1 kg |
