SKU: GE80ES-SKF

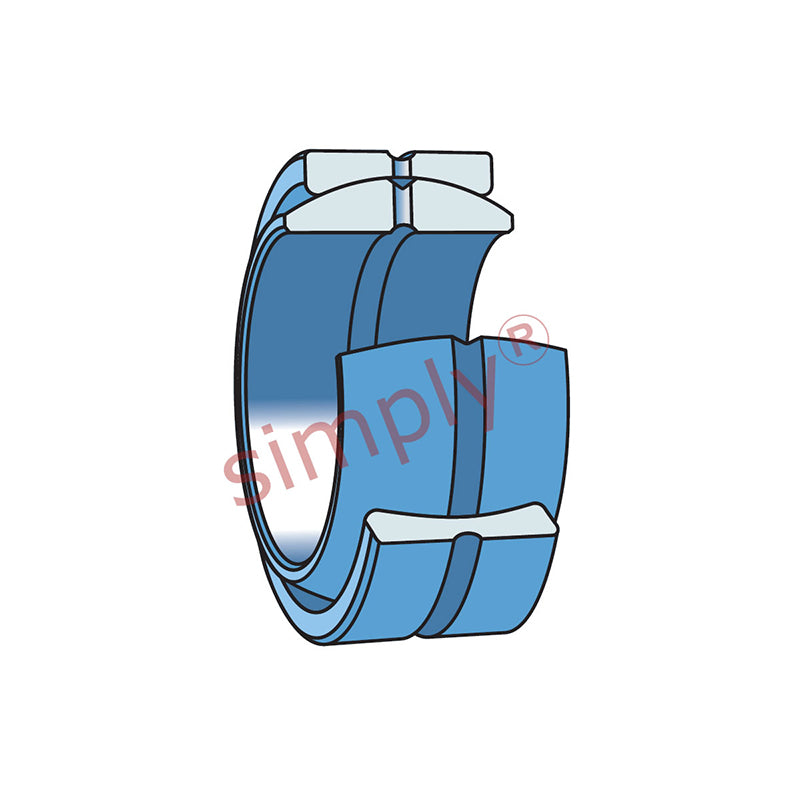

SKF GE80ES Spherical Plain Bearing Steel / Steel 80x120x45x55mm
SKF GE80ES Spherical Plain Bearing Steel / Steel 80x120x45x55mm
Regular price
CHF 217.00
ex VAT
Regular price
Sale price
CHF 217.00
ex VAT
In stock
Price Break
10+
CHF 172.30
19+
CHF 162.62
29+
CHF 160.68
39+
CHF 158.75
49+
CHF 156.81
74+
CHF 154.88
99+
CHF 145.20
199+
CHF 143.26
249+
CHF 141.32
499+
CHF 139.39
999+
CHF 135.52
Description
Description
|
SKF GE..ES Series Spherical Plain Bearings: This series is classed as radial spherical plain bearings requiring maintenance. Comprising of sliding contact surfaces of steel against steel these spherical plain bearings are unsealed and require maintenance from time to time in the form of re-lubrication via an annular lubrication groove around its outer and inner rings. Dependent on installation design the lubricant may be passed through the housing or spindle directly into the bearing at any point around the groove which has small holes to direct the lubricant onto the mating surfaces. These are metric sized spherical plain bearings. The bearings are manganese phosphated and the sliding contact surface is then treated with a running-in lubricant. This reduces friction and wear during the running-in period. Application: Suitable for heavy static, shock or alternating loads. A characteristic of SKF Steel / Steel spherical plain bearings is the intentionally fractured outer ring enabling it to be sprung apart to insert the ball, thus care needs to be taken when mounting spherical plain bearings with a fractured or split outer ring, it is essential that the joint is positioned at 90 degrees to the direction of load Benefits: Re-lubricate-able, cleanable. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 120mm
- Width:
- 55mm
Technical
Technical
| d | 80mm |
|---|---|
| D | 120mm |
| B | 55mm |
| C | 45mm |
| Max misalignment angle | 6 degrees |
| Dynamic load | 400 kN |
| Static load | 2000 kN |
| dk | 105mm |
| b | 7.7mm |
| b1 | 7.7mm |
| M | 4mm |
| r1 min | 1mm |
| r2 min | 1mm |
| da min | 87.1mm |
| da max | 89.4mm |
| Da max | 113.8mm |
| Da min | 99.7mm |
| ra max | 1mm |
| rb max | 1mm |
| Weight | 231 kg |
