SKU: GE90ES-2RS-CDX

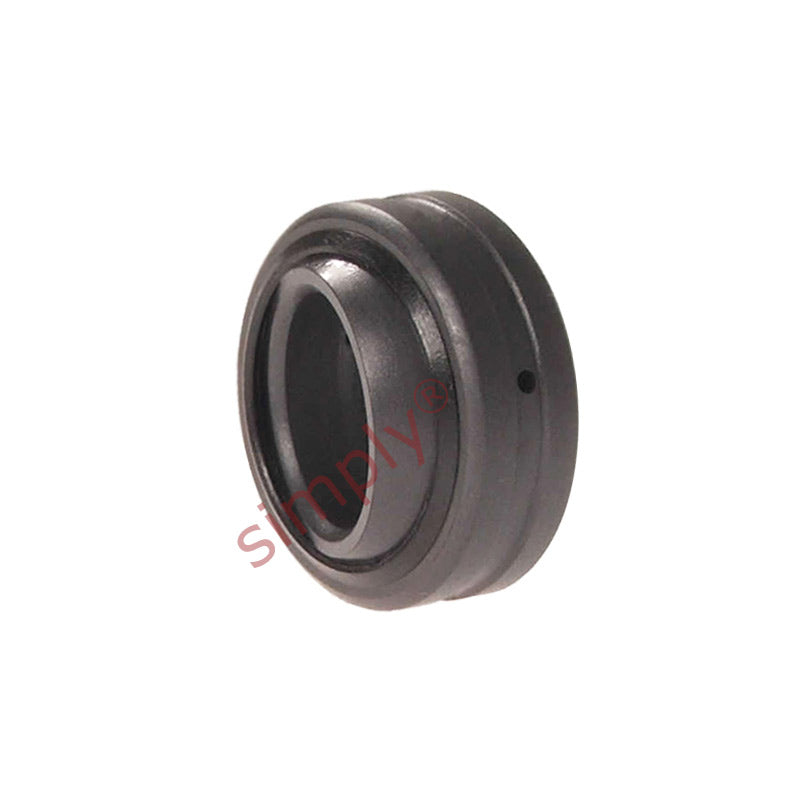

Codex GE90ES2RS Double Sealed Spherical Plain Bearing 90x130x50x60mm
Codex GE90ES2RS Double Sealed Spherical Plain Bearing 90x130x50x60mm
Regular price
CHF 164.00
ex VAT
Regular price
Sale price
CHF 164.00
ex VAT
In stock
Price Break
10+
CHF 130.50
19+
CHF 123.17
29+
CHF 121.70
39+
CHF 120.24
49+
CHF 118.77
74+
CHF 117.30
99+
CHF 109.97
199+
CHF 108.51
249+
CHF 107.04
499+
CHF 105.57
999+
CHF 102.64
Description
Description
|
GE..ES-2RS Series Spherical Plain Bearings: This series is classed as radial spherical plain bearings requiring maintenance. Comprising of sliding contact surfaces of steel against steel these spherical plain bearings are double lip sealed to prevent ingress of dirt and moisture and require maintenance from time to time in the form of re-lubrication via an annular lubrication groove around its outer and inner rings. Dependent on installation design the lubricant may be passed through the housing or spindle directly into the bearing at any point around the groove which has small holes to direct the lubricant onto the mating surfaces. These are metric sized spherical plain bearings. The bearings are manganese phosphated and the sliding contact surface is then treated with a running-in lubricant. This reduces friction and wear during the running-in period. Application: Suitable for heavy static, shock or alternating loads. A characteristic of steel / steel spherical plain bearings is the intentionally fractured outer ring enabling it to be sprung apart to insert the ball, thus care needs to be taken when mounting spherical plain bearings with a fractured or split outer ring, it is essential that the joint is positioned at 90 degrees to the direction of load Benefits: Re-lubricate-able, double sealed. |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 130mm
- Width:
- 60mm
Technical
Technical
| d | 90mm |
|---|---|
| D | 130mm |
| B | 60mm |
| C | 50mm |
| Max misalignment angle | 5 degrees |
| Dynamic load | 488 kN |
| Static load | 2440 kN |
| dk | 115mm |
| b | 9.5mm |
| b1 | 9.5mm |
| M | 5mm |
| r1 min | 1mm |
| r2 min | 1mm |
| da min | 97.4mm |
| da max | 98.1mm |
| Da max | 123.5mm |
| Da min | 112.9mm |
| ra max | 1mm |
| rb max | 1mm |
| Weight | 2.75 kg |
