SKU: GEH40ES-2LS-SKF

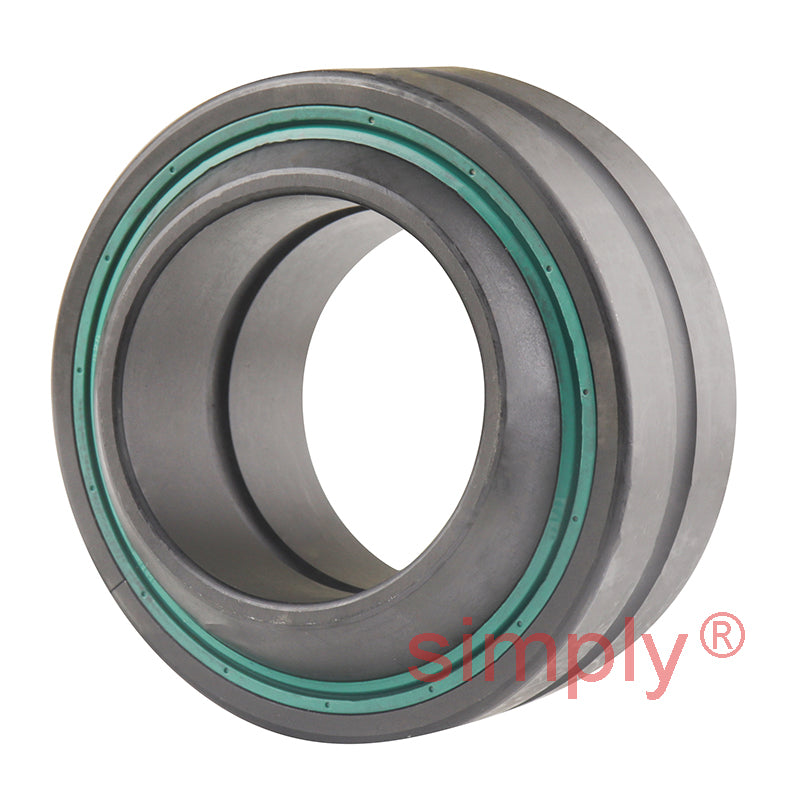

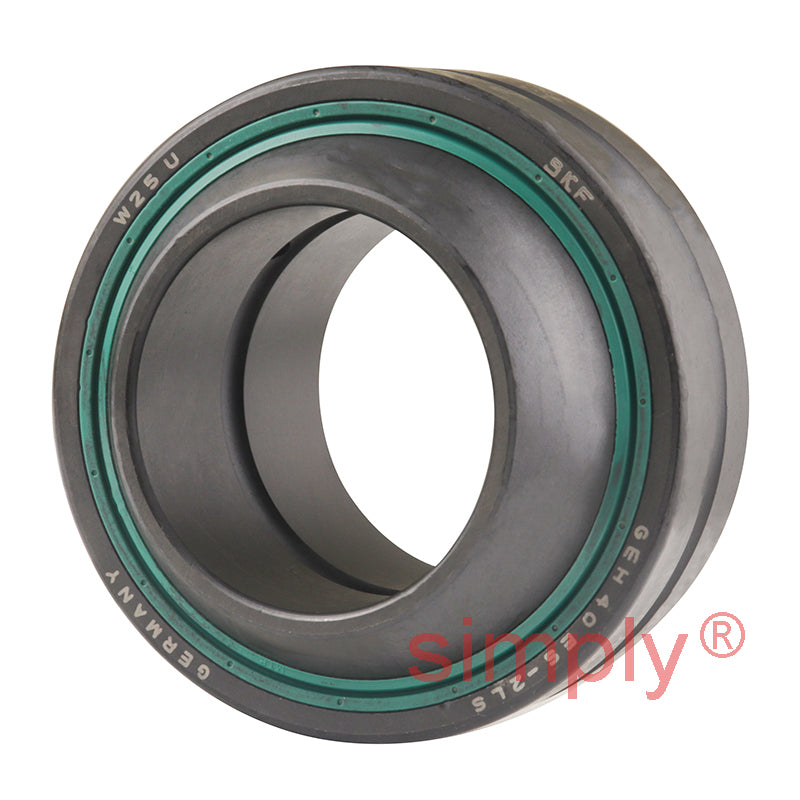

SKF GEH40ES2LS Heavy Duty Triple Seal Spherical Plain Bearing 40x68x25x40mm
SKF GEH40ES2LS Heavy Duty Triple Seal Spherical Plain Bearing 40x68x25x40mm
Regular price
CHF 77.00
ex VAT
Regular price
Sale price
CHF 77.00
ex VAT
In stock
Price Break
10+
CHF 61.18
19+
CHF 57.74
29+
CHF 57.06
39+
CHF 56.37
49+
CHF 55.68
74+
CHF 54.99
99+
CHF 51.56
199+
CHF 50.87
249+
CHF 50.18
499+
CHF 49.50
999+
CHF 48.12
Description
Description
|

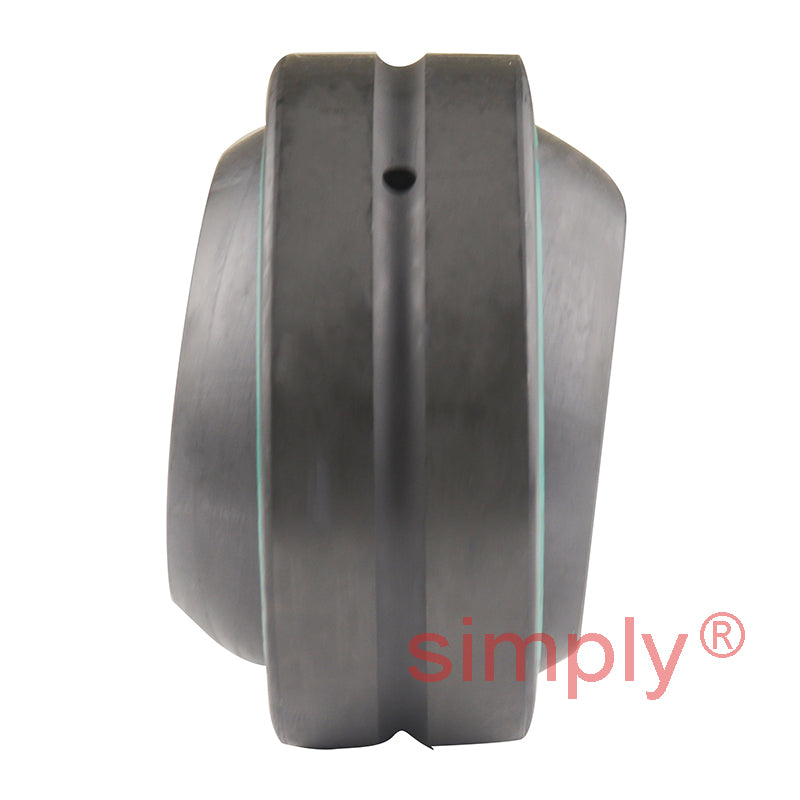

SKF GEH..ES-2LS Series Spherical Plain Bearings: This series is classed as radial spherical plain bearings requiring maintenance. Comprising of sliding contact surfaces of steel against steel these spherical plain bearings are heavy duty triple seal lip and require maintenance from time to time in the form of re-lubrication via an annular lubrication groove around its outer and inner rings. They have a wider ball and larger outside diameter than the GEH..ES-2RS series enabling a higher load capacity and greater tilt angles to be achieved. Dependent on installation design the lubricant may be passed through the housing or spindle directly into the bearing at any point around the groove which has small holes to direct the lubricant onto the mating surfaces. These are imperial sized spherical plain bearings. The bearings are manganese phosphated and the sliding contact surface is then treated with a running-in lubricant. This reduces friction and wear during the running-in period. Application: Suitable for heavy static, shock or alternating loads. A characteristic of SKF steel / steel spherical plain bearings is the intentionally fractured outer ring enabling it to be sprung apart to insert the ball, thus care needs to be taken when mounting spherical plain bearings with a fractured or split outer ring, it is essential that the joint is positioned at 90 degrees to the direction of load. Benefits: Re-lubricate-able, triple lip sealed. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 68mm
- Width:
- 40mm
Technical
Technical
| d | 40mm |
|---|---|
| D | 68mm |
| B | 40mm |
| C | 25mm |
| Max misalignment angle | 17 degrees |
| Dynamic load | 127 kN |
| Static load | 640 kN |
| dk | 60mm |
| b | 4.6mm |
| b1 | 4.6mm |
| M | 3mm |
| r1 min | 0.6mm |
| r2 min | 1mm |
| da min | 44.1mm |
| da max | 44.7mm |
| Da max | 63.6mm |
| Da min | 61mm |
| ra max | 0.6mm |
| rb max | 1mm |
| Weight | 0.61 kg |
