SKU: GEK22ESA-SKF
SKF GEK22ESA Steel / Steel Spherical Plain Bearing 22x43x20x28mm
SKF GEK22ESA Steel / Steel Spherical Plain Bearing 22x43x20x28mm
Regular price
CHF 32.26
ex VAT
Regular price
Sale price
CHF 32.26
ex VAT
Low stock
Price Break
10+
CHF 28.71
19+
CHF 27.10
29+
CHF 26.78
39+
CHF 26.45
49+
CHF 26.13
74+
CHF 25.81
99+
CHF 24.20
199+
CHF 23.87
249+
CHF 23.55
499+
CHF 23.23
999+
CHF 22.58
Couldn't load pickup availability
Description
Description
|
SKF GEK Series Spherical Plain Bearings: This series is classed as radial spherical plain bearings requiring maintenance. Comprising of sliding contact surfaces of steel against steel these spherical plain bearings are unsealed and require maintenance from time to time in the form of re-lubrication from the sides of the ball. These are metric sized spherical plain bearings. The bearings are manganese phosphated and the sliding contact surface is then treated with a running-in lubricant. This reduces friction and wear during the running-in period. Application: Suitable for heavy static, shock or alternating loads. A characteristic of SKF steel / steel spherical plain bearings is the intentionally fractured outer ring enabling it to be sprung apart to insert the ball, thus care needs to be taken when mounting spherical plain bearings with a fractured or split outer ring, it is essential that the joint is positioned at 90 degrees to the direction of load. Benefits: Re-lubricate-able, cleanable. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 43mm
- Width:
- 28mm

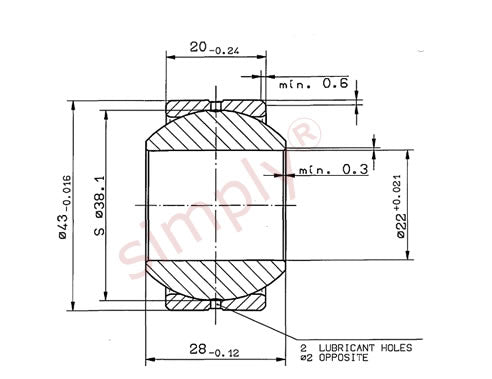

Technical
Technical
| d | 22mm |
|---|---|
| D | 43mm |
| B | 28mm |
| C | 20mm |
| Max misalignment angle | 7 degrees |
| Weight | 0.18 kg |
