SKU: GEM40ES-2RS-SKF

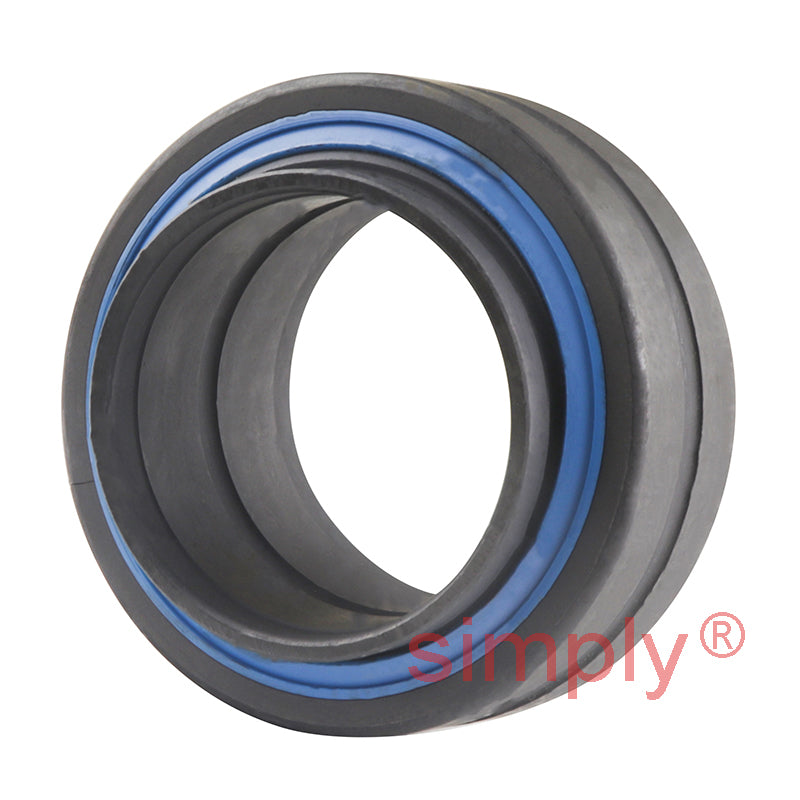

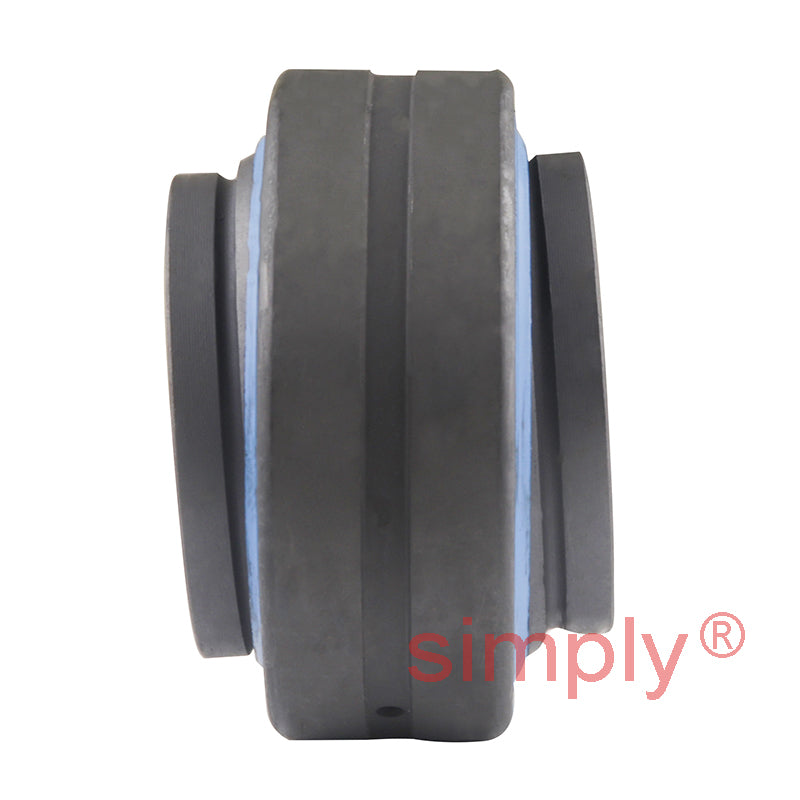

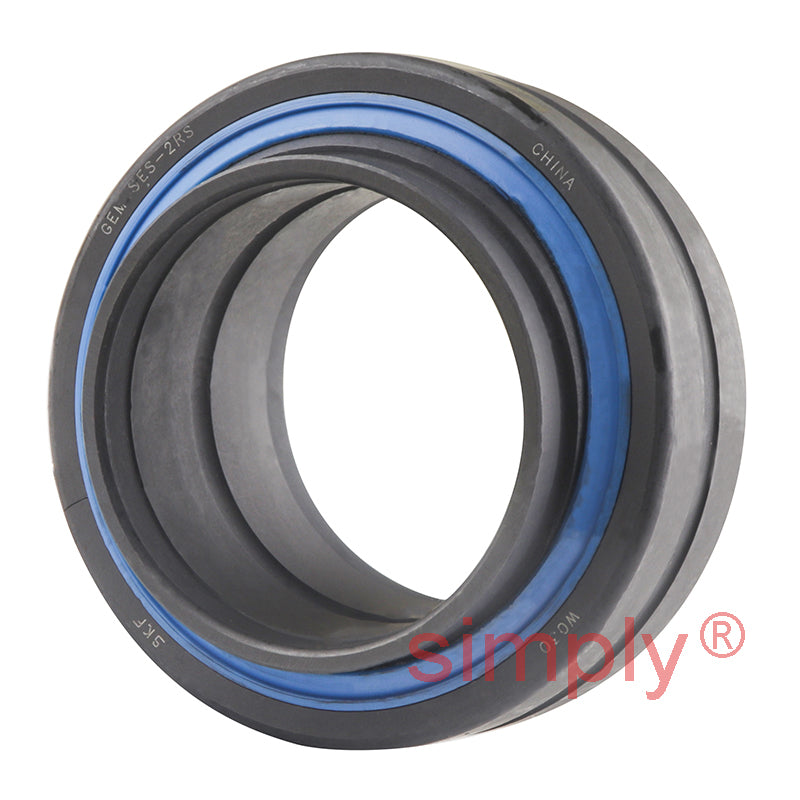

SKF GEM40ES2RS Extended Inner Spherical Plain Bearing 40x62x38x22mm
SKF GEM40ES2RS Extended Inner Spherical Plain Bearing 40x62x38x22mm
Regular price
CHF 60.00
ex VAT
Regular price
Sale price
CHF 60.00
ex VAT
Equivalent to: GE40HO2RS GEEM402RS
In stock
Price Break
10+
CHF 47.66
19+
CHF 44.99
29+
CHF 44.45
39+
CHF 43.91
49+
CHF 43.38
74+
CHF 42.84
99+
CHF 40.17
199+
CHF 39.63
249+
CHF 39.09
499+
CHF 38.56
999+
CHF 37.49
Description
Description
|
SKF GEM..ES..2RS Series Spherical Plain Bearings: This series is classed as radial spherical plain bearings requiring maintenance. Comprising of sliding contact surfaces of steel against steel these spherical plain bearings are double lip sealed, they have an extended inner ring and are suited to installations where a spacer sleeve is used in the assembly either side of the inner ring. They require maintenance from time to time in the form of re-lubrication via an annular lubrication groove around its outer and inner rings. Dependent on installation design the lubricant may be passed through the housing or spindle directly into the bearing at any point around the groove which has small holes to direct the lubricant onto the mating surfaces. These are metric sized spherical plain bearings. The bearings are manganese phosphated and the sliding contact surface is then treated with a running-in lubricant. This reduces friction and wear during the running-in period. Application: Suitable for heavy static, shock or alternating loads. A characteristic of SKF steel / steel spherical plain bearings is the intentionally fractured outer ring enabling it to be sprung apart to insert the ball, thus care needs to be taken when mounting spherical plain bearings with a fractured or split outer ring, it is essential that the joint is positioned at 90 degrees to the direction of load. Benefits: Re-lubricate-able, cleanable. |
Equivalent: GE40HO2RS GEEM402RS
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 62mm
- Width:
- 38mm
Technical
Technical
| d | 40mm |
|---|---|
| D | 62mm |
| B | 38mm |
| C | 22mm |
| Max misalignment angle | 4 degrees |
| Dynamic load | 100 kN |
| Static load | 500 kN |
| dk | 53mm |
| d1 | 45mm |
| b | 3.9mm |
| b1 | 3.9mm |
| M | 2.5mm |
| r1 min | 0.6mm |
| r2 min | 1mm |
| da min | 44mm |
| da max | 45mm |
| Da max | 57.8mm |
| Da min | 54.5mm |
| ra max | 0.6mm |
| rb max | 1mm |
| Weight | 0.35 kg |
