SKU: GEZ014ES-SKF

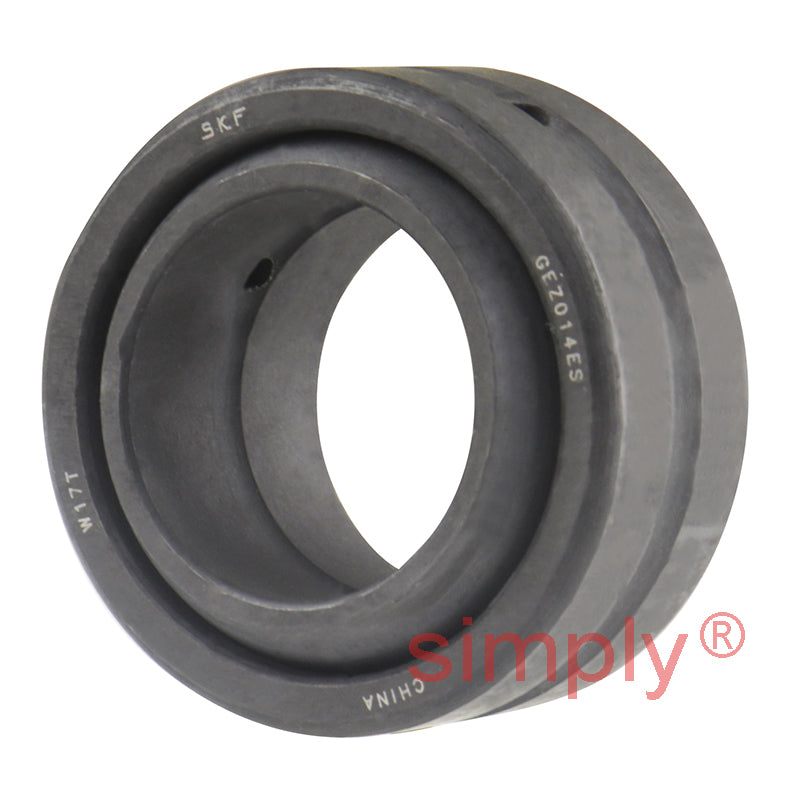

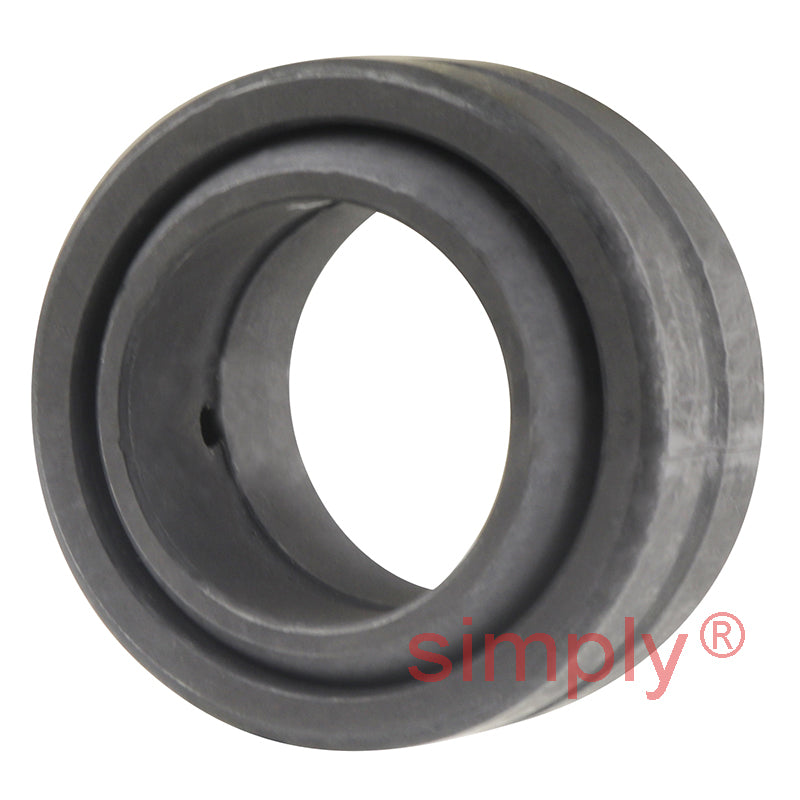

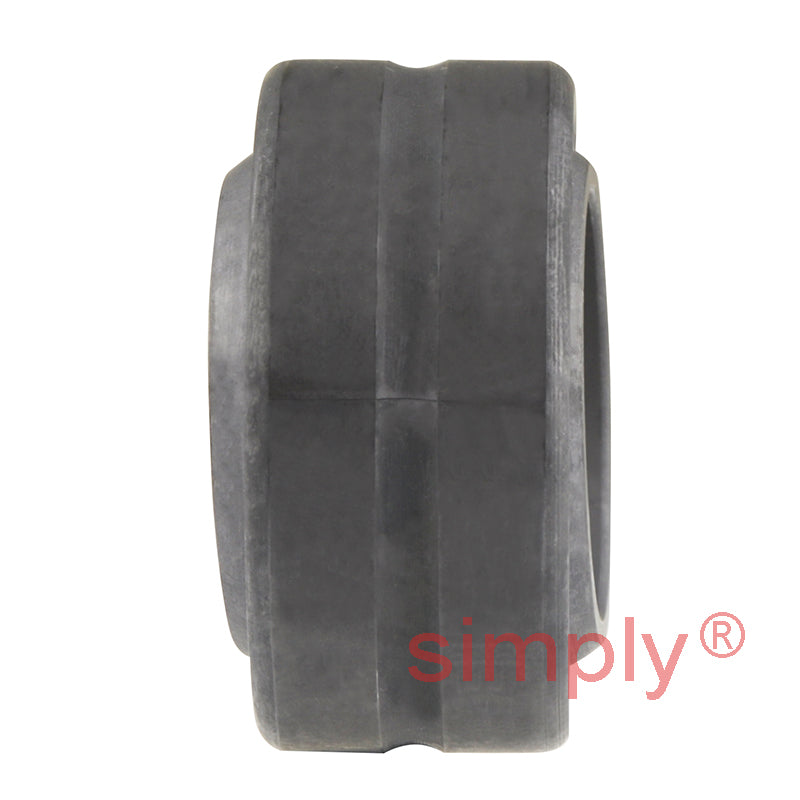

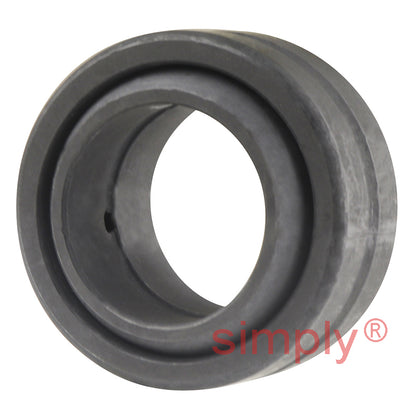

SKF GEZ014ES Spherical Plain Bearing 22.23x36.51x19.45x16.67mm
SKF GEZ014ES Spherical Plain Bearing 22.23x36.51x19.45x16.67mm
Regular price
CHF 25.00
ex VAT
Regular price
Sale price
CHF 25.00
ex VAT
Equivalent to: GE22ZO SBB14 GEZ22ES B14-L 8SF14
In stock
Price Break
10+
CHF 19.14
19+
CHF 18.06
29+
CHF 17.85
39+
CHF 17.63
49+
CHF 17.42
74+
CHF 17.20
99+
CHF 16.13
199+
CHF 15.91
249+
CHF 15.70
499+
CHF 15.48
999+
CHF 15.05
Description
Description
|
SKF GEZ..ES Series Spherical Plain Bearings: This series is classed as radial spherical plain bearings requiring maintenance. Comprising of sliding contact surfaces of steel against steel these spherical plain bearings are unsealed and require maintenance from time to time in the form of re-lubrication via an annular lubrication groove around its outer and inner rings. Dependent on installation design the lubricant may be passed through the housing or spindle directly into the bearing at any point around the groove which has small holes to direct the lubricant onto the mating surfaces. These are imperial sized spherical plain bearings. The bearings are manganese phosphated and the sliding contact surface is then treated with a running-in lubricant. This reduces friction and wear during the running-in period. Application: Suitable for heavy static, shock or alternating loads. A characteristic of SKF steel / steel spherical plain bearings is the intentionally fractured outer ring enabling it to be sprung apart to insert the ball, thus care needs to be taken when mounting spherical plain bearings with a fractured or split outer ring, it is essential that the joint is positioned at 90 degrees to the direction of load Benefits: Re-lubricate-able, cleanable. |
Equivalent: GE22ZO SBB14 GEZ22ES B14-L 8SF14
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Outside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Width:
- 19.45mm = 0.766 (49/64) inch
Technical
Technical
| d | 22.23mm = 7/8 inch |
|---|---|
| D | 36.51mm = 1-7/16 inch |
| B | 19.45mm = 49/64 inch |
| C | 16.67mm = 0.656 inch |
| Max misalignment angle | 6 degrees |
| Dynamic load | 42.5 kN |
| Static load | 127 kN |
| dk | 31.953mm = 1.258 inch |
| b | 3.2mm = 0.126 inch |
| b1 | 3mm = 0.118 inch |
| M | 2.5mm = 0.098 inch |
| r1 min | 0.3mm = 0.012 inch |
| r2 min | 1mm = 0.039 inch |
| da min | 24.2mm = 0.953 inch |
| da max | 25.4mm = 1.000 inch |
| Da max | 33mm = 1.299 inch |
| Da min | 30.4mm = 1.197 inch |
| ra max | 0.3mm = 0.012 inch |
| rb max | 1mm = 0.039 inch |
| Weight | 0.085 kg |
