SKU: GEZ100ES-2RS-SKF

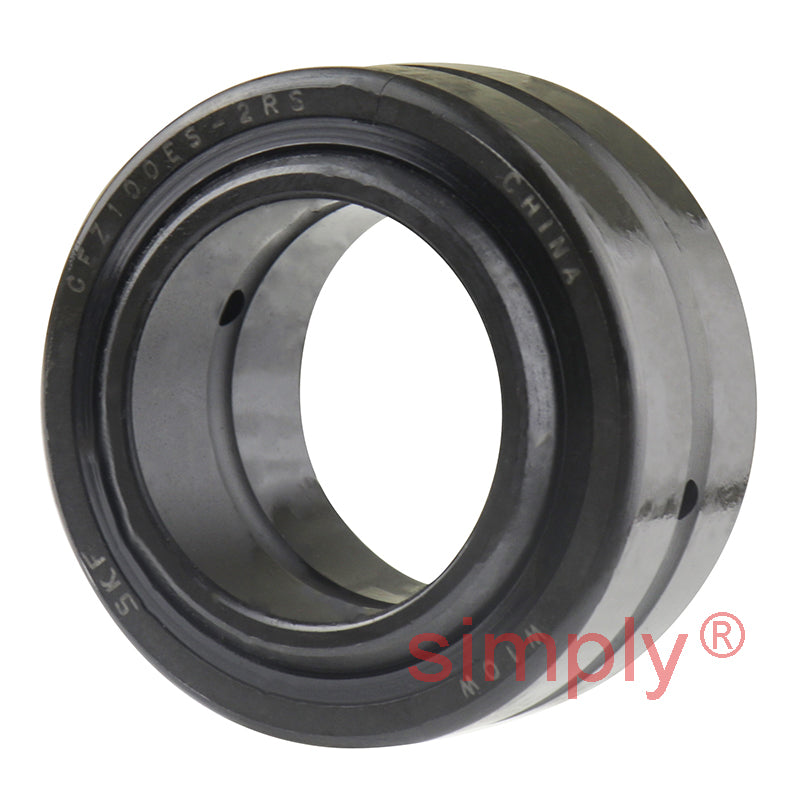

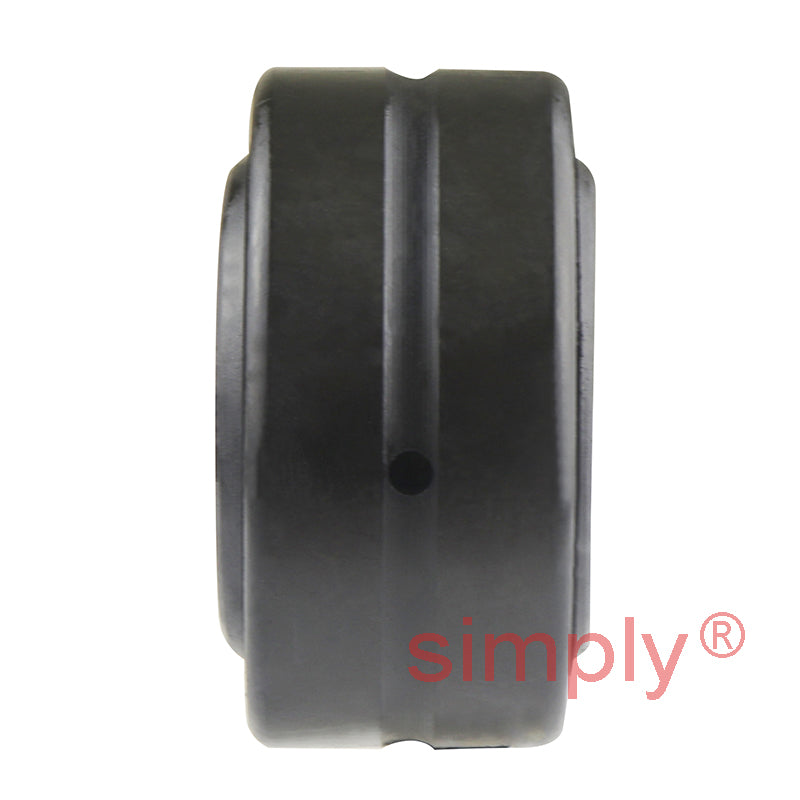

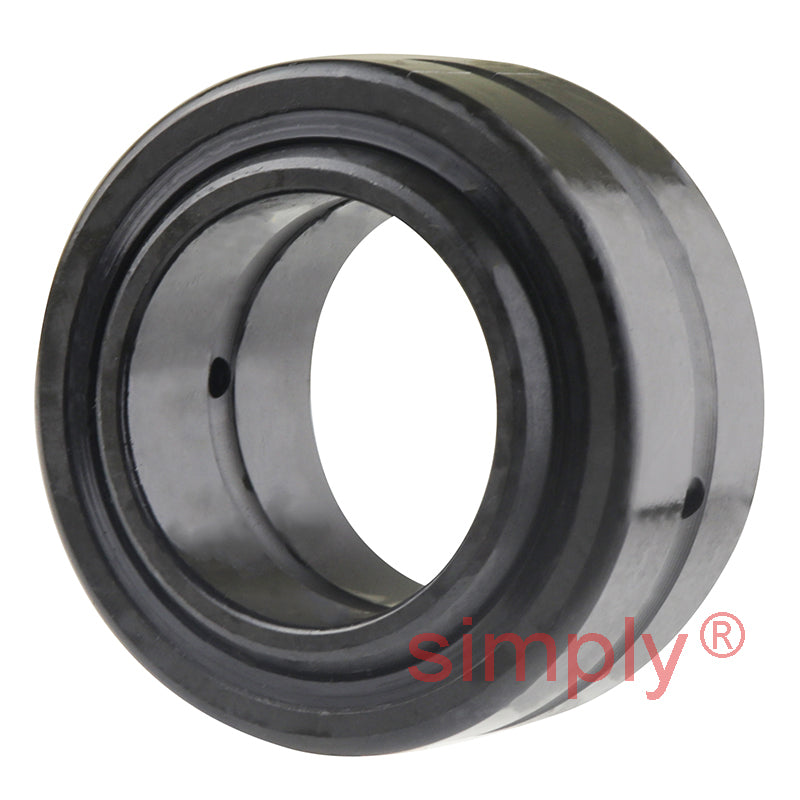

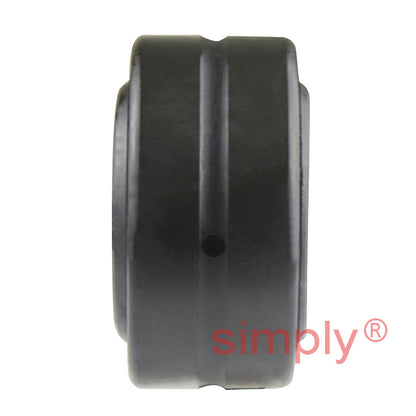

SKF GEZ100ES2RS Double Seal Spherical Plain Bearing 25.4x41.28x22.23x19.05mm
SKF GEZ100ES2RS Double Seal Spherical Plain Bearing 25.4x41.28x22.23x19.05mm
Regular price
CHF 39.00
ex VAT
Regular price
Sale price
CHF 39.00
ex VAT
Equivalent to: GE25ZO2RS SBB162RS GEZ25ES2RS B16-LSS 10SF16-TT
In stock
Price Break
10+
CHF 30.28
19+
CHF 28.58
29+
CHF 28.24
39+
CHF 27.90
49+
CHF 27.56
74+
CHF 27.22
99+
CHF 25.52
199+
CHF 25.18
249+
CHF 24.84
499+
CHF 24.50
999+
CHF 23.81
Description
Description
|
SKF GEZ..ES-2RS Series Spherical Plain Bearings: This series is classed as radial spherical plain bearings requiring maintenance. Comprising of sliding contact surfaces of steel against steel these spherical plain bearings are double lip sealed to prevent ingress of dirt and moisture and require maintenance from time to time in the form of re-lubrication via an annular lubrication groove around its outer and inner rings. Dependent on installation design the lubricant may be passed through the housing or spindle directly into the bearing at any point around the groove which has small holes to direct the lubricant onto the mating surfaces. These are imperial sized spherical plain bearings. The bearings are manganese phosphated and the sliding contact surface is then treated with a running-in lubricant. This reduces friction and wear during the running-in period. Application: Suitable for heavy static, shock or alternating loads. A characteristic of SKF steel / steel spherical plain bearings is the intentionally fractured outer ring enabling it to be sprung apart to insert the ball, thus care needs to be taken when mounting spherical plain bearings with a fractured or split outer ring, it is essential that the joint is positioned at 90 degrees to the direction of load Benefits: Re-lubricate-able, double sealed. |
Equivalent: GE25ZO2RS SBB162RS GEZ25ES2RS B16-LSS 10SF16-TT
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Width:
- 22.23mm = 0.875 (7/8) inch
Technical
Technical
| d | 25.4mm = 1 inch |
|---|---|
| D | 41.28mm = 1-5/8 inch |
| B | 22.23mm = 7/8 inch |
| C | 19.05mm = 0.750 inch |
| Max misalignment angle | 6 degrees |
| Dynamic load | 56 kN |
| Static load | 166 kN |
| dk | 36.5mm = 1.437 inch |
| b | 3.2mm = 0.126 inch |
| b1 | 3mm = 0.118 inch |
| M | 2.5mm = 0.098 inch |
| r1 min | 0.3mm = 0.012 inch |
| r2 min | 1mm = 0.039 inch |
| da min | 27.5mm = 1.083 inch |
| da max | 29mm = 1.142 inch |
| Da max | 37.7mm = 1.484 inch |
| Da min | 34.7mm = 1.366 inch |
| ra max | 0.3mm = 0.012 inch |
| rb max | 1mm = 0.039 inch |
| Weight | 0.12 kg |
