SKU: GEZ108ES-2RS-SKF

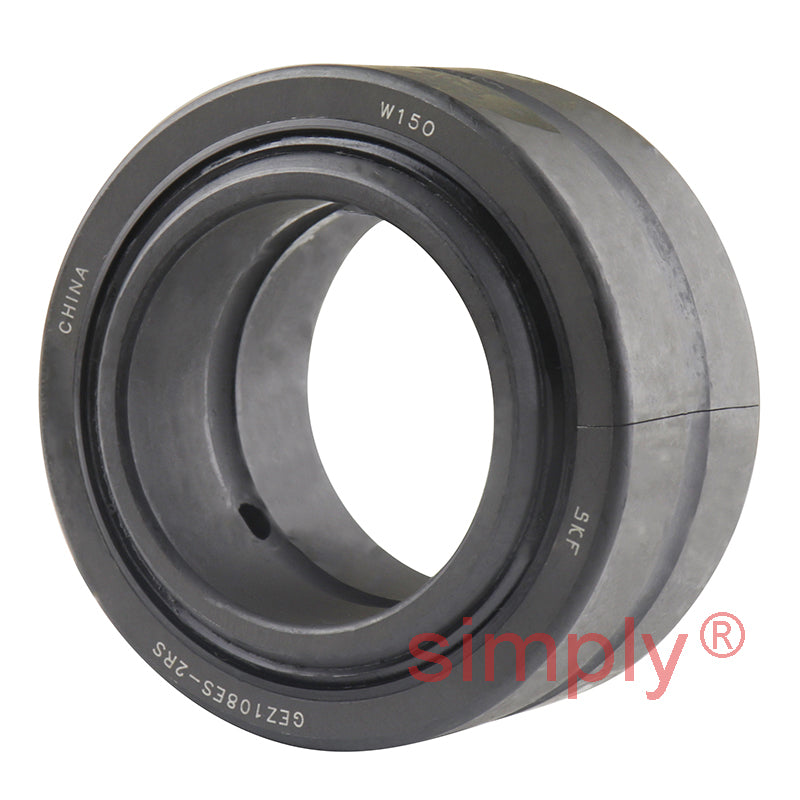

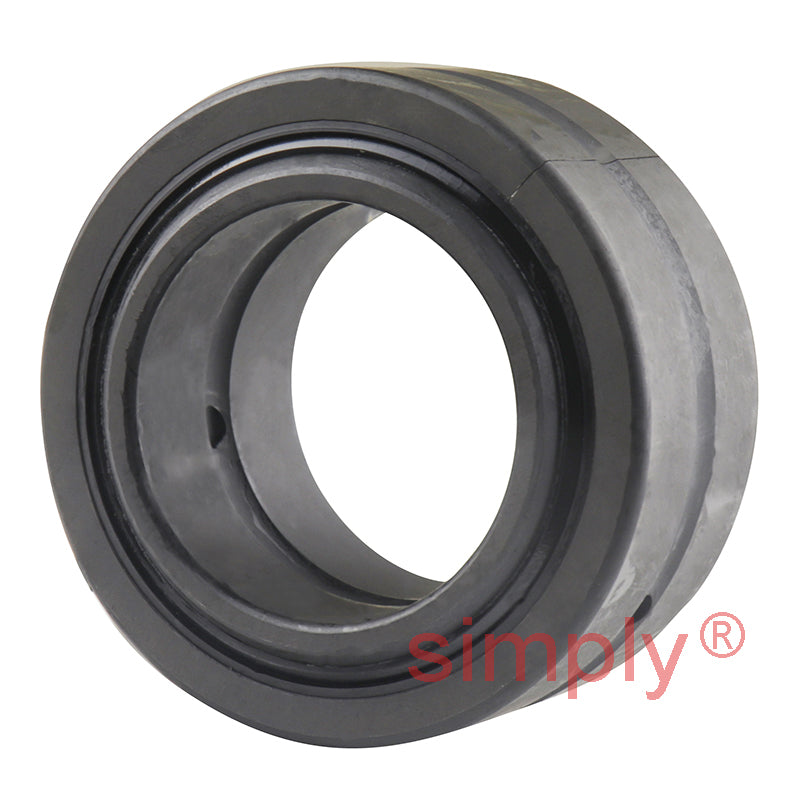

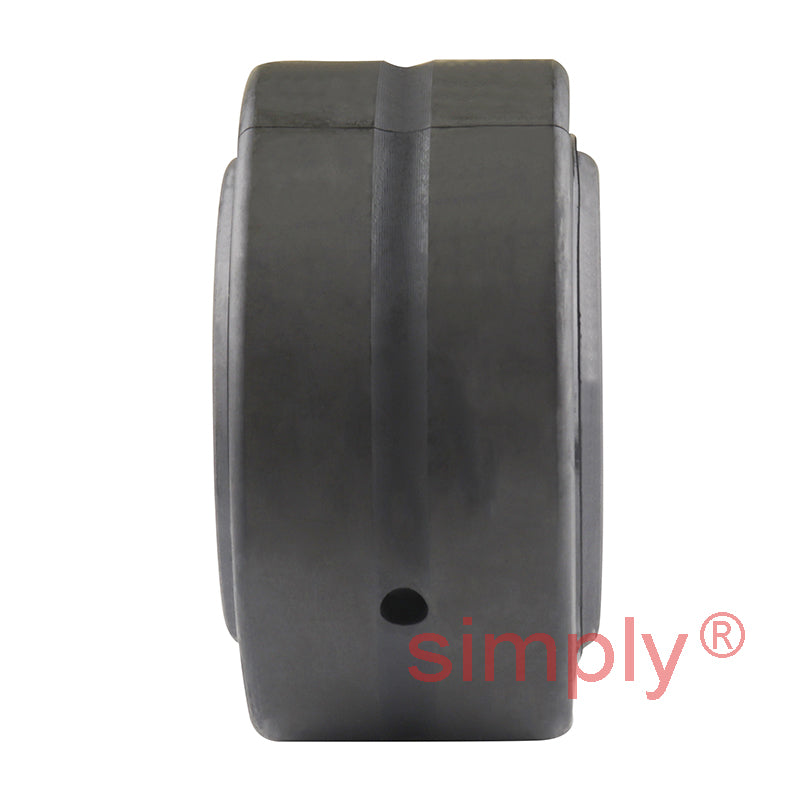

SKF GEZ108ES2RS Double Seal Spherical Plain Bearing 38.1x61.91x33.33x28.58mm
SKF GEZ108ES2RS Double Seal Spherical Plain Bearing 38.1x61.91x33.33x28.58mm
Regular price
CHF 63.00
ex VAT
Regular price
Sale price
CHF 63.00
ex VAT
Equivalent to: GE38ZO2RS SBB242RS GEZ38ES2RS B24-LSS 15SF24-TT
In stock
Price Break
10+
CHF 49.63
19+
CHF 46.84
29+
CHF 46.29
39+
CHF 45.73
49+
CHF 45.17
74+
CHF 44.61
99+
CHF 41.83
199+
CHF 41.27
249+
CHF 40.71
499+
CHF 40.15
999+
CHF 39.04
Description
Description
|
SKF GEZ..ES-2RS Series Spherical Plain Bearings: This series is classed as radial spherical plain bearings requiring maintenance. Comprising of sliding contact surfaces of steel against steel these spherical plain bearings are double lip sealed to prevent ingress of dirt and moisture and require maintenance from time to time in the form of re-lubrication via an annular lubrication groove around its outer and inner rings. Dependent on installation design the lubricant may be passed through the housing or spindle directly into the bearing at any point around the groove which has small holes to direct the lubricant onto the mating surfaces. These are imperial sized spherical plain bearings. The bearings are manganese phosphated and the sliding contact surface is then treated with a running-in lubricant. This reduces friction and wear during the running-in period. Application: Suitable for heavy static, shock or alternating loads. A characteristic of SKF steel / steel spherical plain bearings is the intentionally fractured outer ring enabling it to be sprung apart to insert the ball, thus care needs to be taken when mounting spherical plain bearings with a fractured or split outer ring, it is essential that the joint is positioned at 90 degrees to the direction of load Benefits: Re-lubricate-able, double sealed. |
Equivalent: GE38ZO2RS SBB242RS GEZ38ES2RS B24-LSS 15SF24-TT
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
- Width:
- 33.33mm = 1.312 (1-5/16) inch
Technical
Technical
| d | 38.1mm = 1-1/2 inch |
|---|---|
| D | 61.91mm = 2-7/16 inch |
| B | 33.33mm = 1-5/16 inch |
| C | 28.58mm = 1.125 inch |
| Max misalignment angle | 6 degrees |
| Dynamic load | 125 kN |
| Static load | 375 kN |
| dk | 54.737mm = 2.155 inch |
| b | 4.8mm = 0.189 inch |
| b1 | 5mm = 0.197 inch |
| M | 4mm = 0.157 inch |
| r1 min | 0.6mm = 0.024 inch |
| r2 min | 1mm = 0.039 inch |
| da min | 41.4mm = 1.630 inch |
| da max | 43.4mm = 1.709 inch |
| Da max | 58mm = 2.283 inch |
| Da min | 52mm = 2.047 inch |
| ra max | 0.6mm = 0.024 inch |
| rb max | 1mm = 0.039 inch |
| Weight | 0.42 kg |
