SKU: GEZ204ES-SKF

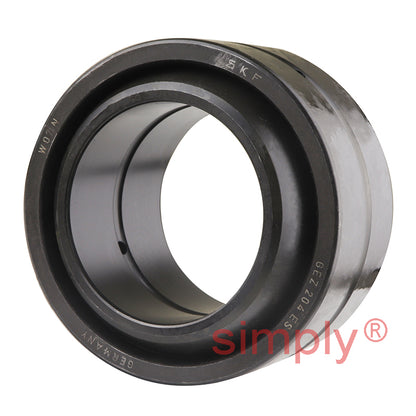

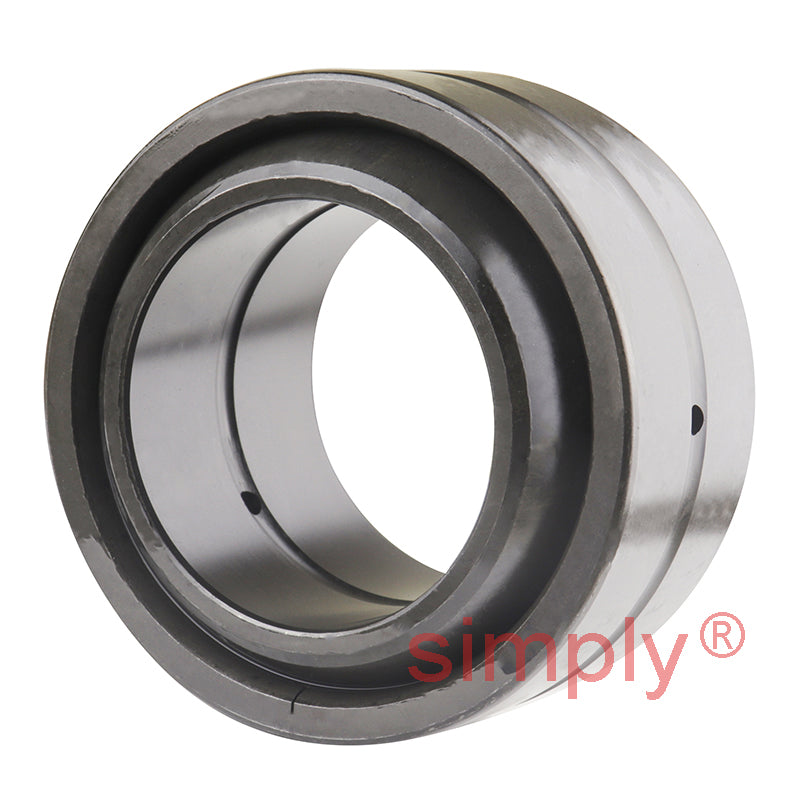

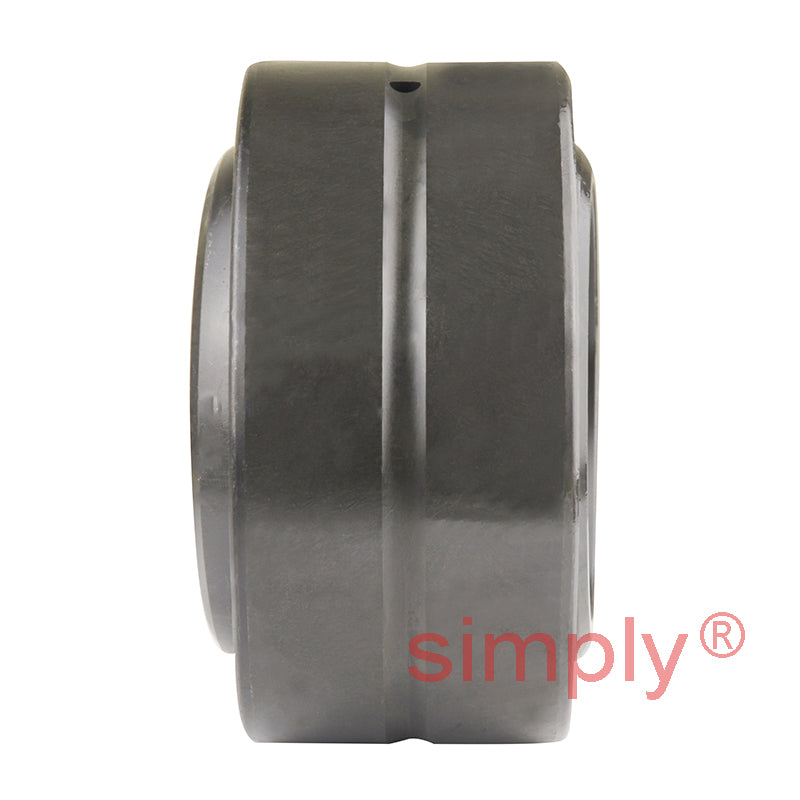

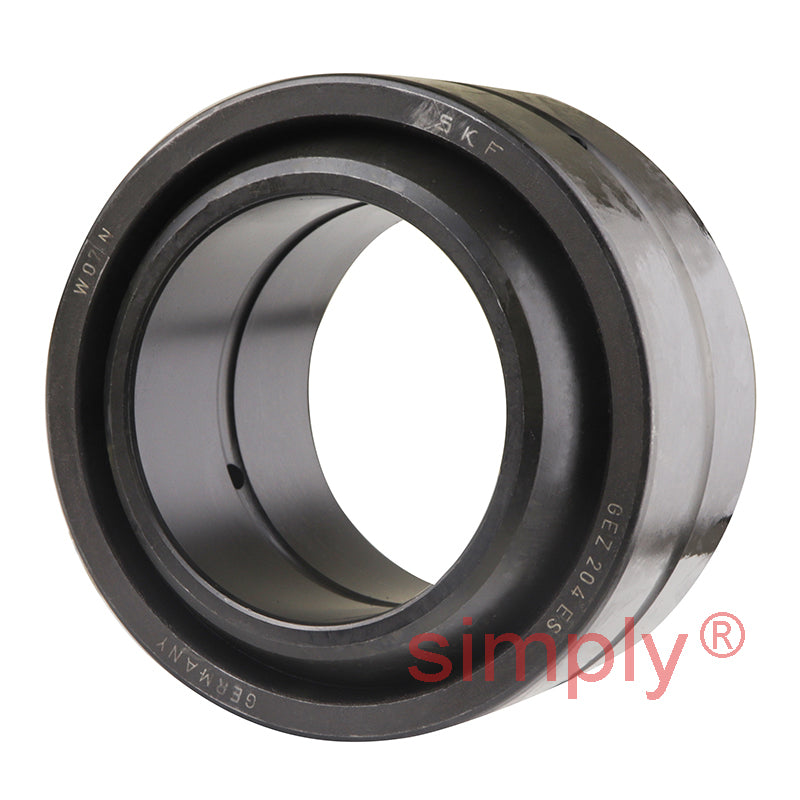

SKF GEZ204ES Spherical Plain Bearing 57.15x90.49x50.01x42.86mm
SKF GEZ204ES Spherical Plain Bearing 57.15x90.49x50.01x42.86mm
Regular price
CHF 72.00
ex VAT
Regular price
Sale price
CHF 72.00
ex VAT
Equivalent to: GE57ZO SBB36 GEZ57ES B36-L 22SF36
In stock
Price Break
10+
CHF 56.62
19+
CHF 53.44
29+
CHF 52.80
39+
CHF 52.17
49+
CHF 51.53
74+
CHF 50.90
99+
CHF 47.72
199+
CHF 47.08
249+
CHF 46.44
499+
CHF 45.81
999+
CHF 44.53
Description
Description
|
SKF GEZ..ES Series Spherical Plain Bearings: This series is classed as radial spherical plain bearings requiring maintenance. Comprising of sliding contact surfaces of steel against steel these spherical plain bearings are unsealed and require maintenance from time to time in the form of re-lubrication via an annular lubrication groove around its outer and inner rings. Dependent on installation design the lubricant may be passed through the housing or spindle directly into the bearing at any point around the groove which has small holes to direct the lubricant onto the mating surfaces. These are imperial sized spherical plain bearings. The bearings are manganese phosphated and the sliding contact surface is then treated with a running-in lubricant. This reduces friction and wear during the running-in period. Application: Suitable for heavy static, shock or alternating loads. A characteristic of SKF steel / steel spherical plain bearings is the intentionally fractured outer ring enabling it to be sprung apart to insert the ball, thus care needs to be taken when mounting spherical plain bearings with a fractured or split outer ring, it is essential that the joint is positioned at 90 degrees to the direction of load Benefits: Re-lubricate-able, cleanable. |
Equivalent: GE57ZO SBB36 GEZ57ES B36-L 22SF36
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Outside Diameter:
- 90.49mm = 3.563 (3-9/16) inch
- Width:
- 50.01mm = 1.969 (1-31/32) inch
Technical
Technical

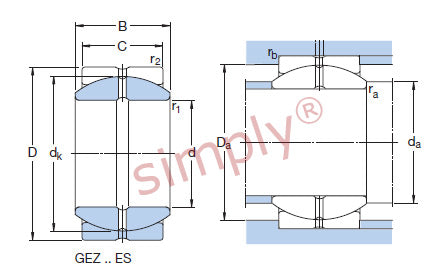

| d | 57.15mm = 2-1/4 inch |
|---|---|
| D | 90.49mm = 3-9/16 inch |
| B | 50.01mm = 1-31/32 inch |
| C | 42.86mm = 1.688 inch |
| Max misalignment angle | 6 degrees |
| Dynamic load | 280 kN |
| Static load | 850 kN |
| dk | 82.169mm = 3.235 inch |
| b | 5.7mm = 0.224 inch |
| b1 | 5mm = 0.197 inch |
| M | 4mm = 0.157 inch |
| r1 min | 0.6mm = 0.024 inch |
| r2 min | 1mm = 0.039 inch |
| da min | 61.7mm = 2.429 inch |
| da max | 65.2mm = 2.567 inch |
| Da max | 85.3mm = 3.358 inch |
| Da min | 78.1mm = 3.075 inch |
| ra max | 0.6mm = 0.024 inch |
| rb max | 1mm = 0.039 inch |
| Weight | 1.3 kg |
