SKU: GEZ208ES-SKF

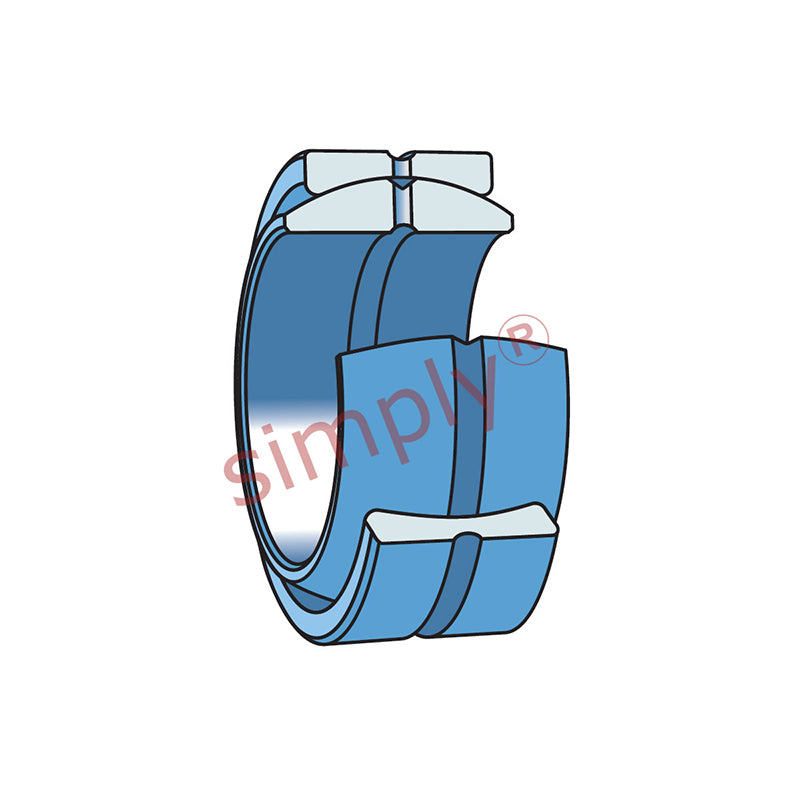

SKF GEZ208ES Spherical Plain Bearing 63.5x100.01x55.56x47.63mm
SKF GEZ208ES Spherical Plain Bearing 63.5x100.01x55.56x47.63mm
Regular price
CHF 153.00
ex VAT
Regular price
Sale price
CHF 153.00
ex VAT
Equivalent to: GE63ZO SBB40 GEZ63ES B40-L 25SF40
In stock
Price Break
10+
CHF 121.13
19+
CHF 114.32
29+
CHF 112.96
39+
CHF 111.60
49+
CHF 110.24
74+
CHF 108.88
99+
CHF 102.07
199+
CHF 100.71
249+
CHF 99.35
499+
CHF 97.99
999+
CHF 95.27
Description
Description
|
SKF GEZ..ES Series Spherical Plain Bearings: This series is classed as radial spherical plain bearings requiring maintenance. Comprising of sliding contact surfaces of steel against steel these spherical plain bearings are unsealed and require maintenance from time to time in the form of re-lubrication via an annular lubrication groove around its outer and inner rings. Dependent on installation design the lubricant may be passed through the housing or spindle directly into the bearing at any point around the groove which has small holes to direct the lubricant onto the mating surfaces. These are imperial sized spherical plain bearings. The bearings are manganese phosphated and the sliding contact surface is then treated with a running-in lubricant. This reduces friction and wear during the running-in period. Application: Suitable for heavy static, shock or alternating loads. A characteristic of SKF steel / steel spherical plain bearings is the intentionally fractured outer ring enabling it to be sprung apart to insert the ball, thus care needs to be taken when mounting spherical plain bearings with a fractured or split outer ring, it is essential that the joint is positioned at 90 degrees to the direction of load Benefits: Re-lubricate-able, cleanable. |
Equivalent: GE63ZO SBB40 GEZ63ES B40-L 25SF40
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Outside Diameter:
- 100.01mm = 3.937 (3-15/16) inch
- Width:
- 55.56mm = 2.187 (2-3/16) inch
Technical
Technical
| d | 63.5mm = 2-1/2 inch |
|---|---|
| D | 100.01mm = 3-15/16 inch |
| B | 55.56mm = 2-3/16 inch |
| C | 47.63mm = 1.875 inch |
| Max misalignment angle | 6 degrees |
| Dynamic load | 345 kN |
| Static load | 1040 kN |
| dk | 91.186mm = 3.590 inch |
| b | 9mm = 0.354 inch |
| b1 | 8mm = 0.315 inch |
| M | 6.5mm = 0.256 inch |
| r1 min | 0.6mm = 0.024 inch |
| r2 min | 1mm = 0.039 inch |
| da min | 68.3mm = 2.689 inch |
| da max | 72.3mm = 2.846 inch |
| Da max | 94.7mm = 3.728 inch |
| Da min | 86.6mm = 3.409 inch |
| ra max | 0.6mm = 0.024 inch |
| rb max | 1mm = 0.039 inch |
| Weight | 1.85 kg |
