SKU: GEZ400ES-2RS-SKF

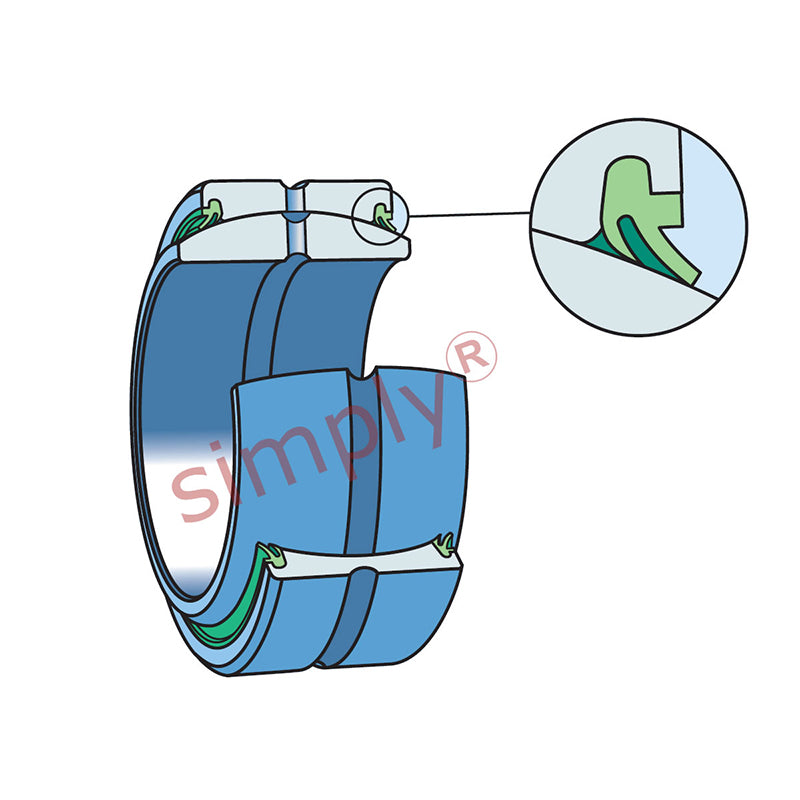

SKF GEZ400ES2RS Double Seal Spherical Plain Bearing 101.6x158.75x88.9x76.20mm
SKF GEZ400ES2RS Double Seal Spherical Plain Bearing 101.6x158.75x88.9x76.20mm
Regular price
CHF 697.00
ex VAT
Regular price
Sale price
CHF 697.00
ex VAT
Equivalent to: SBB642RS GEZ101ES2RS B64-LSS 40SF64-TT
In stock
Price Break
10+
CHF 555.52
19+
CHF 524.31
29+
CHF 518.07
39+
CHF 511.82
49+
CHF 505.58
74+
CHF 499.34
99+
CHF 468.13
199+
CHF 461.89
249+
CHF 455.65
499+
CHF 449.41
999+
CHF 436.92
Description
Description
|
SKF GEZ..ES-2RS Series Spherical Plain Bearings: This series is classed as radial spherical plain bearings requiring maintenance. Comprising of sliding contact surfaces of steel against steel these spherical plain bearings are double lip sealed to prevent ingress of dirt and moisture and require maintenance from time to time in the form of re-lubrication via an annular lubrication groove around its outer and inner rings. Dependent on installation design the lubricant may be passed through the housing or spindle directly into the bearing at any point around the groove which has small holes to direct the lubricant onto the mating surfaces. These are imperial sized spherical plain bearings. The bearings are manganese phosphated and the sliding contact surface is then treated with a running-in lubricant. This reduces friction and wear during the running-in period. Application: Suitable for heavy static, shock or alternating loads. A characteristic of SKF steel / steel spherical plain bearings is the intentionally fractured outer ring enabling it to be sprung apart to insert the ball, thus care needs to be taken when mounting spherical plain bearings with a fractured or split outer ring, it is essential that the joint is positioned at 90 degrees to the direction of load Benefits: Re-lubricate-able, double sealed. |
Equivalent: SBB642RS GEZ101ES2RS B64-LSS 40SF64-TT
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 101.6mm = 4 inch
- Outside Diameter:
- 158.75mm = 6.25 (6-1/4) inch
- Width:
- 88.9mm = 3.5 (3-1/2) inch
Technical
Technical
| d | 101.6mm = 4 inch |
|---|---|
| D | 158.75mm = 6-1/4 inch |
| B | 88.9mm = 3-1/2 inch |
| C | 76.20mm = 3.000 inch |
| Max misalignment angle | 6 degrees |
| Dynamic load | 900 kN |
| Static load | 2650 kN |
| dk | 146.05mm = 5.750 inch |
| b | 10.5mm = 0.413 inch |
| b1 | 10mm = 0.394 inch |
| M | 8mm = 0.315 inch |
| r1 min | 0.6mm = 0.024 inch |
| r2 min | 1mm = 0.039 inch |
| da min | 108mm = 4.252 inch |
| da max | 115.5mm = 4.547 inch |
| Da max | 152.5mm = 6.004 inch |
| Da min | 139mm = 5.472 inch |
| ra max | 0.6mm = 0.024 inch |
| rb max | 1mm = 0.039 inch |
| Weight | 7 kg |
