SKU: GEZ408ES-SKF

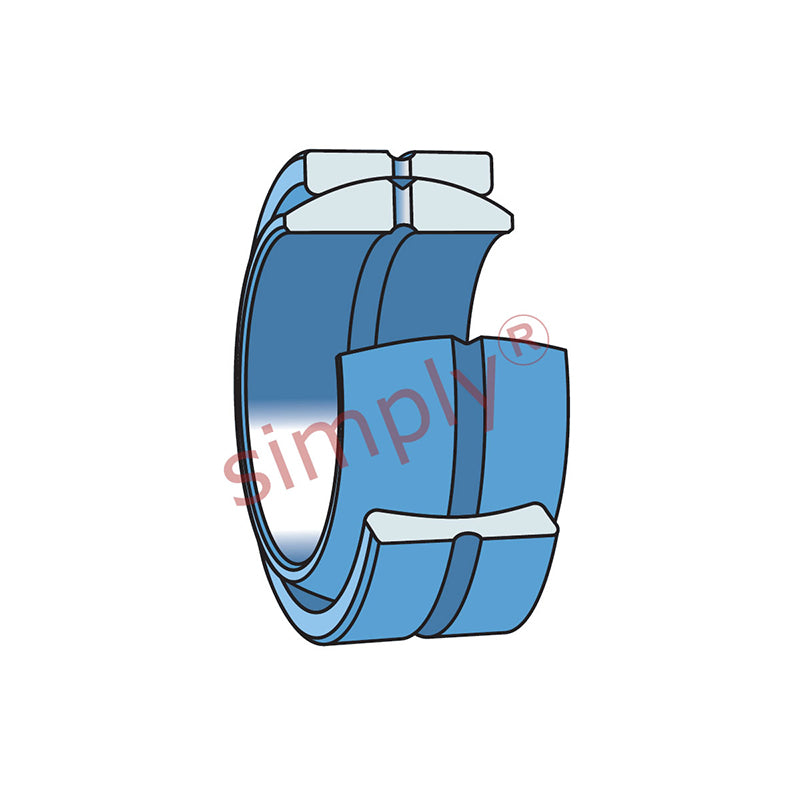

SKF GEZ408ES Spherical Plain Bearing 114.3x177.8x100.01x85.73mm
SKF GEZ408ES Spherical Plain Bearing 114.3x177.8x100.01x85.73mm
Regular price
CHF 839.00
ex VAT
Regular price
Sale price
CHF 839.00
ex VAT
Equivalent to: SBB72 GEZ114ES B72-9L 45SF72
In stock
Price Break
10+
CHF 667.92
19+
CHF 630.40
29+
CHF 622.90
39+
CHF 615.39
49+
CHF 607.89
74+
CHF 600.38
99+
CHF 562.86
199+
CHF 555.35
249+
CHF 547.85
499+
CHF 540.34
999+
CHF 525.33
Description
Description
|
SKF GEZ..ES Series Spherical Plain Bearings: This series is classed as radial spherical plain bearings requiring maintenance. Comprising of sliding contact surfaces of steel against steel these spherical plain bearings are unsealed and require maintenance from time to time in the form of re-lubrication via an annular lubrication groove around its outer and inner rings. Dependent on installation design the lubricant may be passed through the housing or spindle directly into the bearing at any point around the groove which has small holes to direct the lubricant onto the mating surfaces. These are imperial sized spherical plain bearings. The bearings are manganese phosphated and the sliding contact surface is then treated with a running-in lubricant. This reduces friction and wear during the running-in period. Application: Suitable for heavy static, shock or alternating loads. A characteristic of SKF steel / steel spherical plain bearings is the intentionally fractured outer ring enabling it to be sprung apart to insert the ball, thus care needs to be taken when mounting spherical plain bearings with a fractured or split outer ring, it is essential that the joint is positioned at 90 degrees to the direction of load Benefits: Re-lubricate-able, cleanable. |
Equivalent: SBB72 GEZ114ES B72-9L 45SF72
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 114.3mm = 4.5 (4-1/2) inch
- Outside Diameter:
- 177.8mm = 7 inch
- Width:
- 100.01mm = 3.937 (3-15/16) inch
Technical
Technical
| d | 114.3mm = 4-1/2 inch |
|---|---|
| D | 177.8mm = 7 inch |
| B | 100.01mm = 3-15/16 inch |
| C | 85.73mm = 3.375 inch |
| Max misalignment angle | 6 degrees |
| Dynamic load | 1120 kN |
| Static load | 3400 kN |
| dk | 164.465mm = 6.475 inch |
| b | 11mm = 0.433 inch |
| b1 | 10mm = 0.394 inch |
| M | 8mm = 0.315 inch |
| r1 min | 1mm = 0.039 inch |
| r2 min | 1.1mm = 0.043 inch |
| da min | 122.5mm = 4.823 inch |
| da max | 130.5mm = 5.138 inch |
| Da max | 171mm = 6.732 inch |
| Da min | 156.5mm = 6.161 inch |
| ra max | 1mm = 0.039 inch |
| rb max | 1mm = 0.039 inch |
| Weight | 9.8 kg |
