SKU: GFM-283239-20

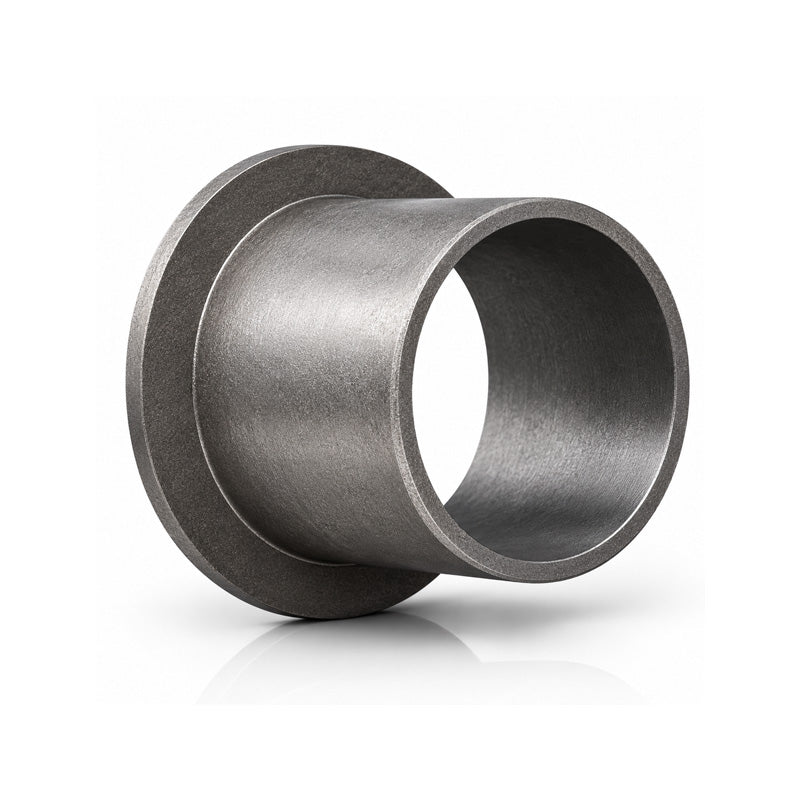

Iglidur GFM28323920 Plastic Flanged Bush 28x32x20mm
Iglidur GFM28323920 Plastic Flanged Bush 28x32x20mm
Regular price
CHF 4.82
ex VAT
Regular price
Sale price
CHF 4.82
ex VAT
In stock
Price Break
5+
CHF 3.37
10+
CHF 2.89
20+
CHF 2.65
50+
CHF 2.41
100+
CHF 1.93
500+
CHF 1.69
1000+
CHF 1.45
Couldn't load pickup availability
Description
Description
IGUS Iglidur® GFM Series Plastic Bush Bearing: Made from plastic, these bush style plastic bearings cover an extremely wide range of different requirements. The material is ideal for universal applications. Typical applications include medium to high loads, medium surface speeds and medium temperatures. iglidur® GFM performs exceedingly well in all technical disciplines and is the classic all-rounder, primarily with respect to the overall general, mechanical, thermal and tribological specifications.
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 28mm
- Outside Diameter:
- 32mm
- Width:
- 20mm
Technical
Technical
| Inside Diameter d1 | 28mm |
|---|---|
| Outside Diameter d2 | 32mm |
| Length b1 | 20mm |
| Chamfer f | 0.8mm |
| d1 Tolerance* | +0.040 +0.124 |
| Thickness* | <1mm: chamfer = 20deg |
| d3 | 39mm |
| Flange Thickness b2 | 2mm |
| Temperature Min/Max | -40/+130 degC |
