SKU: GIRS08-FLURO

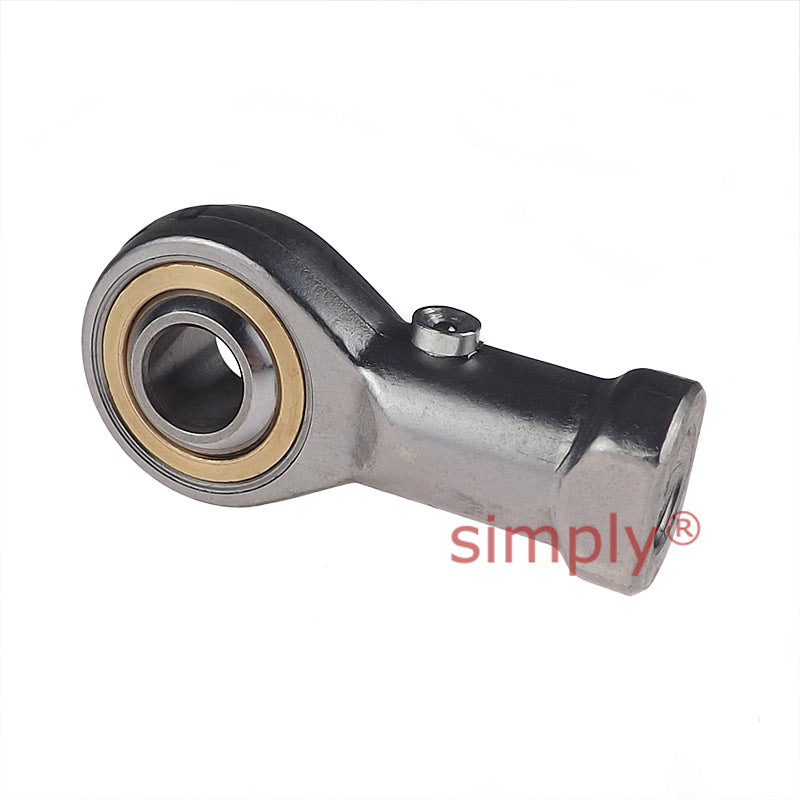

Fluro GIRS08 Right Hand Stainless Steel / Bronze Female Plain Rod End M8 Thread
Fluro GIRS08 Right Hand Stainless Steel / Bronze Female Plain Rod End M8 Thread
Regular price
CHF 43.37
ex VAT
Regular price
Sale price
CHF 43.37
ex VAT
In stock
Price Break
10+
CHF 38.60
19+
CHF 36.43
29+
CHF 36.00
39+
CHF 35.56
49+
CHF 35.13
74+
CHF 34.70
99+
CHF 32.53
199+
CHF 32.09
249+
CHF 31.66
499+
CHF 31.23
999+
CHF 30.36
Couldn't load pickup availability
Description
Description
Fluro GIRS Series Stainless Steel / Bronze Maintenance Required Female Plain Rod Ends: Rod Ends with female thread made from stainless steel, regreasable through grease nipple in housing. For use in corrosive environments.
Benefits: Grease nipple for easy re-greasing
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M8
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Thread Length:
- 8mm
- Inside Diameter:
- 8mm
- Material:
- Stainless Steel / Bronze
Technical
Technical
| Bore Size D | 8mm |
|---|---|
| B | 12mm |
| M | 9mm |
| A | 24mm |
| F | 36mm |
| L | 48mm |
| K | 16mm |
| J | 12.5mm |
| O | 10.4mm |
| SW | 13mm |
| Thread Size G | M8 |
| GL | 16mm |
| Static Load Co | 20.7kN |
| Dynamic Load | 7.1kN |
| Limiting Speed | 1200rev/min |
| Approx weight | 0.046kg |
