SKU: GIXS12-FLURO

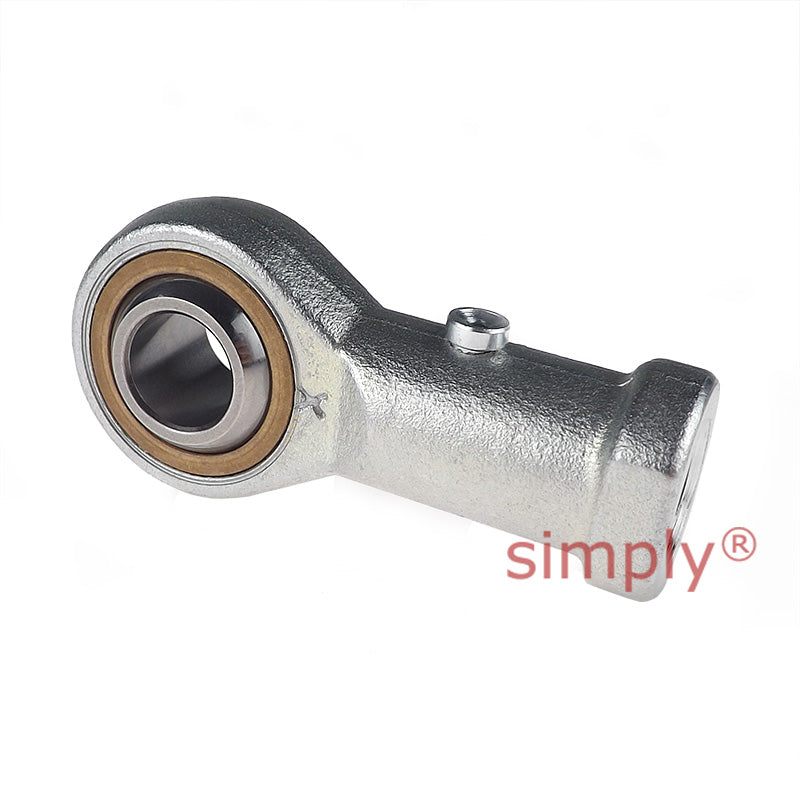

Fluro GIXS12 Right Hand Steel / Bronze Female Plain Rod End M12 Thread

Name: Fluro GIXS12 Right Hand Steel / Bronze Female Plain Rod End M12 Thread
Brand: Fluro
SKU: GIXS12-FLURO
Price: 44.00 CHF
Availability: InStock

CHF 44.00 ex VAT

Sale Sold out

In stock

Price Break

3+ CHF 34.41

5+ CHF 32.48

9+ CHF 32.09

19+ CHF 31.70

49+ CHF 31.32

74+ CHF 30.93

99+ CHF 29.00

199+ CHF 28.61

249+ CHF 28.22

499+ CHF 27.84

999+ CHF 27.06

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Fluro GIXS Series Steel / Bronze Maintenance Required Female Plain Rod Ends: Rod Ends with female thread made from heat-treated steel, zinc plated and regreasable through a grease nipple in housing. Especially suitable for high pressure and tension loads.
Benefits: Grease nipple for easy re-greasing

Brand / Quality:: Fluro - High Quality
Thread Size:: M12
Thread M / F:: Female
Thread Direction:: Right Hand
Thread Length:: 12mm
Inside Diameter:: 12mm
Material:: Steel / Bronze

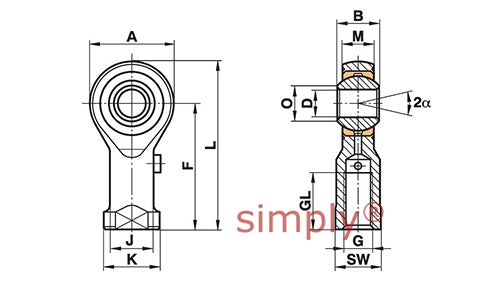

Technical

Bore Size D	12mm
B	16mm
M	12mm
A	32mm
F	50mm
L	66mm
K	22mm
J	17.5mm
O	15.4mm
SW	19mm
Thread Size G	M12
GL	22mm
Static Load Co	42kN
Dynamic Load	13.3kN
Limiting Speed	860rev/min
Approx weight	0.115kg
