SKU: GLE20-KRR-B-INA

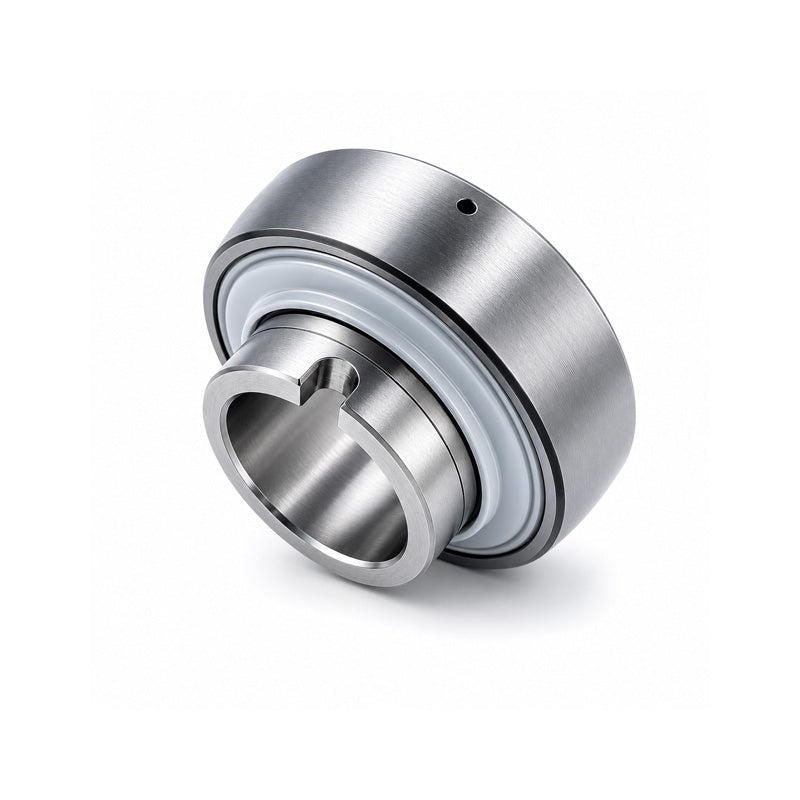

INA GLE20XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 20x47x34.1mm
INA GLE20XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 20x47x34.1mm
Regular price
CHF 40.00
ex VAT
Regular price
Sale price
CHF 40.00
ex VAT
In stock
Price Break
3+
CHF 31.69
5+
CHF 29.91
10+
CHF 29.56
15+
CHF 29.20
20+
CHF 28.84
30+
CHF 28.49
40+
CHF 26.71
50+
CHF 26.35
60+
CHF 26.00
75+
CHF 25.64
100+
CHF 24.93
Description
Description
|
INA GLE..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals with PTFE seal lips and a drive slot in the inner ring. These non-locating bearings are to be used at low speeds and loads to compensate for thermal elongation of the shaft. Due to the slot, they are easy to locate in a radial direction. Rotation is prevented by a drive pin on the shaft or a set collar with a pin. These bearings are suitable for drawn shafts up to grade h7. The outer ring has two lubrication holes as standard. Inner rings up to a bore diameter of 60mm have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -40 deg C to +180 deg C. Benefits: Can be re-lubricated, compensation of misalignment, wide temperature range. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 34.1mm
Technical
Technical
| d | 20mm |
|---|---|
| Dsp | 47mm |
| B | 34.1mm |
| b | 7mm |
| C | 14mm |
| C2 | 16.6mm |
| Ca | 4mm |
| D1 | 37.4mm |
| d1 | 27.6mm |
| N | 7mm |
| S | 15.6mm |
| Dynamic load Cr | 12800 N |
| Static load C0r | 6600 N |
| Weight | 0.15 kg |
