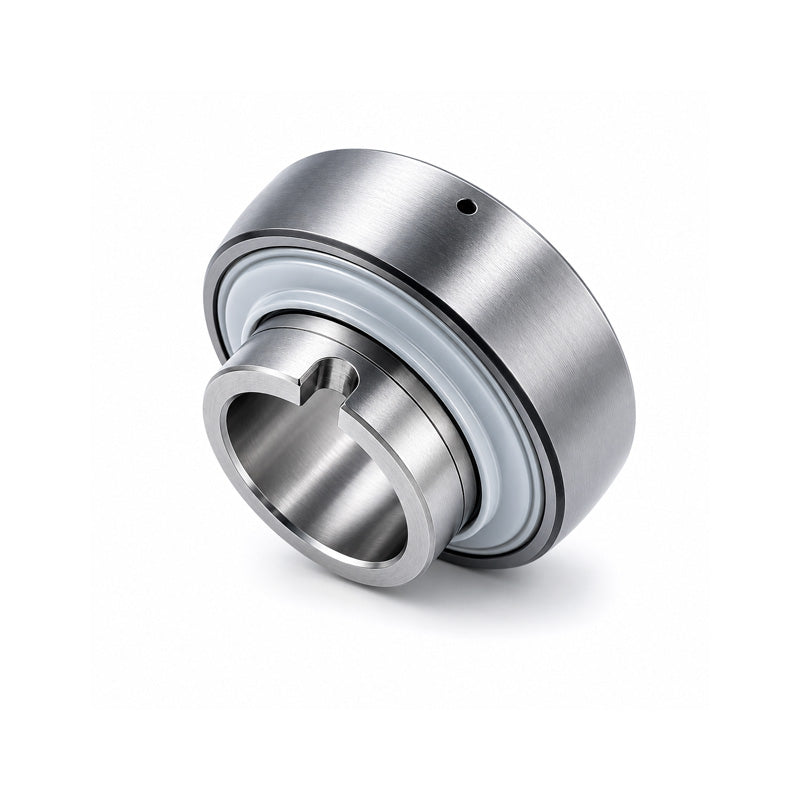

INA GLE60XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 60x110x61.9mm
INA GLE60XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 60x110x61.9mm
Regular price
CHF 155.00
ex VAT
Regular price
Sale price
CHF 155.00
ex VAT
In stock
Price Break
3+
CHF 123.35
5+
CHF 116.42
10+
CHF 115.03
15+
CHF 113.64
20+
CHF 112.26
30+
CHF 110.87
40+
CHF 103.94
50+
CHF 102.56
60+
CHF 101.17
75+
CHF 99.78
100+
CHF 97.01
Description
Description
|
INA GLE..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals with PTFE seal lips and a drive slot in the inner ring. These non-locating bearings are to be used at low speeds and loads to compensate for thermal elongation of the shaft. Due to the slot, they are easy to locate in a radial direction. Rotation is prevented by a drive pin on the shaft or a set collar with a pin. These bearings are suitable for drawn shafts up to grade h7. The outer ring has two lubrication holes as standard. Inner rings up to a bore diameter of 60mm have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -40 deg C to +180 deg C. Benefits: Can be re-lubricated, compensation of misalignment, wide temperature range. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Width:
- 61.9mm
Technical
Technical
| d | 60mm |
|---|---|
| Dsp | 110mm |
| B | 61.9mm |
| b | 9mm |
| C | 24mm |
| C2 | 29mm |
| Ca | 7.2mm |
| D1 | 95.9mm |
| d1 | 76.5mm |
| N | 12mm |
| S | 24.6mm |
| Dynamic load Cr | 52000 N |
| Static load C0r | 36000 N |
| Weight | 1.46 kg |
