SKU: GLE70-KRR-B-INA

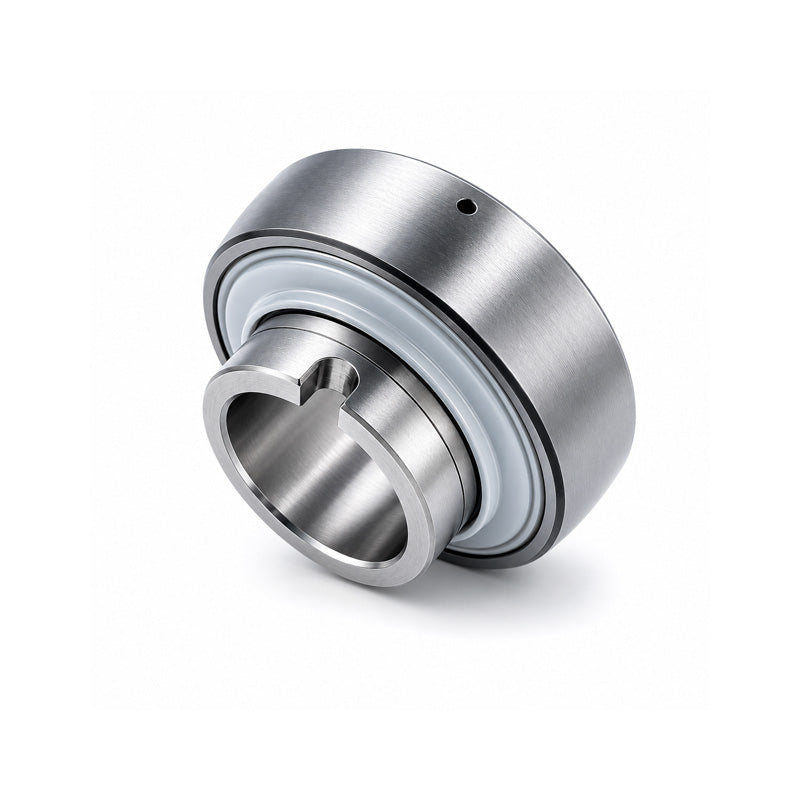

INA GLE70XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 70x125x68.2mm
INA GLE70XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 70x125x68.2mm
Regular price
CHF 209.00
ex VAT
Regular price
Sale price
CHF 209.00
ex VAT
In stock
Price Break
3+
CHF 166.51
5+
CHF 157.16
10+
CHF 155.28
15+
CHF 153.41
20+
CHF 151.54
30+
CHF 149.67
40+
CHF 140.32
50+
CHF 138.45
60+
CHF 136.58
75+
CHF 134.70
100+
CHF 130.96
Description
Description
|
INA GLE..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals with PTFE seal lips and a drive slot in the inner ring. These non-locating bearings are to be used at low speeds and loads to compensate for thermal elongation of the shaft. Due to the slot, they are easy to locate in a radial direction. Rotation is prevented by a drive pin on the shaft or a set collar with a pin. These bearings are suitable for drawn shafts up to grade h7. The outer ring has two lubrication holes as standard. Inner rings up to a bore diameter of 60mm have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -40 deg C to +180 deg C. Benefits: Can be re-lubricated, compensation of misalignment, wide temperature range. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 125mm
- Width:
- 68.2mm
Technical
Technical
| d | 70mm |
|---|---|
| Dsp | 125mm |
| B | 68.2mm |
| b | 9mm |
| C | 28mm |
| C2 | 32mm |
| Ca | 8.9mm |
| D1 | 109mm |
| d1 | 85.2mm |
| N | 12mm |
| S | 27mm |
| Dynamic load Cr | 62000 N |
| Static load C0r | 44000 N |
| Weight | 1.9 kg |
