SKU: GNE100-KRR-B-INA

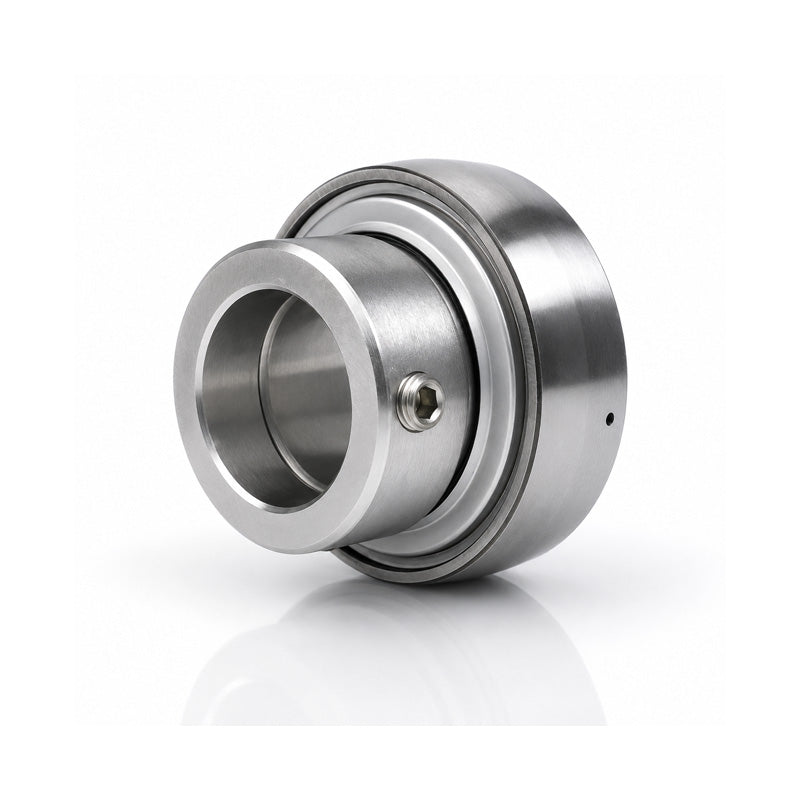

INA GNE100XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Eccentric Collar 100x215x109.4mm
INA GNE100XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Eccentric Collar 100x215x109.4mm
Regular price
CHF 660.00
ex VAT
Regular price
Sale price
CHF 660.00
ex VAT
In stock
Price Break
3+
CHF 525.27
5+
CHF 495.76
10+
CHF 489.86
15+
CHF 483.96
20+
CHF 478.05
30+
CHF 472.15
40+
CHF 442.64
50+
CHF 436.74
60+
CHF 430.84
75+
CHF 424.94
100+
CHF 413.13
Description
Description
|
INA GNE..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings of the bearings up to 60mm inside diameter, and locking collar in general, have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 215mm
- Width:
- 109.4mm
Technical
Technical
| d | 100mm |
|---|---|
| Dsp | 215mm |
| B1 | 109.4mm |
| B | 86mm |
| C | 49mm |
| C2 | 59.4mm |
| Ca | 16.7mm |
| D1 | 182.8mm |
| d1 | 137.1mm |
| d3 max | 145mm |
| S | 39.5mm |
| W | 6mm |
| Dynamic load Cr | 174000 N |
| Static load C0r | 140000 N |
| Weight | 11.41 kg |
